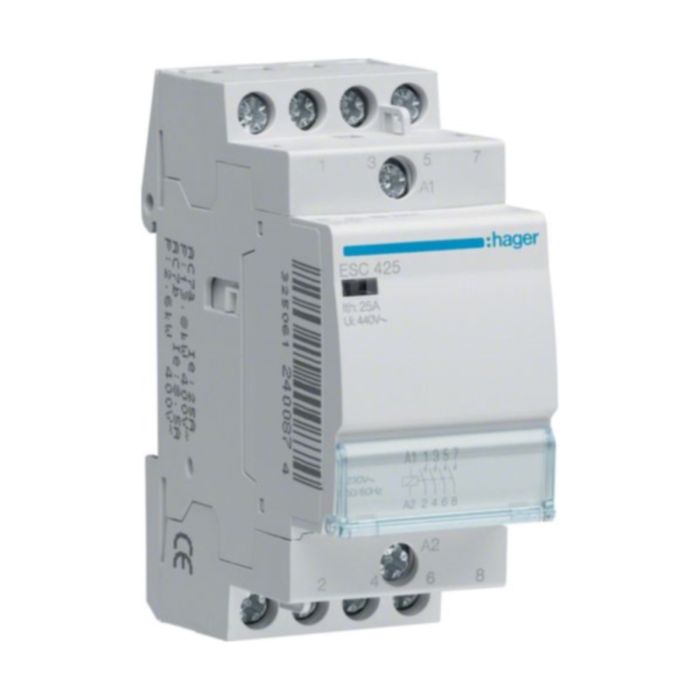

Hager ESC425 25A DIN Rail Contactor 4NO
A 4-Pole Contactor with screw connection.
- Standard Contactors - For the remote switching and control of power circuits (25A-63A AC1)
- The choice of contactor depends upon a number of parameters, e.g. the nature of the supply, the power it is switching, the characteristics of the load, the control voltage required, number of operations
- All contactor ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating
- The use of LZ060 (heat dissipation inserts) between all contactors installed or between contactors and adjacent devices is required.
- Options: Contact choice Normally open (NO) - Normally closed (NC)
- All contactors will accept auxiliary, ESC080 contact.
Stock available Next working day
SKU
HG-ESC425
£37.64 £45.17
Product Downloads
Product Categories
| SKU | HG-ESC425 |
|---|---|
| Manufacturer Part Code | ESC425 |
| Ingress Protection | Other |
| Width (mm) | 35.00 mm |
| Standards | EN 61095 NF VDE IMQ KEMA RMC/CCC |
| Current Rating | 25A |
| Voltage | 230V |
| Is on Sale | No |
| Switchgear | Description | Product | Contactor | |
| Switchgear | Description | Product Type | 4NO | |
| Switchgear | Description | Product | Contactor | |
| Switchgear | Description | Qualifier | Standard | |
| Switchgear | Features | Ingress Protection (EF005474) | Other | |
| Switchgear | Features | Switch Position | 4NO | |
| Switchgear | Features | Terminal Type | Screw | |
| Switchgear | General | Standards | EN 61095 NF VDE IMQ KEMA RMC/CCC | |
| Switchgear | Technical Data | Rated Current | 25 A | |
| Switchgear | Technical Data | Rated Short Circuit Withstand Current | 3 Kiloampere rms kA |
