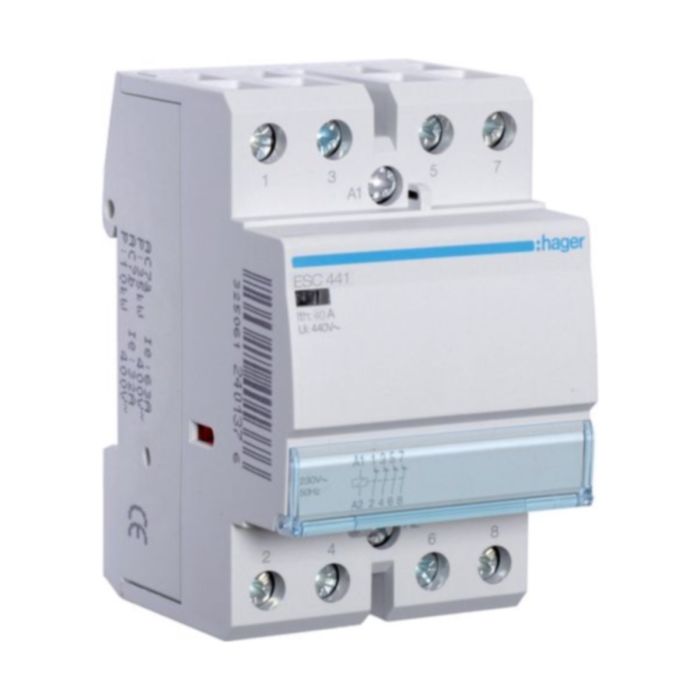

Hager ESC441 Contactor 4NC 40A 230V
- Standard Contactors - For the remote switching and control of power circuits (25A-63A AC1)
- The choice of contactor depends upon a number of parameters, e.g. the nature of the supply, the power it is switching, the characteristics of the load, the control voltage required, number of operations
- All contactor ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating
- The use of LZ060 (heat dissipation inserts) between all contactors installed or between contactors and adjacent devices is required.
- Options: Contact choice Normally open (NO) - Normally closed (NC)
- All contactors will accept auxiliary, ESC080 contact.
UK Delivery:
- Orders over £150 excluding VAT – FREE DELIVERY
- Orders under £150 excluding VAT – Delivery £7.50 + VAT
A very small number of large, heavy items may attract an additional charge. This charge is calculated based on the length/weight. Depending on your area, there will usually be a carriage-paid order value threshold where FREE delivery can still be attained.
Same Day Despatch On In-Stock Items:
We despatch in-stock items on the same working day when they are ordered before 3 PM GMT.
Delivery Charges for Length Items (UK Mainland):
- 1-2M Length Items: Free delivery to UK Mainland on orders over £500; for orders under £500, delivery is charged at £12.50 + VAT.
- 2M+ Length Items: Free delivery to UK Mainland on orders over £800; for orders under £800, delivery is charged at £15.00 + VAT.
- Pallet Delivery: For items requiring pallet delivery, free delivery is available for UK Mainland orders over £3000; for orders under £3000, a £50 delivery charge applies.
Delivery Charges for Scottish Highlands, Northern Ireland, and Channel Isles:
- Parcels: £20 + VAT delivery charge.
- 1-2M Length Items: £35 + VAT delivery charge.
- 2M+ Length Items: £55 + VAT delivery charge.
- Pallet Delivery: £120 + VAT delivery charge.
No free delivery is available for these regions.
If You Have a Deadline:
Out-of-stock items can take up to the recommended Delivery Time, which you can find on every product page. We will notify you if they are likely to take longer than this. If you have a deadline, please contact us by email or phone. We will work with you to arrange a better-suited delivery time or date.
Next Working Day:
All in-stock items are despatched via traceable and insured carriers on a next-day service. If certain items state a longer delivery time, please contact us as we can often arrange next-day delivery for most items at an additional cost where applicable.
NON-Stock Items:
Any items that are not stock items will be ordered and sent directly from our suppliers. All manufacturers we use are highly recommended and despatch their products via traceable and insured carriers. These items may take longer than the expected delivery time, but we will notify you in advance if this is likely to occur.
Received Damaged:
If any items are received damaged in transit and require a replacement or refund, please notify us verbally or in writing within 48 hours of delivery. Ensure that clear photographs are provided showing both the packaging—particularly any damage to it—and the damaged item(s). This will help us process the correct paperwork for a replacement or refund with minimal delay.
SKU | HG-ESC441 |
---|---|
Manufacturer Part Code | ESC441 |
Colour | White |
Material | Plastic |
Mounting Method | Clip-On/DIN Rail |
Depth (mm) | 60.00 mm |
Height (mm) | 85.00 mm |
Width (mm) | 54.00 mm |
Standards | EN 61095 |
Current Rating | 40A |
Voltage | 400V |
Is on Sale | No |
Modular Control Devices | Description | Product | Contactor | |
Modular Control Devices | Description | Product Type | 4NC | |
Modular Control Devices | Description | Product | Contactor | |
Modular Control Devices | Dimensions | Width (EF008808) | 54 mm | |
Modular Control Devices | Features | Mounting (EF000003) | Clip-On/DIN Rail | |
Modular Control Devices | Features | Number of Modules | 3 | |
Modular Control Devices | Features | Number of Poles | 4P | |
Modular Control Devices | Features | Operating Durability | 30000 Cyc | |
Modular Control Devices | Features | Pole Configuration | 4NC | |
Modular Control Devices | Features | Rated Voltage | 400 V | |
Modular Control Devices | Features | Surge Protection Included | No | |
Modular Control Devices | Features | Terminal Capacity | 4-25 mm2 | |
Modular Control Devices | General | Standards | EN 61095 | |
Modular Control Devices | Material & Finish | Colour (EF000007) | White | |
Modular Control Devices | Material & Finish | Material (EF001257) | Plastic | |
Modular Control Devices | Technical Data | Coil Voltage | 230VAC | |
Modular Control Devices | Technical Data | Electrical Supply Frequency | 50 Hz | |
Modular Control Devices | Technical Data | Minimum Operating Temperature | -10 Degrees C | |
Modular Control Devices | Technical Data | Rated Current | 40 A |
