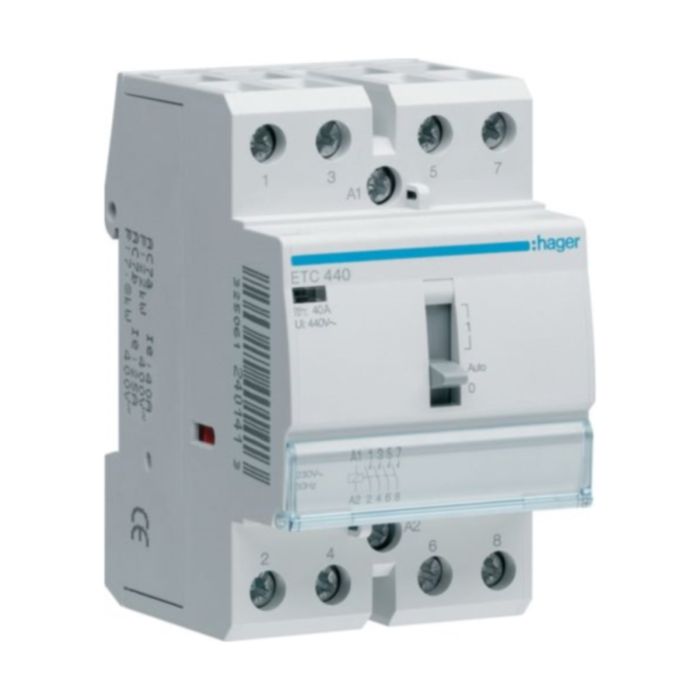

Hager ETC440 Contactor Night & Day 4NO 40A 230V
Hager ETC440 Contactor 4NO 40A 230V
- Override Contactors Manual override facility allows temporary override, with automatic return at next coil energisation. Permanent off can also be selected. ETC225S is a low noise version.
- The choice of contactor depends upon a number of parameters, e.g. the nature of the supply, the power it is switching, the characteristics of the load, the control voltage required, number of operations.
- All contactors ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating
- The use of LZ060 (heat dissipation inserts) between all contactors installed or between contactors and adjacent devices is required.
- Options: Contact choice Normally open (NO) - Normally closed (NC)
- All contactors will accept auxiliary, ESC080 contact.
Estimated delivery 3-5 Working days
SKU
HG-ETC440
£113.48 £136.18
Product Downloads
Product Categories
Hager ETC440 Contactor 4NO 40A 230V
| SKU | HG-ETC440 |
|---|---|
| Manufacturer Part Code | ETC440 |
| Colour | White |
| Material | Plastic |
| Mounting Method | Clip-On/DIN Rail |
| Depth (mm) | 64.00 mm |
| Height (mm) | 85.00 mm |
| Width (mm) | 54.00 mm |
| Current Rating | 40A |
| Voltage | 400V |
| Is on Sale | No |
| Modular Control Devices | Description | Product | Contactor | |
| Modular Control Devices | Description | Product Type | Night & Day 4NO | |
| Modular Control Devices | Description | Product | Contactor | |
| Modular Control Devices | Dimensions | Width (EF008808) | 54 mm | |
| Modular Control Devices | Features | Mounting (EF000003) | Clip-On/DIN Rail | |
| Modular Control Devices | Features | Number of Modules | 3 | |
| Modular Control Devices | Features | Operating Durability | 30000 Cyc | |
| Modular Control Devices | Features | Pole Configuration | 2NO | |
| Modular Control Devices | Features | Rated Voltage | 400 V | |
| Modular Control Devices | Features | Surge Protection Included | No | |
| Modular Control Devices | Features | Terminal Capacity | 4-25 mm2 | |
| Modular Control Devices | Material & Finish | Colour (EF000007) | White | |
| Modular Control Devices | Material & Finish | Material (EF001257) | Plastic | |
| Modular Control Devices | Technical Data | Coil Voltage | 230VAC | |
| Modular Control Devices | Technical Data | Electrical Supply Frequency | 50 Hz | |
| Modular Control Devices | Technical Data | Minimum Operating Temperature | -10 Degrees C | |
| Modular Control Devices | Technical Data | Rated Current | 40 A |
