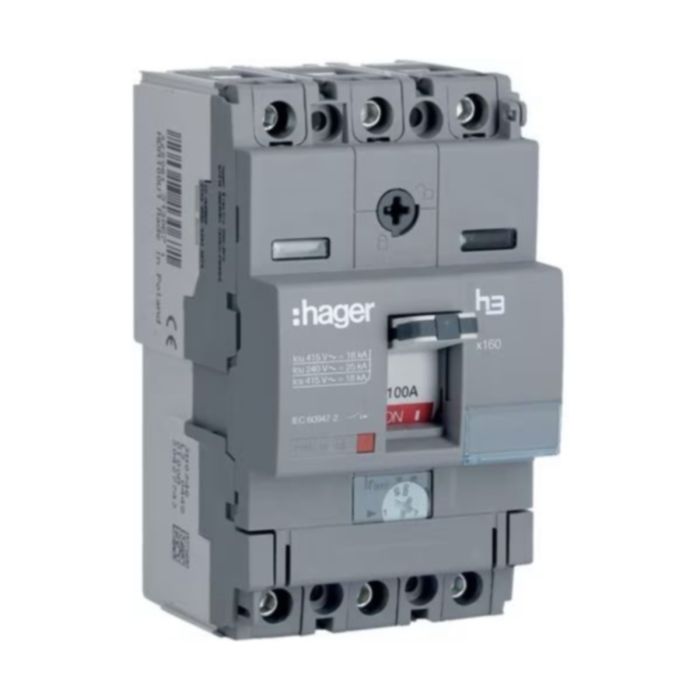

Hager HDA100U 100A 18kA 1 Pole 1D Adjustable Thermal, Fixed Magnetic MCCB h3 x160
Hager HDA100U MCCB TP 100A 18kA
- Thermal magnetic trip unit, two versions: Z/E version: fixed thermal and fixed magnetic. U version: adjustable thermal and fixed magnetic.
- Access to mechanical test button on cover.
- Lockable cover protects MCCB settings.
- Integrated padlocking handle: Ø 4mm.
- Connection capacity: 95mm² rigid cables, 70mm² flexible cables.
- Cage terminals
- Conforms to BS EN 60947-2.
- Fixed thermal: 1x In Adjustable thermal: 0.63 - 0.8 - 1 x In
Estimated delivery 3-5 Working days
SKU
HG-HDA100U
£224.79 £269.75
Product Downloads
Product Categories
| SKU | HG-HDA100U |
|---|---|
| Manufacturer Part Code | HDA100U |
| Product Range | Invicta 3 |
| Current Rating | 100A |
| Short Circuit Rating | 18 kA |
| Pole Configuration | 3P |
| Cable Capacity | 95 (Rigid) 70 (Flexible) mm2 |
| Standards | BS EN 60947-3 IEC 60947-3 AC22A/23A |
| Voltage | 400-415V |
| Is on Sale | No |
| Brand | Invicta 3 | |
| Circuit Breakers | Description | Product | MCCB | |
| Circuit Breakers | Description | Product Type | TP | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Description | Type | MCCB | |
| Circuit Breakers | Features | Pole Configuration | TP | |
| Circuit Breakers | Features | Short Circuit Rating | 18 kA | |
| Circuit Breakers | General | Standards | BS EN 60947-3 IEC 60947-3 AC22A/23A | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 100 A | |
| Circuit Breakers | Technical Data | Voltage | 400|415 V |
