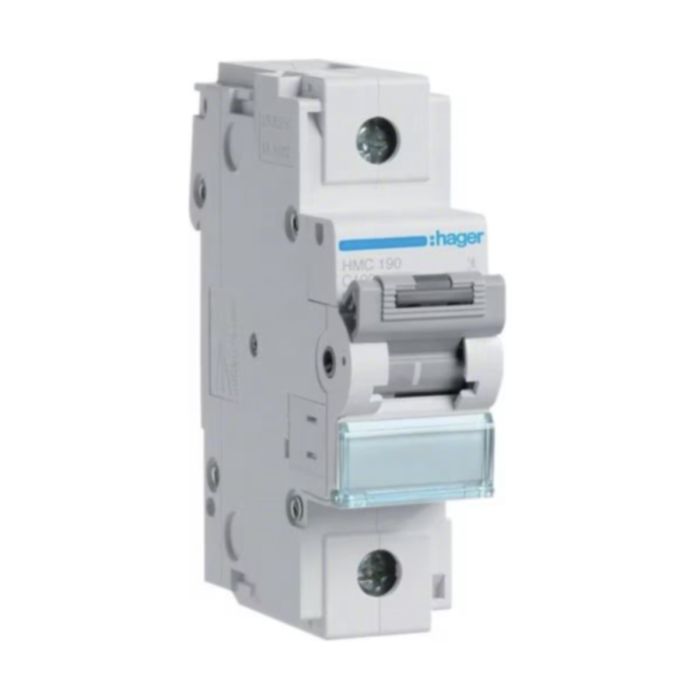

Hager HMC190T 100A 15kA 1 Pole C Curve 1.5 Module MCB
Hager HMC190T MCB SP Type C 100A 15kA
- Suitable for isolation (according to BS EN 60947-2). The isolation of the circuit breakers is indicated by a green indicator on the toggle.
- Standards 10 kA: BS EN 60898-1, 10 kA BS EN 60947-2. 15 kA: BS EN 60898-1, 15 kA BS EN 60947-2, In 80 to 125A
- Connection Capacity - 35mm² flexible (50mm² possible with some cable pin lugs). 70mm² rigid.
- Nominal Voltage - 230/415 V A.C
Estimated delivery 3-5 Working days
SKU
HG-HMC190T
£65.45 £78.54
Product Downloads
Product Categories
Hager HMC190T MCB SP Type C 100A 15kA
| SKU | HG-HMC190T |
|---|---|
| Manufacturer Part Code | HMC190T |
| Current Rating | 100A |
| Trip Type | Type C |
| Short Circuit Rating | 15 kA |
| Pole Configuration | 1P |
| Voltage | 230V |
| Mounting Method | DIN Rail |
| Ingress Protection | IP20 |
| Depth (mm) | 70.00 mm |
| Height (mm) | 90.00 mm |
| Width (mm) | 26.00 mm |
| Cable Capacity | 70 mm2 |
| Standards | BSEN60898 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | MCB | |
| Circuit Breakers | Description | Product Type | SP Type C | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Dimensions | Height (EF008809) | 90 mm | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP20 | |
| Circuit Breakers | Features | Mounting (EF000003) | DIN Rail | |
| Circuit Breakers | Features | Pole Configuration | Single Pole (1P) | |
| Circuit Breakers | Features | Short Circuit Rating | 15 kA | |
| Circuit Breakers | Features | Trip Type | Type C | |
| Circuit Breakers | General | Standards | BSEN60898 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 100 A | |
| Circuit Breakers | Technical Data | Voltage | 230 V |
