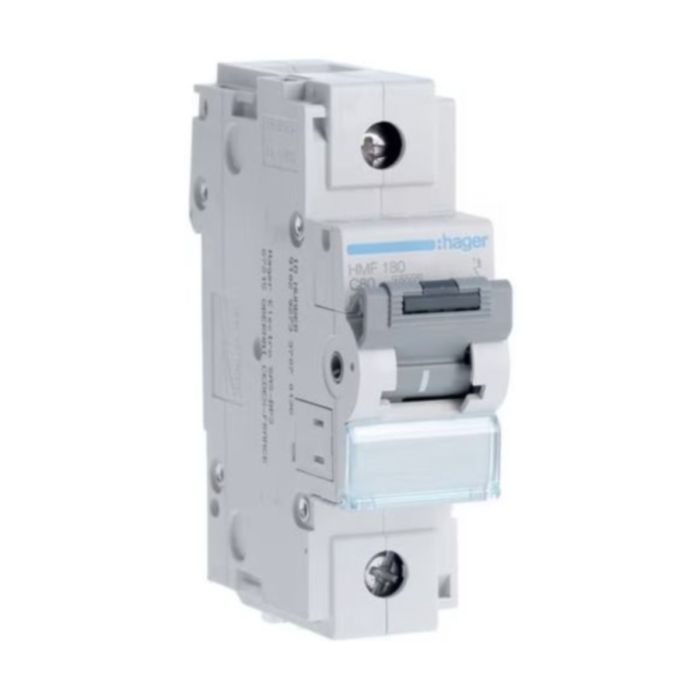

Hager HMF180T 80A 10kA 1 Pole C Curve 1.5 Module MCB
Hager HMF180T MCB SP Type C 80A 10kA
- Suitable for isolation (according to BS EN 60947-2). The isolation of the circuit breakers is indicated by a green indicator on the toggle.
- Standards 10 kA: BS EN 60898-1, 10 kA BS EN 60947-2. 15 kA: BS EN 60898-1, 15 kA BS EN 60947-2, In 80 to 125A
- Connection Capacity - 35mm² flexible (50mm² possible with some cable pin lugs). 70mm² rigid.
- Nominal Voltage - 230/415 V A.C
Hager HMF180T MCB SP Type C 80A 10kA
SKU | HG-HMF180T |
---|---|
Manufacturer Part Code | HMF180T |
Current Rating | 80A |
Trip Type | Type C |
Short Circuit Rating | 10 kA |
Pole Configuration | 1P |
Width (mm) | 28.25 mm |
Cable Capacity | 35Sq.mm (Flexible) 70Sq.mm (Rigid) mm2 |
Standards | BS EN 60898-1/60947-2 |
Is on Sale | No |
Circuit Breakers | Description | Product | MCB | |
Circuit Breakers | Description | Product Type | SP Type C | |
Circuit Breakers | Description | Product | Circuit Breaker | |
Circuit Breakers | Description | Type | MCB | |
Circuit Breakers | Dimensions | Width (EF008808) | 28.25 mm | |
Circuit Breakers | Features | Pole Configuration | SP | |
Circuit Breakers | Features | Short Circuit Rating | 10 kA | |
Circuit Breakers | Features | Trip Type | Type C | |
Circuit Breakers | General | Standards | BS EN 60898-1/60947-2 | |
Circuit Breakers | Technical Data | Current Rating (EF000227) | 80 A |
