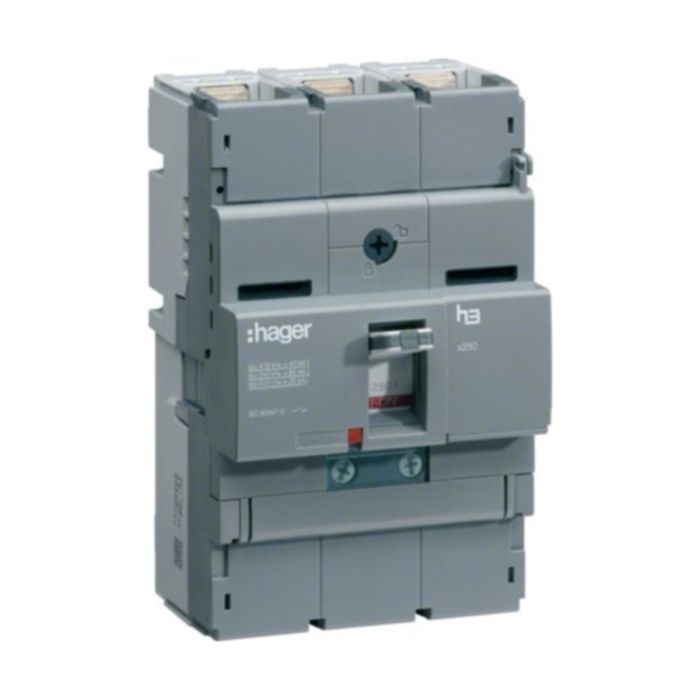

Hager HNB160H 160A 40kA 3 Pole Adjustable Thermal Magnetic MCCB x250
Hager HNB160H MCCB TP 160A 40kA
- Thermal magnetic trip unit, two versions: Z version: fixed thermal and fixed magnetic. H version: adjustable thermal magnetic.
- Access to mechanical test button on cover
- Lockable cover protects MCCB settings
- Integrated padlocking handle: Ø 4mm.
- Connection capacity: 150mm² rigid cables, palm lug max. width: 25mm
- Conforms to BS EN 60947-2
- AC 22/23A.
- Adjustable thermal: 0.63, 0.8, 1 x In
- Adjustable magnetic: 6 - 8 - 10 - 13 x In (100 - 200A). 5 - 7 - 9 - 11 x In (250A).
Estimated delivery 3-5 Working days
SKU
HG-HNB160H
£441.61 £529.93
Product Downloads
Product Categories
Hager HNB160H MCCB TP 160A 40kA
| SKU | HG-HNB160H |
|---|---|
| Manufacturer Part Code | HNB160H |
| Product Range | Invicta 3 |
| Mounting Method | Backplate |
| Current Rating | 160A |
| Short Circuit Rating | 40 kA |
| Pole Configuration | 3P |
| Cable Capacity | 185 mm2 |
| Standards | IEC60947-2 |
| Voltage | 400V |
| Ingress Protection | IP4X |
| Is on Sale | No |
| Brand | Invicta 3 | |
| Circuit Breakers | Description | Product | MCCB | |
| Circuit Breakers | Description | Product Type | TP | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP4X | |
| Circuit Breakers | Features | Mounting (EF000003) | Backplate | |
| Circuit Breakers | Features | Pole Configuration | Triple Pole (3P) | |
| Circuit Breakers | Features | Short Circuit Rating | 40 kA | |
| Circuit Breakers | General | Standards | IEC60947-2 | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 160 A | |
| Circuit Breakers | Technical Data | Voltage | 400 V |
