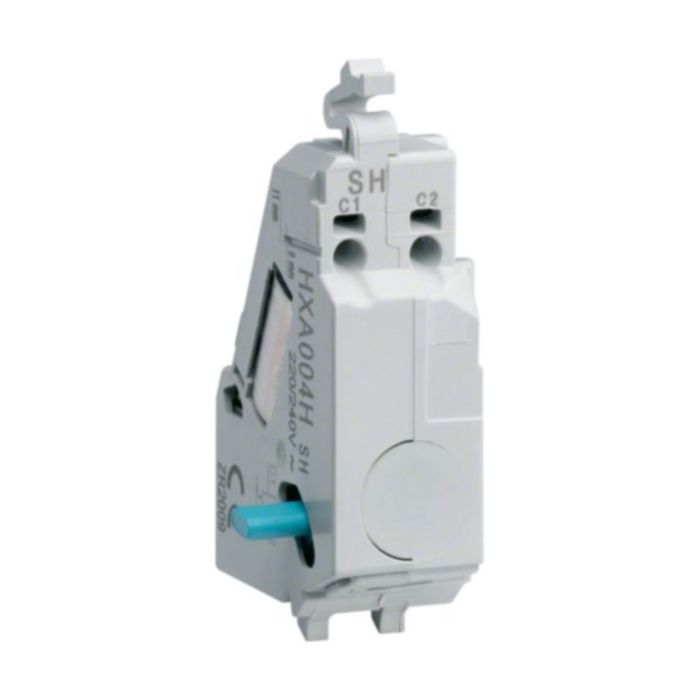

Hager HXA004H 200-240V AC Shunt Trip (x160-P160 x250-P250 x630-P630)

Hager HXA004H Shunt Trip 220-240V AC/DC
  • Indication contacts - 1 changeover switch (ON/OFF): indicates the position of the MCCB “open” or “close” - 1 changeover alarm contact: indicates MCCB tripped.
  • Coil connection - Connection capacity: 0.75 mm² flexible or rigid cables - The cable capacity of the terminals is 0.5 to 1.25mm².
  • Shunt trip Remote tripping of MCCBs - Operating voltage: 0.7 to 1.1 x Un
  • Under voltage release enables tripping of MCCBs or moulded case switches when voltage level drop between 35 and 70% of Un. Pick up voltage 0.85 x Un.
  • Padlockable direct rotary handle is equipped with front cover and handle, fixing without additional screws.
Estimated delivery 3-5 Working days
SKU
HG-HXA004H
£143.00 £171.60
