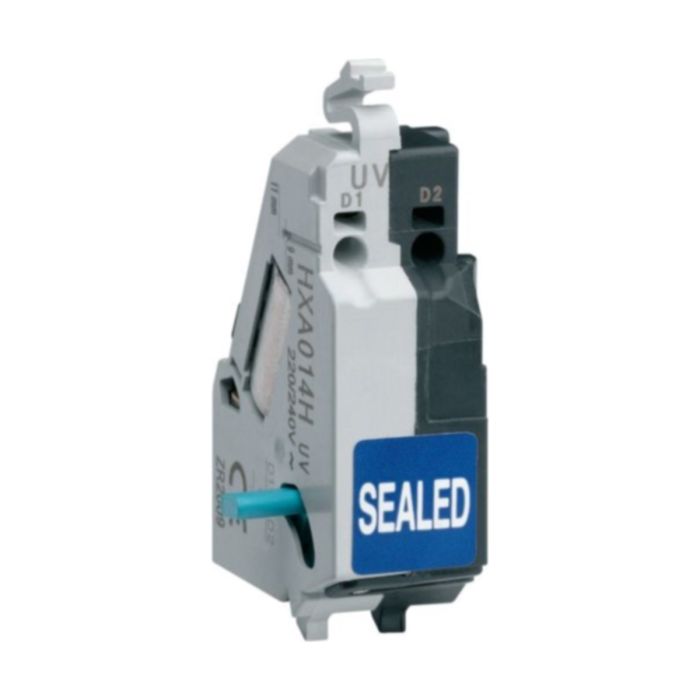

Hager HXA014H 200-240V AC Undervoltage Release (x160-P160 x250-P250 x630-P630)
Hager HXA014H U/V Release 220-240V
- Indication contacts - 1 changeover switch (ON/OFF): indicates the position of the MCCB “open” or “close” - 1 changeover alarm contact: indicates MCCB tripped.
- Coil connection - Connection capacity: 0.75 mm² flexible or rigid cables - The cable capacity of the terminals is 0.5 to 1.25mm².
- Shunt trip Remote tripping of MCCBs - Operating voltage: 0.7 to 1.1 x Un
- Under voltage release enables tripping of MCCBs or moulded case switches when voltage level drop between 35 and 70% of Un. Pick up voltage 0.85 x Un.
- Padlockable direct rotary handle is equipped with front cover and handle, fixing without additional screws.
Estimated delivery 3-5 Working days
SKU
HG-HXA014H
£100.50 £120.60
Product Downloads
Product Categories
Hager HXA014H U/V Release 220-240V
| SKU | HG-HXA014H |
|---|---|
| Manufacturer Part Code | HXA014H |
| Voltage | 230V |
| Pole Configuration | 2P |
| Mounting Method | Plug On |
| Is on Sale | No |
| Circuit Breakers | Description | Product | Undervoltage Release |
| Circuit Breakers | Description | Product | Undervoltage Trip |
| Circuit Breakers | Features | Mounting (EF000003) | Plug On |
| Circuit Breakers | Features | Pole Configuration | Double Pole (2P) |
| Circuit Breakers | Technical Data | Voltage | 230 V |
