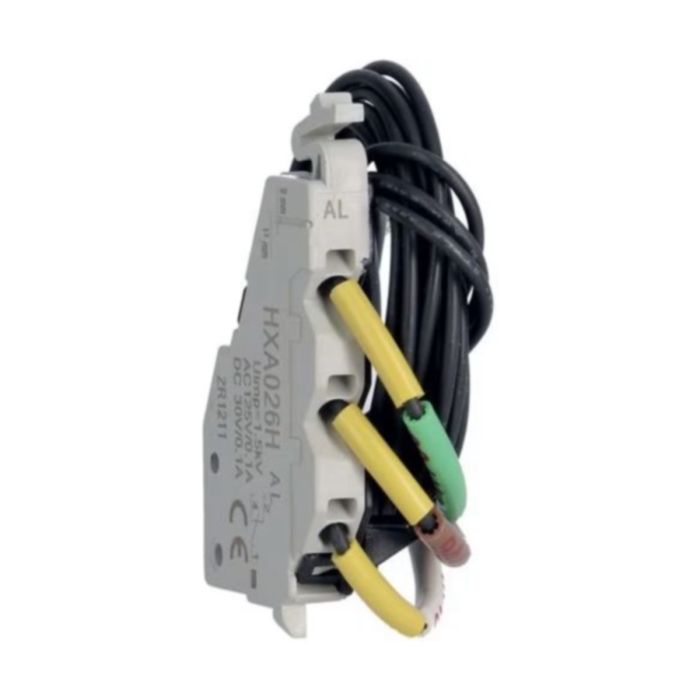

Hager HXA026H Alarm Contact Low Level: 125V AC, 1NO+1NC (x160-P160 x250-P250 x630-P630)
Hager HXA026H Auxiliary Contact 125V AC
- Indication contacts - 1 changeover switch (ON/OFF): indicates the position of the MCCB “open” or “close” - 1 changeover alarm contact: indicates MCCB tripped.
- Coil connection - Connection capacity: 0.75 mm² flexible or rigid cables - The cable capacity of the terminals is 0.5 to 1.25mm².
- Shunt trip Remote tripping of MCCBs - Operating voltage: 0.7 to 1.1 x Un
- Under voltage release Enables tripping of MCCBs or moulded case switches when voltage level drop between 35 and 70% of Un. Pick up voltage 0.85 x Un.
- Padlockable direct rotary handle is equipped with front cover and handle, fixing without additional screws.
Estimated delivery 3-5 Working days
SKU
HG-HXA026H
£31.03 £37.24
Product Downloads
Product Categories
| SKU | HG-HXA026H |
|---|---|
| Manufacturer Part Code | HXA026H |
| Product Range | X160/X250 |
| Is on Sale | No |
| Brand | X160/X250 |
| Description | Product Type | Low Level 1NO+1NC |
| Description | Product | Auxiliary Contact |
