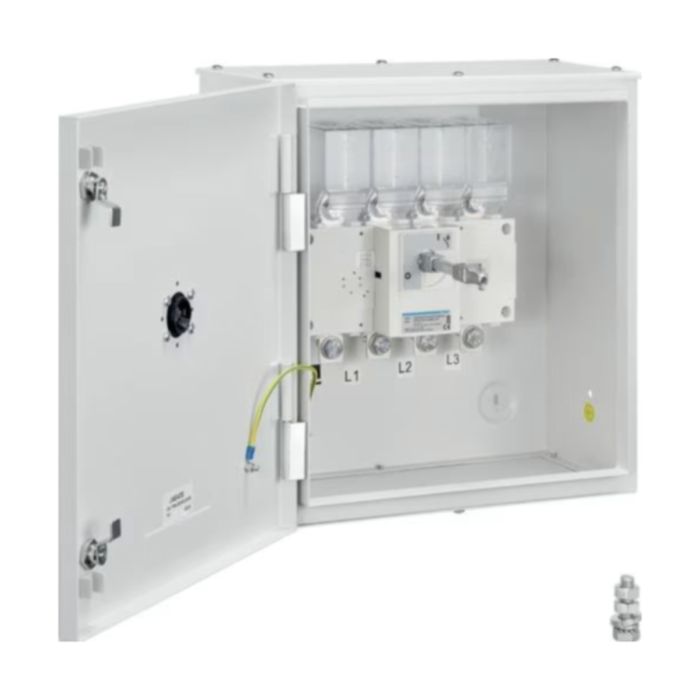

Hager JAE420 200A Triple Pole & Switched Neutral Enclosed Switch Disconnector
Hager JAE420 Switch Discon TPSN 200A
This product is subject to additional delivery costs due to its weight/size. Find out more
- Designed to provide individual isolation of circuits up to 800A.
- Provides adequate cabling space without the need for additional cable spreader boxes
- Operation of the device is through a door mounted rotary handle which is mechanically interlocked to prevent access to live conductors when the switch is in the on position
- The handle is padlockable in the off position
- Conforms to: BS EN 60947-3
- IP rating: IP31.
- Utilisation category AC-21, AC-22
Estimated delivery 3-5 Working days
SKU
HG-JAE420
£588.07 £705.68
Product Downloads
Product Categories
Hager JAE420 Switch Discon TPSN 200A
| SKU | HG-JAE420 |
|---|---|
| Manufacturer Part Code | JAE420 |
| Current Rating | 200A |
| Pole Configuration | 3P+SN |
| Depth (mm) | 200.00 mm |
| Width (mm) | 375.00 mm |
| Ingress Protection | IP31 |
| Enclosed | Yes |
| Standards | BS EN 60947-3 |
| Is on Sale | No |
| Switchgear | Description | Product | Switch Disconnector | |
| Switchgear | Description | Product Type | TPSN Enclosed | |
| Switchgear | Dimensions | Depth (EF008810) | 200 mm | |
| Switchgear | Dimensions | Length (EF004265) | 400 mm | |
| Switchgear | Features | Enclosed | Y | |
| Switchgear | Features | Ingress Protection (EF005474) | IP31 | |
| Switchgear | Features | Switch Position | Neutral | |
| Switchgear | General | Standards | BS EN 60947-3 | |
| Switchgear | Technical Data | Rated Current | 200 A |
