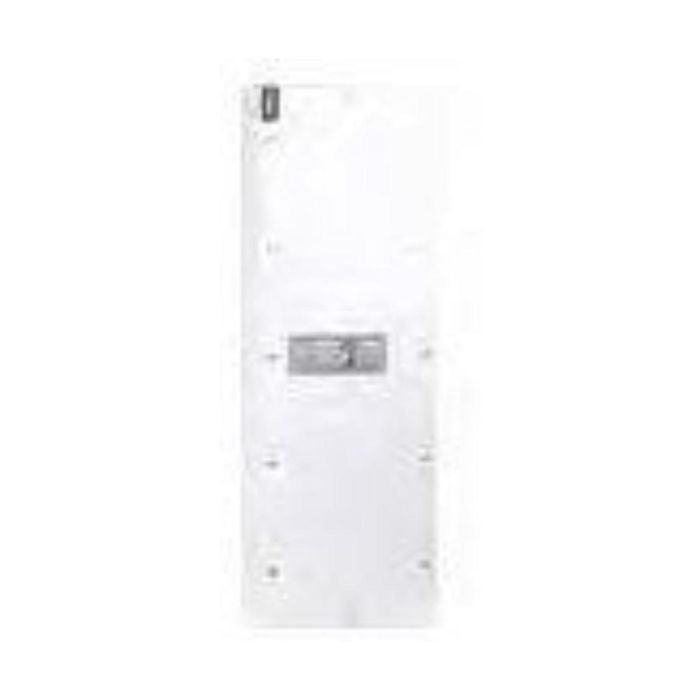

Hager JG37BM 160A IP31 25kA 4 Pole Enclosed Adjustable MCCB
Hager JG37BM MCCB 4P Enclosed 160A 25kA
This product is subject to additional delivery costs due to its weight/size. Find out more
- The devices are mounted in IP31 enclosures, with removable cable entry plates located on the top and bottom
- Single & triple pole devices are equipped with fully rated neutral links.
- Four pole: 125A - 250A - 400A - 630A.
- Conforms to BS EN 61439-2.
- 63 - 125A: Flexible cable: min 6mm², max 70mm², Rigid cable: min 6mm², max 95mm².
- RCD add-on adjustable from 0.03A, 0.1A, 0.3A, 1A, 3A, 6A
- Time delay - Instantaneous, 60ms, 150ms, 300ms, 500ms, 1s
Estimated delivery 3-5 Working days
SKU
HG-JG37BM
£930.71 £1,116.85
Product Downloads
Product Categories
Hager JG37BM MCCB 4P Enclosed 160A 25kA
| SKU | HG-JG37BM |
|---|---|
| Manufacturer Part Code | JG37BM |
| Mounting Method | Backplate |
| Ingress Protection | IP31 |
| Depth (mm) | 120.00 mm |
| Width (mm) | 260.00 mm |
| Height (mm) | 660.00 mm |
| Current Rating | 160A |
| Short Circuit Rating | 25 kA |
| Pole Configuration | 4P |
| Cable Capacity | 95 mm2 |
| Voltage | 400V |
| Standards | IEC60947-2 |
| Is on Sale | No |
| Circuit Breakers | Description | Product | MCCB | |
| Circuit Breakers | Description | Product Type | 4P Enclosed IP31 | |
| Circuit Breakers | Description | Product | Circuit Breaker | |
| Circuit Breakers | Dimensions | Depth (EF008810) | 120 mm | |
| Circuit Breakers | Dimensions | Height (EF008809) | 660 mm | |
| Circuit Breakers | Features | Ingress Protection (EF005474) | IP31 | |
| Circuit Breakers | Features | Mounting (EF000003) | Backplate | |
| Circuit Breakers | Features | Pole Configuration | Four Pole (4P) | |
| Circuit Breakers | Features | Short Circuit Rating | 25 kA | |
| Circuit Breakers | General | Standards | IEC60947-2 | |
| Circuit Breakers | General | Unit Weight | 10.5 kg | |
| Circuit Breakers | Technical Data | Current Rating (EF000227) | 160 A | |
| Circuit Breakers | Technical Data | Voltage | 400 V |
