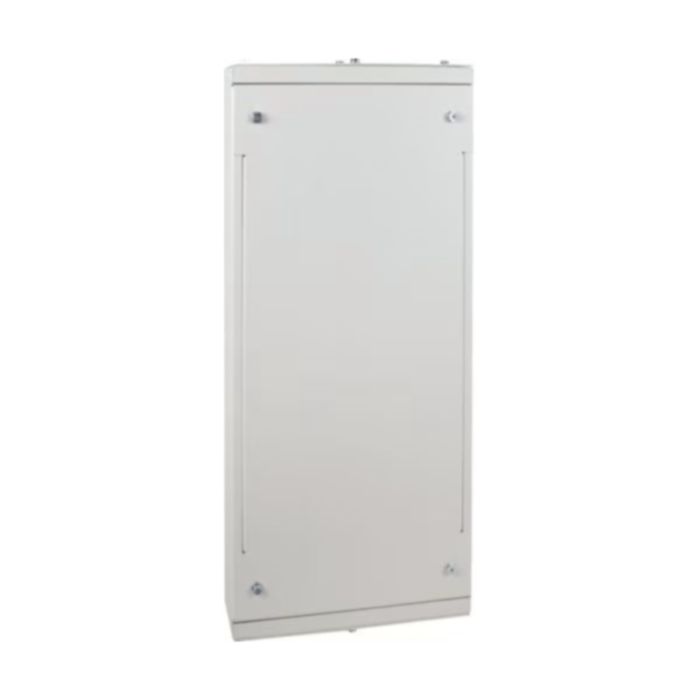

Hager JK116BSH Invicta 3 Enclosure 16 Way Side Extension Half Width
Hager JK116BSH Enclosure 16Way Side Extn
This product is subject to additional delivery costs due to its weight/size. Find out more
- Half Width Side Extension Box for 125A Primary Boards
- Side extension boxes allow cable ways to be fitted on site.
- Conforms to BS EN 62208.
- All side extension boxes supplied with two removable gland plates.
Estimated delivery 3-5 Working days
SKU
HG-JK116BSH
£165.10 £198.12
Product Downloads
Product Categories
Hager JK116BSH Enclosure 16Way Side Extn
| SKU | HG-JK116BSH |
|---|---|
| Manufacturer Part Code | JK116BSH |
| Product Range | Invicta 3 |
| Material | Steel |
| Colour | RAL 7035 |
| Mounting Method | Surface |
| Ingress Protection | IP2X |
| Depth (mm) | 91.50 mm |
| Width (mm) | 232.50 mm |
| Length (mm) | 950.00 mm |
| Door/Lid Type | Plain |
| c/w Door/Lid | Yes |
| Is on Sale | No |
| Brand | Invicta 3 | |
| Enclosures | Description | Maximum Rated Current | 125 A | |
| Enclosures | Description | Product | Enclosure | |
| Enclosures | Description | Product Type | 16 Way Side Extension | |
| Enclosures | Description | Type | Extension Box | |
| Enclosures | Dimensions | Depth (EF008810) | 91.5 mm | |
| Enclosures | Dimensions | Length (EF004265) | 950 mm | |
| Enclosures | Features | Door/Lid Type | Plain | |
| Enclosures | Features | Ingress Protection (EF005474) | IP2X | |
| Enclosures | Features | Mounting (EF000003) | Surface | |
| Enclosures | Features | Number of Doors/Lids | 1 | |
| Enclosures | Features | c/w Door/Lid | Y | |
| Enclosures | Material & Finish | Colour (EF000007) | RAL 7035 |
