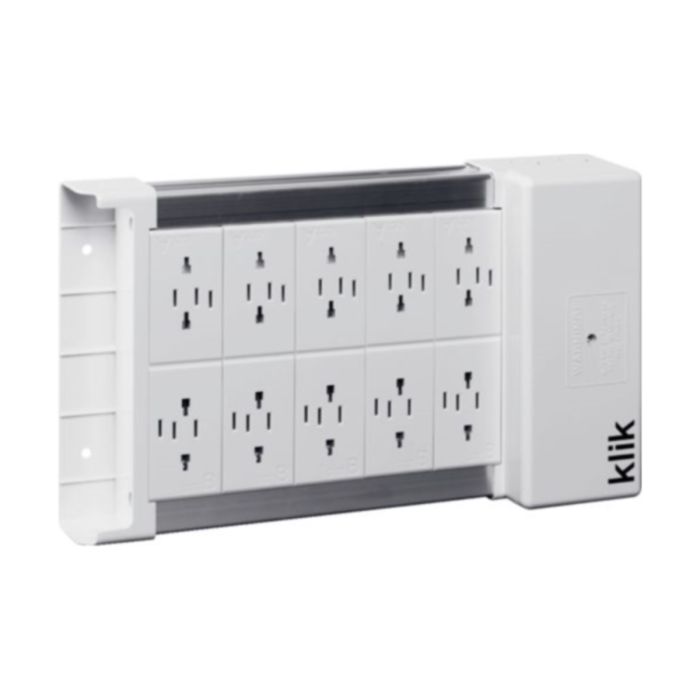

Hager KLDS10 Klik 10 Way Lighting Distribution Box 16A 4P White

KLDS10 is a 10 way Lighting Distribution Box, making what used to be a time consuming task very quick and simple. The main terminals are rated at 16A and each socket outlet is rated at 6A each. The flexible conductor terminals are rated at 10A. The main terminal capacity is 5 x 4mm? and the flexible conductor terminal capacity is 1 x 1mm?. The socket outlets accept Klik lighting plugs (3 Pin) and Klik AX plugs (4 Pin) as well as Klik pre-wired leads. The cable entry points in the box accept 20mm
  • Klik marshalling boxes are used in conjunction with Klik 3 and 4 pin plugs to connect luminaires within an area
  • The Klik marshalling box can be separated into two independently switched circuits
  • These circuits can be controlled via wall switch or occupancy sensor
  • Complies with BS 5733:2010
  • Main terminal rating: 16 Amps
  • Socket outlet rating: 6 Amps
  • Separate terminals for flexible conductors, rating: 10 Amps
  • Short circuit tested 1500A conditional rating
Stock available Next working day
SKU
HG-KLDS10
£87.67 £105.20
