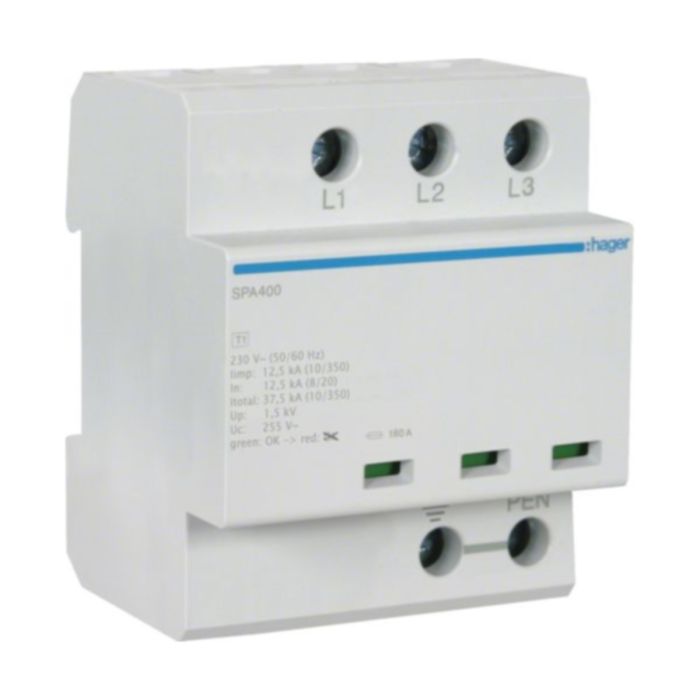

Hager SPA400 Surge Protector TP Monobloc 3 Phase TNC 12.5kA
Hager SPA400 TP Surge Protector 12.5kA
- For protection of low voltage distribution systems against transient overvoltage
Estimated delivery 3-5 Working days
SKU
HG-SPA400
£248.50 £298.20
Product Downloads
Product Categories
| SKU | HG-SPA400 |
|---|---|
| Manufacturer Part Code | SPA400 |
| Material | Plastic |
| Colour | White |
| Pole Configuration | 4P |
| Depth (mm) | 83.00 mm |
| Width (mm) | 70.00 mm |
| Insulated | Yes |
| Max working voltage | 400 V |
| Standards | IEC61643-1 |
| Is on Sale | No |
| Earthing & Lightning Protection | Description | Product | Surge Protector | |
| Earthing & Lightning Protection | Description | Product Type | TP Monobloc 3 Phase TNC | |
| Earthing & Lightning Protection | Dimensions | Connection Size (mm) | 50 mm | |
| Earthing & Lightning Protection | Dimensions | Depth (EF008810) | 83 mm | |
| Earthing & Lightning Protection | Dimensions | Width (EF008808) | 70 mm | |
| Earthing & Lightning Protection | Features | Connection Type (EF000124) | Screw Clamp | |
| Earthing & Lightning Protection | Features | Insulated | Yes | |
| Earthing & Lightning Protection | Features | Maximum Working Voltage | 400 V | |
| Earthing & Lightning Protection | Material & Finish | Colour (EF000007) | White | |
| Earthing & Lightning Protection | Material & Finish | Material (EF001257) | Plastic |
