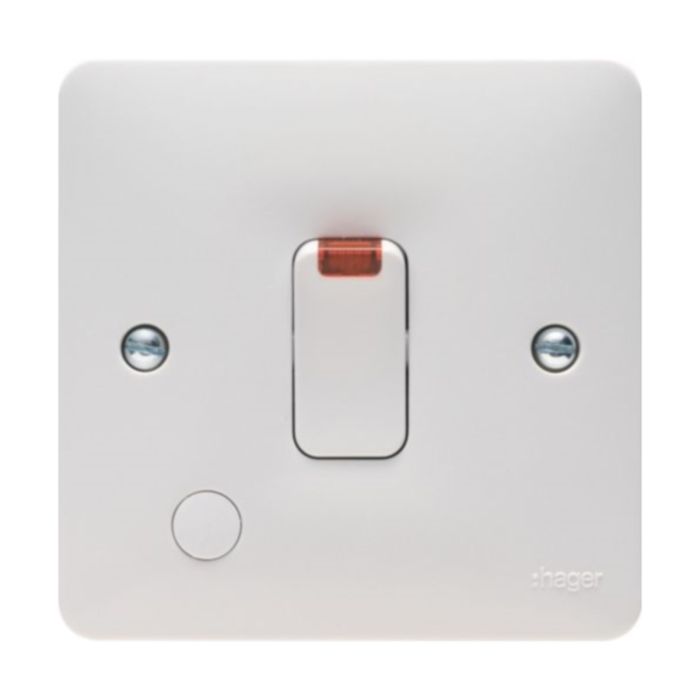

Hager WMDP84FON Sollysta Control Switch 1 Gang DP c/w Flex Outlet & LED 20A White
The Sollysta white moulded wiring accessory range is one of the easiest on the market to install with the shallowest back projection offering more cabling space. Behind the faceplate the terminals face in the same direction with lead-ins for wiring, backed off screws held captive to prevent loss, wire end stops and clear white labelling off a dark grey background. The wall switches are also the market's first with a neutral loop terminal built into the accessory. This allows the installer to com
- Complies with BS EN 60669-1, a.c. only
- Single screw fast fix cable clamp, accommodates up to 1.5mm² flexible cord.
- All terminals are upward facing with clearly printed terminal markings for ease of installation
- Capacity of each terminal 2 x 6.0mm² conductors
- Supplied with M3.5 x 30mm long fixing screws and screw covers
- High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702
20A Double Pole Switch with Light & Flex
SKU | HG-WMDP84FON |
---|---|
Manufacturer Part Code | WMDP84FON |
Product Range | Sollysta |
Current Rating | 20A |
Face colour | Metalclad |
Insert colour | White |
Width (mm) | 86.00 mm |
Height (mm) | 28.00 mm |
Length (mm) | 86.00 mm |
Pole Configuration | 2P |
Standards | BS EN 60669-1 |
Is on Sale | No |
Brand | Sollysta | |
Wiring Accessories | Description | Product | Control Switch | |
Wiring Accessories | Description | Product Type | 1 Gang DP c/w Flex Outlet & LED | |
Wiring Accessories | Dimensions | Height (EF008809) | 28 mm | |
Wiring Accessories | Dimensions | Length (EF004265) | 86 mm | |
Wiring Accessories | Dimensions | Width (EF008808) | 86 mm | |
Wiring Accessories | Features | Flex Outlet | Y | |
Wiring Accessories | Features | Pole Configuration | Double Pole | |
Wiring Accessories | General | Standards | BS EN 60669-1 | |
Wiring Accessories | Material & Finish | Face Colour | Metalclad | |
Wiring Accessories | Material & Finish | Insert Colour | White | |
Wiring Accessories | Technical Data | Current Rating (EF000227) | 20 A |
