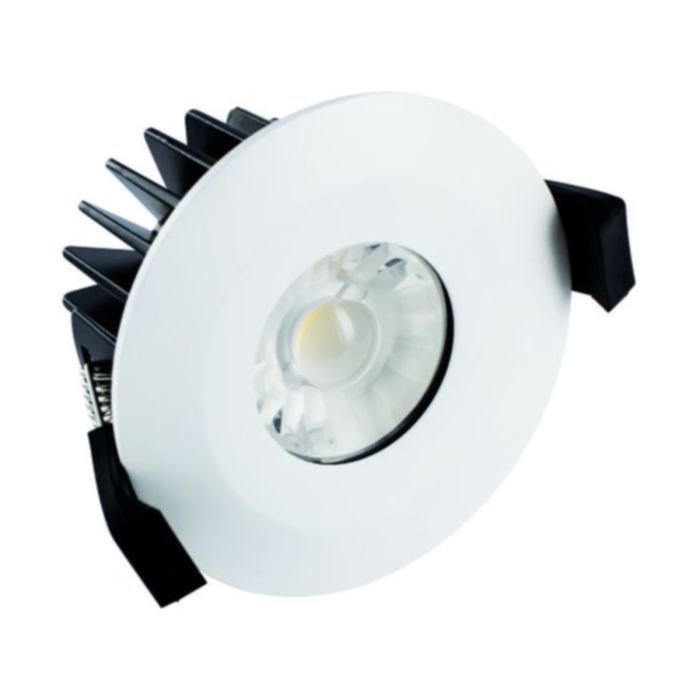

Integral ILDLFR70B012 Low-Profile Fire Rated Downlight 70-75Mm Cutout IP65 900Lm 10W 3000K 60 Beam Dimmable 90Lm/W White Integral
These low-profile lamps are fire rated to 30, 60 and 90 minutes, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. Warm White and Cool White colour temperature options and dimmable or non-dimmable options are available. Importantly, these lamps are IP65 rated and designed to offer the safety and quality of other Fire Rated Downlights but with a lower price-tag.
- Warm white
- 900 Lumens
- Dimmable
- Low-profile body
- Matt white finish
These low-profile lamps are fire rated to 30, 60 and 90 minutes, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. Warm White and Cool White colour temperature options and dimmable or non-dimmable options are available. Importantly, these lamps are IP65 rated and designed to offer the safety and quality of other Fire Rated Downlights but with a lower price-tag.
SKU | INLED-ILDLFR70B012 |
---|---|
Manufacturer Part Code | ILDLFR70B012 |
Warranty | 3 Years |
Product Finish | White |
Material | Aluminium |
Colour | Black |
Bezel/Trim Colour | White |
Mounting Position | Ceiling |
Ingress Protection | IP65 |
Overall Diameter (mm) | 85.00 mm |
Voltage | 220-240V |
Wattage | 10W |
Colour Temperature | 3000K |
Colour Rendering Index | >80 |
Light Output | 830.00 lm |
Luminous Efficiency | 83.00 lm/W |
Beam Angle | 60 Degrees |
LED Driver Included? | Yes |
Lamp Type | LED Fixed |
Lamp(s) Included? | Yes |
Dimmable | Yes |
Fire Rated | Yes |
Emergency | No |
Face Shape | Circular |
PIR Included | No |
Cover Type | Clear Cover |
Cover Colour | Clear |
Cover Included | Yes |
Corrosion Resistant | No |
Ballast/Starter Included | No |
Vandal Resistant | No |
Standards | EN 60598 |
Adjustability | Fixed |
Is on Sale | No |
Luminaires | Description | Product | Downlight | |
Luminaires | Description | Product Type | Fire Rated Low Profile LED 3000K | |
Luminaires | Description | Product | Luminaire | |
Luminaires | Description | Type | Downlight | |
Luminaires | Dimensions | Cut-Out Diameter | 70-75 mm | |
Luminaires | Dimensions | Overall Diameter | 85 mm | |
Luminaires | Dimensions | Recess Depth | 58 mm | |
Luminaires | Features | Adjustability | Fixed | |
Luminaires | Features | Ballast/Starter Included | N | |
Luminaires | Features | Corrosion Resistant | N | |
Luminaires | Features | Cover Included | Y | |
Luminaires | Features | Cover Type | Clear Cover | |
Luminaires | Features | Dimmable | Y | |
Luminaires | Features | Emergency | N | |
Luminaires | Features | Ingress Protection (EF005474) | IP65 | |
Luminaires | Features | Lamp(s) Included? | Y | |
Luminaires | Features | Microwave Sensor Included | N | |
Luminaires | Features | PIR Included | N | |
Luminaires | Features | Self-Contained | N | |
Luminaires | Features | Vandal Resistant | N | |
Luminaires | Features | Wattage | 10 W | |
Luminaires | General | CE Approved | Y | |
Luminaires | General | Standards | EN 60598 | |
Luminaires | General | Unit Weight | 0.28 kg | |
Luminaires | General | Warranty | 3 Years | |
Luminaires | Material & Finish | Bezel/Trim Colour | White | |
Luminaires | Material & Finish | Cover Colour | Clear | |
Luminaires | Material & Finish | Housing Colour | Black | |
Luminaires | Material & Finish | Housing Material | Aluminium | |
Luminaires | Technical Data | Light Output | 830 Lm | |
Luminaires | Technical Data | Luminous Efficiency | 83 Lm/W | |
Luminaires | Technical Data | Voltage | 220-240 V |
