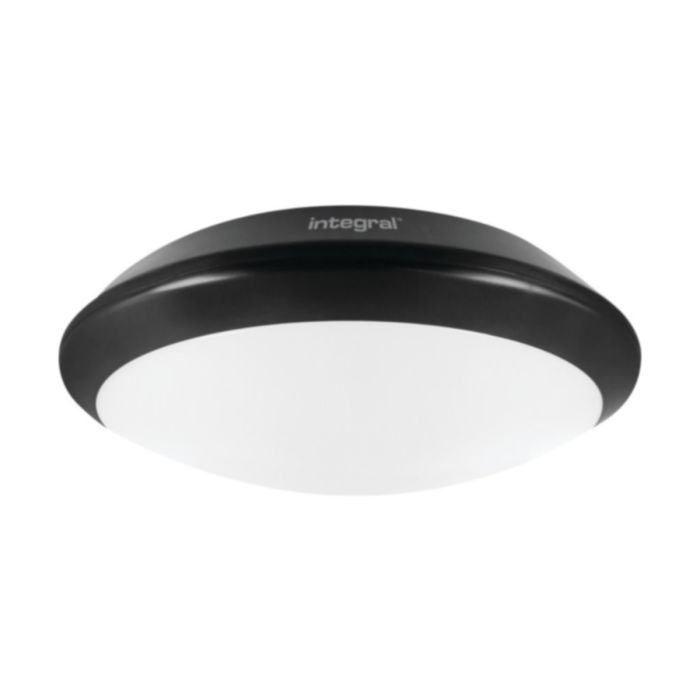

Integral ILBHA060 Tough Shell+ Bulkhead 308Mm Dia IP66 1500Lm 15W 4000K Ik10 110 Beam Non-Dimm Black 100Lm/W Integral
The Integral LED 15W low-energy Tough-Shell+ IP66 Bulkhead has a back-lit LED design that provides a 110 degree beam angle and an even light distribution, available in a black and white finish.
This luminaire is suitable for outdoor and indoor installation. Engineered from a super-tough IK10 rated polycarbonate body, it is ideal for external walls in homes, industrial estates and car parks. Indoor uses include walls and ceilings in hallways, stairways and even bathrooms (Zone 1, 2 and 3). This bulkhead delivers 1500 lumens and 4000K white colour temperature. Long life expectancy of 35,000 hours based on normal usage. Each unit is supplied with an easy-to-follow installation guide.
This model features side conduit entries and BESA fixing points for added convenience when installing.
- Side conduit entry and BESA fixing points
- Tough casing (IK10)
- 1500 Lumen
- High efficiency 100lm per watt
The Integral LED 15W low-energy Tough-Shell+ IP66 Bulkhead has a back-lit LED design that provides a 110 degree beam angle and an even light distribution, available in a black and white finish.
This luminaire is suitable for outdoor and indoor installation. Engineered from a super-tough IK10 rated polycarbonate body, it is ideal for external walls in homes, industrial estates and car parks. Indoor uses include walls and ceilings in hallways, stairways and even bathrooms (Zone 1, 2 and 3). This bulkhead delivers 1500 lumens and 4000K white colour temperature. Long life expectancy of 35,000 hours based on normal usage. Each unit is supplied with an easy-to-follow installation guide.
This model features side conduit entries and BESA fixing points for added convenience when installing.
| SKU | INLED-ILBHA060 |
|---|---|
| Manufacturer Part Code | ILBHA060 |
| Warranty | 3 Years |
| Product Finish | Black |
| Material | Polycarbonate |
| Colour | Black |
| Mounting Position | Ceiling/Wall |
| Ingress Protection | IP66 |
| Depth (mm) | 100.00 mm |
| Overall Diameter (mm) | 308.00 mm |
| Voltage | 220-240V |
| Wattage | 15W |
| Colour Temperature | 4000K |
| Colour Rendering Index | >80 |
| Light Output | 1,500.00 lm |
| Luminous Efficiency | 100.00 lm/W |
| Beam Angle | 110 Degrees |
| LED Driver Included? | Yes |
| Emergency | No |
| Lamp Type | LED Fixed |
| Lamp(s) Included? | Yes |
| c/w Photocell? | No |
| PIR Included | No |
| c/w Microwave | No |
| Dimmable | No |
| Fire Rated | No |
| Face Shape | Circular |
| Bezel/Trim Colour | Black |
| Cover Type | Diffuser |
| Cover Colour | Opal |
| Cover Included | Yes |
| Adjustability | Fixed |
| Self-Contained | No |
| Vandal Resistant | Yes |
| Corrosion Resistant | No |
| Ballast/Starter Included | No |
| Cover material | Polycarbonate |
| Is on Sale | No |
| Luminaires | Description | Face Shape | Circular | |
| Luminaires | Description | Product | Bulkhead | |
| Luminaires | Description | Product Type | Tough Shell+ LED 4000K IK10 IP66 | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Bulkhead | |
| Luminaires | Dimensions | Depth (EF008810) | 100 mm | |
| Luminaires | Dimensions | Overall Diameter | 308 mm | |
| Luminaires | Features | Adjustability | Fixed | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | Y | |
| Luminaires | Features | Cover Type | Diffuser | |
| Luminaires | Features | Dimmable | N | |
| Luminaires | Features | Ingress Protection (EF005474) | IP66 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | N | |
| Luminaires | Features | Vandal Resistant | Y | |
| Luminaires | Features | Wattage | 15 W | |
| Luminaires | General | CE Approved | Y | |
| Luminaires | General | Standards | LVD EN 60598 | |
| Luminaires | General | Unit Weight | 0.85 kg | |
| Luminaires | General | Warranty | 3 Years | |
| Luminaires | Material & Finish | Bezel/Trim Colour | Black | |
| Luminaires | Material & Finish | Cover Colour | Opal | |
| Luminaires | Material & Finish | Cover Material | Polycarbonate | |
| Luminaires | Material & Finish | Housing Colour | Black | |
| Luminaires | Material & Finish | Housing Material | Polycarbonate | |
| Luminaires | Technical Data | Light Output | 1500 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 100 Lm/W | |
| Luminaires | Technical Data | Voltage | 220-240 V |
