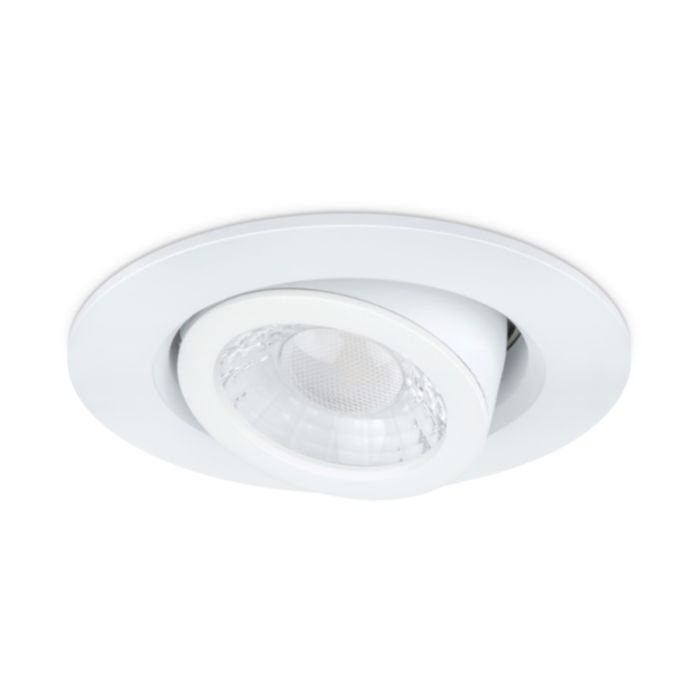

JCC JC1026/WH V50™ Pro Tilt Fire-rated LED Downlight 6W IP65 3000/4000K White
JCC JC1026/WH Downlght V50 Tilt LED 6.5W
- 650/700 Lumens
- 108/116 LpcW
- 3000K & 4000K colour temperature
- IP65 slim bezel version of V50™ Tilt, suitable for bathrooms
- Die-cast aluminium bezels
- 350° rotatable and 20° tiltable
- Low profile design, for installations in shallow 50mm ceiling voids
- Selectable colour temperature 3000K & 4000K
- Tested for use in Solid and I-joist ceilings. See jcc.co.uk for latest test reports**
- Cut-out ⌀86mm ...
Estimated delivery 2-3 Working days
SKU
JCC-JC1026/WH
£21.45 £25.74
Product Downloads
Product Categories
| SKU | JCC-JC1026/WH |
|---|---|
| Manufacturer Part Code | JC1026/WH |
| Warranty | 5 Years |
| Product Finish | White |
| Material | Steel |
| Colour | White |
| Bezel/Trim Colour | White |
| Mounting Position | Ceiling |
| Ingress Protection | IP65 |
| Height (mm) | 62.70 mm |
| Overall Diameter (mm) | 100.00 mm |
| Voltage | 230-240V |
| Wattage | 7.5W |
| Colour Temperature | 4000K, 3000K |
| Colour Rendering Index | 80-89 |
| Light Output | 600.00 lm |
| Luminous Efficiency | 87.00 lm/W |
| Beam Angle | 60 Degrees |
| Lifetime (hrs) | 51000Hrs |
| Energy Rating | F |
| LED Driver Included? | Yes |
| Lamp Type | LED Fixed |
| Lamp(s) Included? | Yes |
| Dimmable | Yes |
| Fire Rated | Yes |
| Emergency | No |
| Face Shape | Circular |
| PIR Included | No |
| Cover Colour | Clear |
| Cover Included | Yes |
| Operating temperature | 0|26 Degrees C |
| Corrosion Resistant | No |
| Ballast/Starter Included | No |
| Vandal Resistant | No |
| Standards | ISO9001-2015 ISO14001-2015 BS EN 60598:2015 2-1 2-2 |
| Cover material | Polycarbonate |
| Adjustability | Adjustable |
| Is on Sale | No |
| Luminaires | Description | Product | Downlight | |
| Luminaires | Description | Product Type | V50 Tilt LED Fire Rated IP65 | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Downlight | |
| Luminaires | Dimensions | Cut-Out Diameter | Ø86 mm | |
| Luminaires | Dimensions | Overall Diameter | 85 mm | |
| Luminaires | Dimensions | Recess Depth | 50 mm | |
| Luminaires | Features | Adjustability | Adjustable | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | Y | |
| Luminaires | Features | Dimmable | Y | |
| Luminaires | Features | Emergency | N | |
| Luminaires | Features | Ingress Protection (EF005474) | IP65 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | N | |
| Luminaires | Features | Vandal Resistant | N | |
| Luminaires | Features | Wattage | 7.5 W | |
| Luminaires | General | CE Approved | Y | |
| Luminaires | General | Energy Efficiency Class | F | |
| Luminaires | General | Standards | BS EN 60598:2015 2-1 2-2 | |
| Luminaires | General | Warranty | 2 Years | |
| Luminaires | Material & Finish | Bezel/Trim Colour | White | |
| Luminaires | Material & Finish | Cover Colour | Clear | |
| Luminaires | Material & Finish | Cover Material | Polycarbonate | |
| Luminaires | Material & Finish | Housing Colour | White | |
| Luminaires | Material & Finish | Housing Material | Steel | |
| Luminaires | Technical Data | Light Output | 600 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 87 Lm/W | |
| Luminaires | Technical Data | Voltage | 230-240 V |
