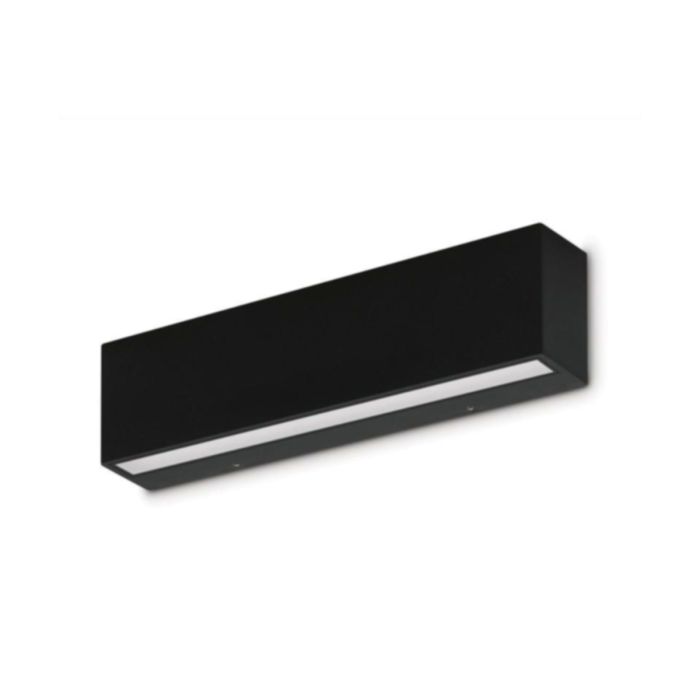

JCC JC17006 Architectural surface linear mini downlight 4.3W 3000K 279Lm
Architectural surface linear mini downlight 7W 3000K 220Lm
- Durable die-cast aluminium construction
- One direction wall wash in anthracite
- IP65 weather resistant
- Matching colour temperature and finish to the Architectural Exterior range
Estimated delivery 2-3 Working days
SKU
JCC-JC17006
£37.34 £44.81
Product Downloads
Product Categories
Architectural surface linear mini downlight 7W 3000K 220Lm
| SKU | JCC-JC17006 |
|---|---|
| Manufacturer Part Code | JC17006 |
| Warranty | 3 Years |
| Material | Aluminium |
| Colour | Black |
| Mounting Position | Wall |
| Ingress Protection | IP65 |
| Depth (mm) | 33.00 mm |
| Width (mm) | 190.00 mm |
| Height (mm) | 33.00 mm |
| Length (mm) | 50.00 mm |
| Cover Included | No |
| Bezel/Trim Colour | Black |
| Lamp Type | LED Fixed |
| Lamp(s) Included? | Yes |
| Wattage | 4.3W |
| Voltage | 220-240V |
| Colour Temperature | 3000K |
| Colour Rendering Index | 80-89 |
| Light Output | 279.00 lm |
| Luminous Efficiency | 65.00 lm/W |
| Lifetime (hrs) | 36000Hrs |
| Dimmable | No |
| Fire Rated | No |
| LED Driver Included? | Yes |
| c/w Photocell? | No |
| Face Shape | Rectangular |
| PIR Included | No |
| CE Approved | Yes |
| Standards | ISO9001-2015 ISO14001-2015 BS 60598-2015 |
| Self-Contained | No |
| Adjustability | Fixed |
| Beam Angle | 45 Degrees |
| Is on Sale | No |
| Luminaires | Description | Face Shape | Rectangular | |
| Luminaires | Description | Product | Downlight | |
| Luminaires | Description | Product Type | Surface LED Linear Recessed IP65 | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Linear | |
| Luminaires | Dimensions | Depth (EF008810) | 50 mm | |
| Luminaires | Features | Adjustability | Fixed | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | N | |
| Luminaires | Features | Dimmable | N | |
| Luminaires | Features | Ingress Protection (EF005474) | IP65 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | N | |
| Luminaires | Features | Vandal Resistant | N | |
| Luminaires | Features | Wattage | 4.3 W | |
| Luminaires | General | CE Approved | Y | |
| Luminaires | General | Energy Efficiency Class | G | |
| Luminaires | General | Standards | BS 60598-2015 | |
| Luminaires | General | Unit Weight | 0.3 kg | |
| Luminaires | General | Warranty | 2 Years | |
| Luminaires | Material & Finish | Bezel/Trim Colour | Black | |
| Luminaires | Material & Finish | Cover Material | Glass | |
| Luminaires | Material & Finish | Housing Colour | Black | |
| Luminaires | Material & Finish | Housing Material | Aluminium | |
| Luminaires | Technical Data | Light Output | 279 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 65 Lm/W | |
| Luminaires | Technical Data | Voltage | 220-240 V |
