Manrose Centrifugal Showerlite Fan Kit c/w Warm White Bulb
- Providing solutions for a wide range of domestic and commercial applications, the CFD200/220 in-line fan has been designed for use with suspended ceilings, A spring operated, non-return flap is built into the discharge spigot to prevent back draughts.
- Powerful, yet quiet and unobtrusive, the CFD200/220 units have extract rates of 110m³/hr 31 litres per second.
- The CFD series is suitable for a wide range of applications including bathrooms, toilets, shower rooms and utility rooms.
- The CFD series is fitted with backward curved centrifugal impellers for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles.
- The CFD200/220 units are manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
- Available with an integral mounting bracket. Designed to comply with the Building Regulations on Ventilation (F1).
- The CFD200/220 range is powered by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
- The Shower Kit comprises of the CFD200 centrifugal in-line fan unit, 6 metres of PVC ducting and wall grilles.

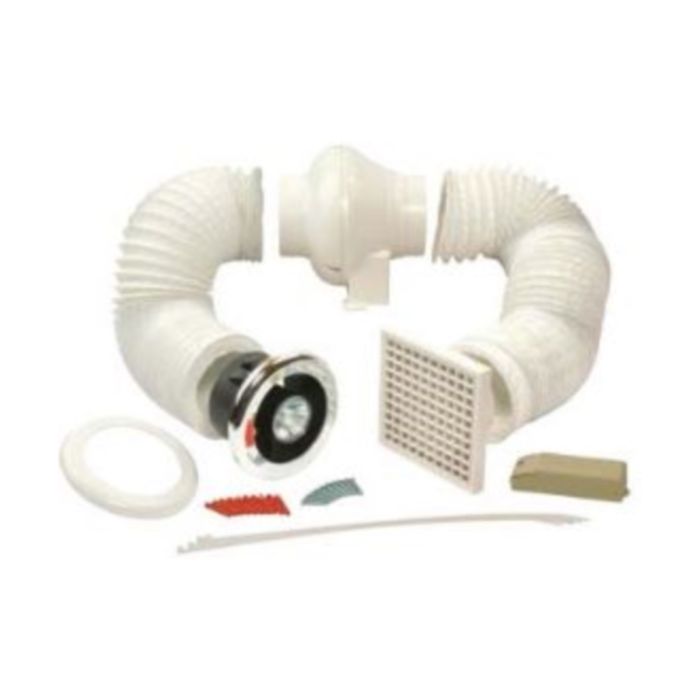

- The Showerlite Kit comprises of the CFD200 centrifugal in-line fan unit, 6 metres of PVC ducting and wall grilles together with a chrome Showerlite fitting and transformer.
Stock available Next working day
SKU
MANR-LEDSLCFDTCN
£65.65 £78.78
Product Categories
| SKU | MANR-LEDSLCFDTCN |
|---|---|
| Manufacturer Part Code | LEDSLCFDTCN |
| Product Range | Showerlite |
| Warranty | 3 Years |
| Material | ABS Thermoplastic |
| Shape | Circular |
| Voltage | 220-240V |
| Width (mm) | 175.00 mm |
| Number of speeds | 1 |
| Number of Phases | Single |
| Air Extraction Rate m3/h | 110 M3/h |
| Maximum Speed | 1400 rpm |
| Maximum Sound Pressure Level | 45 Db |
| Impeller Diameter | 100 mm |
| Cased | Yes |
| c/w Timer | Yes |
| CE Approved | Yes |
| Is on Sale | No |
| Brand | Showerlite | |
| Fans | Description | Product | Fan | |
| Fans | Description | Product Type | Kit Inline Showerlite Timer LED | |
| Fans | Dimensions | Impeller Diameter | 100 mm | |
| Fans | Dimensions | Overall Length | 180 mm | |
| Fans | Dimensions | Overall Width | 175 mm | |
| Fans | Features | Air Extraction Rate m3/h | 110m3/hr 31 litres per second M3/h | |
| Fans | Features | Maximum Sound Power Level | 45|45 Db | |
| Fans | Features | Maximum Standard Air Supply | 40 Degrees C | |
| Fans | Features | Motor Power | 20|20 W | |
| Fans | Features | Mounting | Surface/Recess | |
| Fans | Features | Number of Poles | 3P | |
| Fans | Features | Use | Domestic | |
| Fans | Features | c/w Timer | Y | |
| Fans | General | CE Approved | Y | |
| Fans | General | Warranty | 3 Years | |
| Fans | Material & Finish | Impeller Material | Plastic | |
| Fans | Technical Data | Maximum Sound Pressure Level | 45 Db | |
| Fans | Technical Data | Maximum Speed | 1400 rpm | |
| Fans | Technical Data | Number of Phases | Single | |
| Fans | Technical Data | Voltage | 220-240 V |
