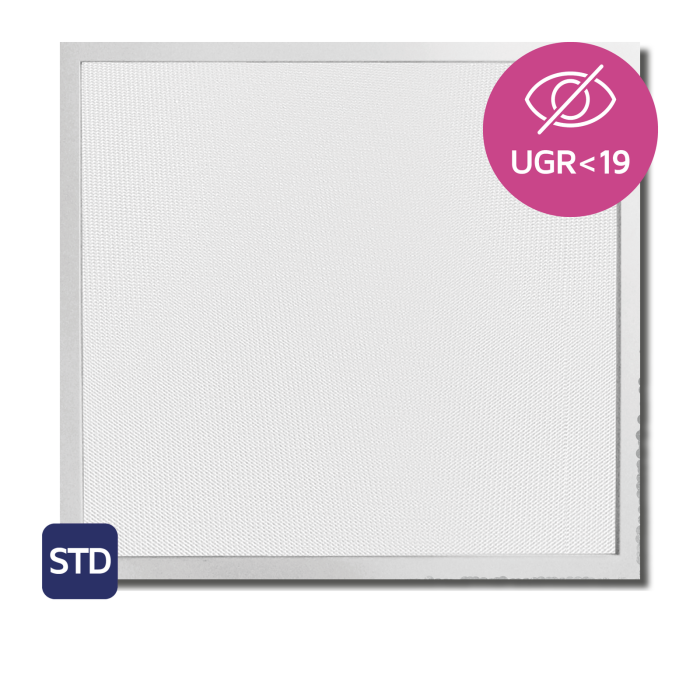

NET LED NET-39-03-30 Kingston Panel UGR<19 Tunable White 600×600 2700K-6500K 30W TP(a) Standard
- Tunable colour temperature 2700K-6500K
- Controllable via app or Dimmable/Scene Switch
- Low glare diffuser with UGR rating <19
- TP(a) flammability-rated diffuser
- PMMA Light Guide path for even light distribution
- Dimmable flicker-free driver
- Engineered back plate for rigidity
- Emergency option available
Estimated delivery 1-2 Working days
SKU
NET-39-03-30
£159.87 £191.84
Product Downloads
Product Categories
The Kingston Tunable White Panel’s colour temperature and brightness can be modified with the Tridonic 4remote BT App to improve productivity, or help subdue and relax the mind.
Control multiple or individual fittings via the App on your phone, or design ‘scenes’ with pre-set colours and brightness levels via the handheld Dimmable/Scene Switch.
No extra wiring, switches, devices or networks are required. Simply install your Panel, pair it with your phone or tablet and adjust the colour temperature (2700K-6500K) and brightness at your leisure.
Available in Emergency, Self Test Emergency, Self Test Emergency, Tunable White and Tunable White Emergency.
Key Features
- Tunable colour temperature 2700K-6500K
- Controllable via app or Dimmable/Scene Switch
- Low glare diffuser with UGR rating <19
- TP(a) flammability-rated diffuser
- PMMA Light Guide path for even light distribution
- Dimmable flicker-free driver
- Engineered back plate for rigidity
- Emergency option available
| Input Voltage Ac | 220-240V |
| Power Factor | >0.95 |
| Luminaire Efficacy | 122lm/W |
| LED Manufacturer | JUFEI |
| LED Type | SMD 4014 |
| No. of LEDs | 240 |
| Total Circuit Power | 30W |
| Electrical Class | 3 |
| Colour Rendering | >80 CRI |
| Lamp Viewing Angle | 95° |
| Dimmable | Yes |
| Flicker Free | Yes |
| Operating Temp. | 0°C to +45°C |
| Lifespan LM80 | 50,000 Hours |
| UGR Rating | Less than 19 |
| Weight | 2.9Kg |
| Driver Output Voltage | 33-42V |
| Manufacturer | Lumlux Corp. |
| Diffuser Flammability Rating | TP(a) |
| Diffuser LPG Material | PC/PMMA |
| Frame Colour | White |
| Dimming Input Type | Bluetooth Tunable |
| SKU | NET-39-03-30 |
|---|---|
| Manufacturer Part Code | NET-39-03-30 |
| Colour | White |
| Product Finish | White |
| Mounting Position | Ceiling |
| Ingress Protection | IP40 |
| Depth (mm) | 10.00 mm |
| Width (mm) | 595.00 mm |
| Length (mm) | 595.00 mm |
| Material Rating | TPa |
| Wattage | 30W |
| Voltage | 230V |
| Colour Temperature | 3000K,4000K,5500K |
| Colour Rendering Index | >80 |
| Beam Angle | 95 Degrees |
| Light Output | 3,300.00 lm |
| Luminous Efficiency | 122.00 lm/W |
| Lifetime (hrs) | 50000Hrs |
| Emergency | No |
| Corrosion Resistant | No |
| Dimmable | Yes |
| LED Driver Included? | Yes |
| Vandal Resistant | No |
| Cover material | Polycarbonate TP(a) |
| Adjustability | Fixed |
| Fire Rated | No |
| PIR Included | No |
| Bezel/Trim Colour | White |
| Cover Type | Diffuser |
| Cover Included | Yes |
| Lamp Type | LED Fixed |
| Self-Contained | No |
| c/w Photocell? | No |
| Lamp(s) Included? | Yes |
| Product Range | Kingston |
| Warranty | 5 Years |
| Is on Sale | No |
| Brand | Lumlux | |
| Luminaires | Description | Product | LED Panel | |
| Luminaires | Description | Product Type | Emergency DIM SMD4014 | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Flat Panel | |
| Luminaires | Dimensions | Depth (EF008810) | 10 mm | |
| Luminaires | Features | Adjustability | Fixed | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | Y | |
| Luminaires | Features | Cover Type | Diffuser | |
| Luminaires | Features | Dimmable | Y | |
| Luminaires | Features | Emergency Duration | 3 Hours | |
| Luminaires | Features | Ingress Protection (EF005474) | IP40 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | Y | |
| Luminaires | Features | Vandal Resistant | N | |
| Luminaires | Features | Wattage | 50 W | |
| Luminaires | General | Unit Weight | 5.4 kg | |
| Luminaires | General | Warranty | 5 Years | |
| Luminaires | Material & Finish | Bezel/Trim Colour | White | |
| Luminaires | Material & Finish | Cover Material | Polycarbonate TP(a) | |
| Luminaires | Technical Data | Light Output | 4800|5500 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 110 Lm/W | |
| Luminaires | Technical Data | Voltage | 220-240 V |
