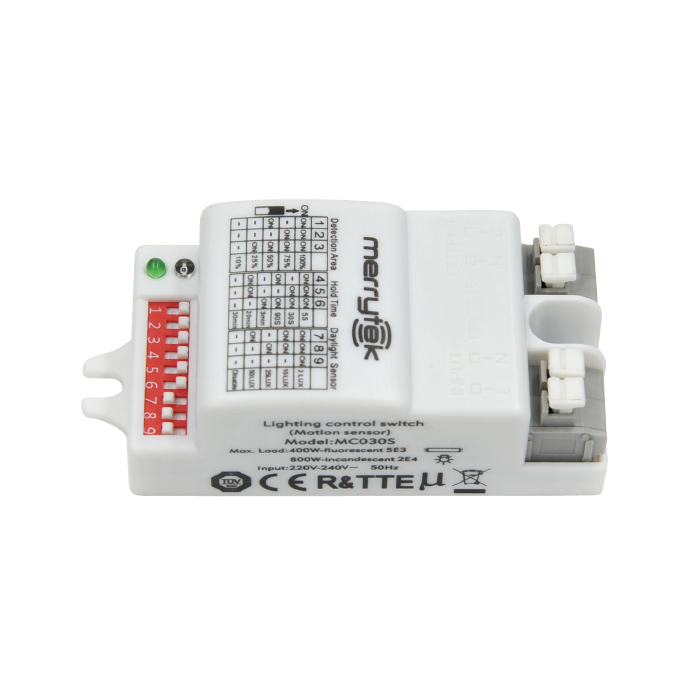

NET LED NET-42-43-02 Merrytek On/Off Microwave Sensor (Internal)
A microwave motion sensor which allows a luminaire to be motion controlled
Ideal for installation into LED NCFs and Bulkheads
- Wide detection area - up to 6m in diameter
- Detection Area can be set via DIP switches
- Illuminating Duration can be set via DIP switches
- Light Sensor can be set via DIP switches
- Universal Microwave Sensor allows you to switch any manufacturer's Luminaire up to 400W load
Estimated delivery 1-2 Working days
SKU
NET-42-43-02
£12.31 £14.77
Product Downloads
Product Categories
Related Products
NET LED NET-42-43-10 Merrytek Daylight Switch (Internal)SKU: NET-42-43-10£12.14 £14.57
Estimated delivery 1-2 Working days
NET LED NET-42-43-33 Merrytek Sensor Microwave Dimming IP65 BlackSKU: NET-42-43-33£36.98 £44.38
Estimated delivery 1-2 Working days
| Input Voltage Ac | 120-277V |
| Operating Temp. | -35°C to +55°C |
| Housing Material | Polycarbonate |
| Housing Colour | White |
| Manufacturer | Merrytek |
| Lux Levels | 5lux-150lux or Disabled |
| Max Detection Distance | 12m |
| Power Frequency | 50/60Hz |
| Detection Angle | 150° (wall mount) / 360° (ceiling mount) |
| Duration | 5s - 30min |
| SKU | NET-42-43-02 |
|---|---|
| Manufacturer Part Code | NET-42-43-02 |
| Warranty | 3 Years |
| Product Range | Merrytek |
| Product Finish | White Polycarbonate |
| Material | Polycarbonate PC |
| Colour | White |
| Mounting Method | Luminaire |
| Ingress Protection | IP20 |
| Depth (mm) | 25.50 mm |
| Width (mm) | 36.00 mm |
| Voltage | 220-240V |
| Detection Angle | 150 Degrees |
| Detection Distance | 6M |
| Time Lag Range | 5s - 30min |
| c/w PIR? | No |
| c/w Cable? | No |
| c/w Photocell? | No |
| Is on Sale | No |
| Brand | Merrytek | |
| Standalone/Built In Lighting Controls | Description | Pack Quantity | 12+ | |
| Standalone/Built In Lighting Controls | Description | Product | Sensor | |
| Standalone/Built In Lighting Controls | Description | Product Type | Motion & Photocell Ramsey & Heydon | |
| Standalone/Built In Lighting Controls | Dimensions | Width (EF008808) | 63 mm | |
| Standalone/Built In Lighting Controls | Features | Dimmable | N | |
| Standalone/Built In Lighting Controls | Features | Maximum Load (W) | 400 W | |
| Standalone/Built In Lighting Controls | Features | Supply Voltage | 220-240 V | |
| Standalone/Built In Lighting Controls | Features | c/w PIR | N | |
| Standalone/Built In Lighting Controls | Features | c/w Photocell | Y | |
| Standalone/Built In Lighting Controls | General | Warranty | 3 Years | |
| Standalone/Built In Lighting Controls | Material & Finish | Colour (EF000007) | Black | |
| Standalone/Built In Lighting Controls | Technical Data | Minimum Operating Temperature | -15 Degrees C |
