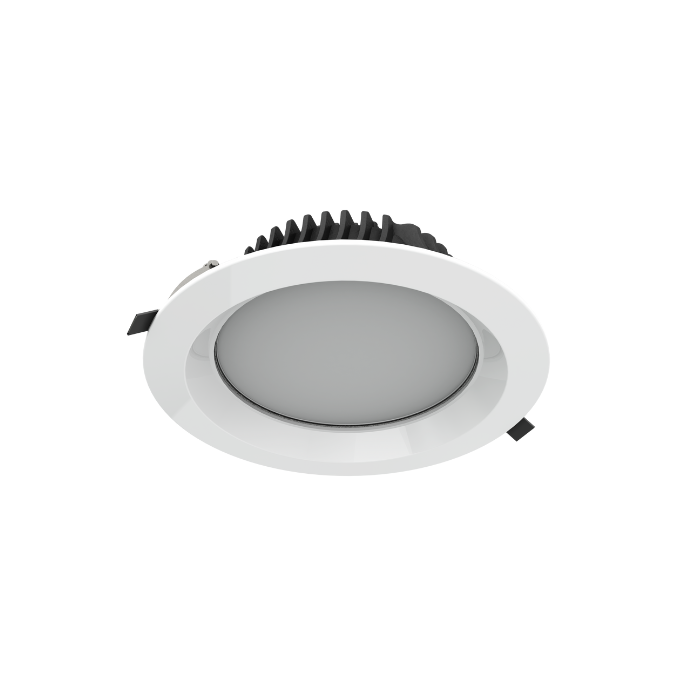

NET LED NET-49-05-87 Caxton Downlight Tri-Colour 8″ 20W TP(a) Emergency/Self Test
An 8? emergency circular Downlight with an IP65 rated front face built-in driver and slim profile
- 3H Emergency function
- Ø200-210mm cut out size
- TP(a) flammability-rated diffuser
- Selectable 3000K, 4000K or 5500K colour temperature
- Shatterproof polycarbonate diffuser
- Stainless steel retaining clips
- IP65 rated fascia
Estimated delivery 1-2 Working days
SKU
NET-49-05-87
£64.34 £77.21
Product Downloads
Product Categories
Related Products
NET LED NET-49-05-89 Caxton Downlight Tri-Colour 8″ 20W TP(a) Dimmable Emergency/Self TestSKU: NET-49-05-89£98.63 £118.36
Estimated delivery 1-2 Working days- NET LED NET-49-05-82 Caxton Downlight Tri-Colour 6″ 16W TP(a) Emergency/Self TestSKU: NET-49-05-82£62.05 £74.46
Estimated delivery 1-2 Working days
NET LED NET-42-43-24 DALI Dimmer SwitchSKU: NET-42-43-24£47.71 £57.25
Estimated delivery 1-2 Working days
The Caxton Range of recessed downlights are designed to make retrofitting as easy as possible. They fit most existing holes with cut out sizes ranging from Ø90-210mm, and the spring clips hold the fitting in place allowing for quick and easy installation.
Their IP65 rated fascia protects the front of the downlight from dust and moisture and, in the event of a fire, the TP(a) flammability rated diffuser will self-extinguish, minimising the spread of the flame.
Choose the required colour temperature at the time of installation with the built-in Tri-Colour feature (3000K, 4000K or 5500K).
Many options are available including 3″, 4″, 6″, 8″, Emergency, Self Test Emergency, Dimmable, Dimmable Emergency, Dimmable Self Test Emergency, Dimmable DALI Emergency.
Key Features
- 3H Emergency function
- Ø200-210mm cut out size
- TP(a) flammability-rated diffuser
- Selectable 3000K, 4000K or 5500K colour temperature
- Shatterproof polycarbonate diffuser
- Stainless steel retaining clips
- IP65 rated fascia
| Input Voltage Ac | 220-240V |
| Power Factor | >0.9 |
| Luminaire Efficacy | 105lm/W |
| LED Manufacturer | Honglitronic |
| LED Type | SMD 2835 |
| No. of LEDs | 120 |
| Total Circuit Power | 20W |
| Electrical Class | 3 |
| Colour Rendering | >80 CRI |
| Lamp Viewing Angle | 110° |
| Dimmable | No |
| Flicker Free | Yes |
| Operating Temp. | 0°C to +45°C |
| Lifespan LM80 | 50,000 Hours |
| UGR Rating | More than 19 |
| Housing Material | Aluminium |
| Weight | 0.87Kg |
| Battery Pack | LiFePO4 3.2V 4.5Ah |
| Driver Output Voltage | 30-44V |
| Housing Colour | White |
| Manufacturer | CREP Optoelectronics |
| Diffuser Flammability Rating | TP(a) |
| Hours Maintained | 3H |
| Luminous Flux Factor | 15% |
| Self Test | No |
| Emergency Kit | 3 Year Warranty |
| Emergency Operation | >3H |
| Emergency Pack | Streamer |
| SKU | NET-49-05-87 |
|---|---|
| Manufacturer Part Code | NET-49-05-87 |
| Warranty | 5 Years |
| Product Range | Caxton |
| Product Finish | White Aluminium |
| Material | Aluminium |
| Colour | White |
| Mounting Position | Ceiling |
| Ingress Protection | IP65 |
| Depth (mm) | 45.00 mm |
| Overall Diameter (mm) | 228.00 mm |
| Cut out diameter (mm) | 210.00 mm |
| Voltage | 220-240V |
| Wattage | 20W |
| Colour Temperature | 5500K, 3000K |
| Colour Rendering Index | >80 |
| Light Output | 21,002,200.00 lm |
| Luminous Efficiency | 105.00 lm/W |
| Beam Angle | 110 Degrees |
| Lifetime (hrs) | 50000Hrs |
| LED Driver Included? | Yes |
| Lamp Type | LED Fixed |
| Lamp(s) Included? | Yes |
| Dimmable | No |
| Fire Rated | No |
| Emergency | Yes |
| Emergency Duration | 3 Hours |
| PIR Included | No |
| Cover Included | No |
| Operating temperature | 0|45 Degrees C |
| Corrosion Resistant | No |
| Ballast/Starter Included | No |
| Vandal Resistant | No |
| Adjustability | Fixed |
| Is on Sale | No |
| Brand | Crep | |
| Luminaires | Description | Product | Downlight | |
| Luminaires | Description | Product Type | Emergency DIM SMD2835 | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Downlight | |
| Luminaires | Dimensions | Cut-Out Diameter | 165|175 mm | |
| Luminaires | Dimensions | Depth (EF008810) | 45 mm | |
| Luminaires | Dimensions | Overall Diameter | 190 mm | |
| Luminaires | Features | Adjustability | Fixed | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | N | |
| Luminaires | Features | Dimmable | Y | |
| Luminaires | Features | Emergency Duration | 3 Hours | |
| Luminaires | Features | Ingress Protection (EF005474) | IP65 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | Y | |
| Luminaires | Features | Vandal Resistant | N | |
| Luminaires | Features | Wattage | 16 W | |
| Luminaires | General | Unit Weight | 0.63 kg | |
| Luminaires | General | Warranty | 5 Years | |
| Luminaires | Material & Finish | Housing Colour | White | |
| Luminaires | Material & Finish | Housing Material | Aluminium | |
| Luminaires | Technical Data | Light Output | 1600|1700 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 105 Lm/W | |
| Luminaires | Technical Data | Voltage | 220-240 V |
