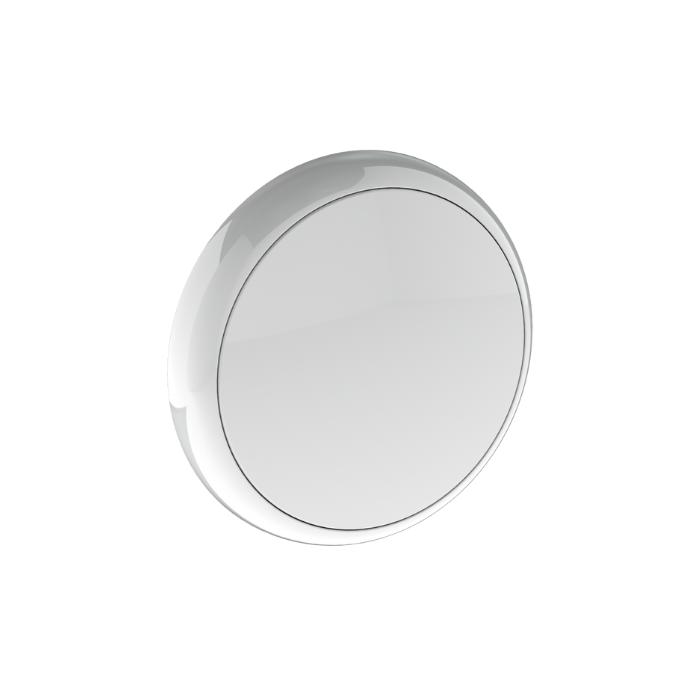

NET LED NET-41-06-06 Shelford Slim Bulkhead Tri-Colour IP65 12W/18W Motion Sensor
- Detection range from 2m to 10m
- Hold time from 5 seconds to 10 minutes
- Daylight threshold
- Selectable power setting (12W or 18W) at the time of installation
- Selectable 3000K, 4000K or 6500K colour temperature
- IP65 rated housing
- 70mm depth - pefect for those areas with limited space
- 5 cable entry points - including rear and side - for easy installation and wiring
- Tamper proof screws for the diffuser
- Push connector installation
This option’s integral microwave sensor is engineered to detect motion with precision. When an area is unoccupied, the sensor automatically dims the light, significantly reducing energy consumption.
With the ability to choose between three distinct colour temperature (3000K, 4000K or 6000K), this Bulkhead allows you to provide customised lighting solutions to meet the unique preferences of your customers. Whether they require warm, cool, or daylight-like lighting, this fitting delivers it all.
Versatility meets efficiency with the ability to choose between two power settings – 12W or 18W. Your customers can adapt the brightness to suit the specific lighting requirements of their projects, helping them save energy and reduce operating costs.
The slim Shelford Bulkhead boasts an IP65 rated housing, making it resistant to dust and water ingress. This ensures durability and reliability, even in challenging environments, making it suitable for both indoor and outdoor installations.
The space-saving deisgn meets aesthetic appeal with a depth of just 75mm. Its sleek profile not only adds a modern touch but also simplifies installation in areas with limited clearance, making it a versatile choice for various applications.
Key Features
- Detection range from 2m to 10m
- Hold time from 5 seconds to 10 minutes
- Daylight threshold
- Selectable power setting (12W or 18W) at the time of installation
- Selectable 3000K, 4000K or 6500K colour temperature
- IP65 rated housing
- 70mm depth - pefect for those areas with limited space
- 5 cable entry points - including rear and side - for easy installation and wiring
- Tamper proof screws for the diffuser
- Push connector installation
Input Voltage Ac | 220-240V |
Power Factor | >0.8 |
Luminaire Efficacy | 100lm/W |
LED Manufacturer | Jingrui |
LED Type | SMD 2835 |
No. of LEDs | 56 |
Total Circuit Power | 12W/18W |
Electrical Class | 2 |
Colour Rendering | >80 CRI |
Lamp Viewing Angle | 120° |
Dimmable | No |
Operating Temp. | -10°C to +40°C |
Lifespan LM80 | 30,000 Hours |
UGR Rating | >22 |
Housing Material | Polycarbonate |
Weight | 0.682Kg |
Housing Colour | White |
Diffuser Material | Polycarbonate |
Fire Rating | V2 |
Manufacturer | Senselite Co. Ltd |
Max Detection Distance | 10m |
Max Mounting Height | 5m |
Duration | 5sec/1min/3min/10min |
Max Detection Area | 10m |
Sensor Manufacturer | Foxlux |
Corridor Function | No |
SKU | NET-41-06-06 |
---|---|
Manufacturer Part Code | NET-41-06-06 |
Is on Sale | No |
