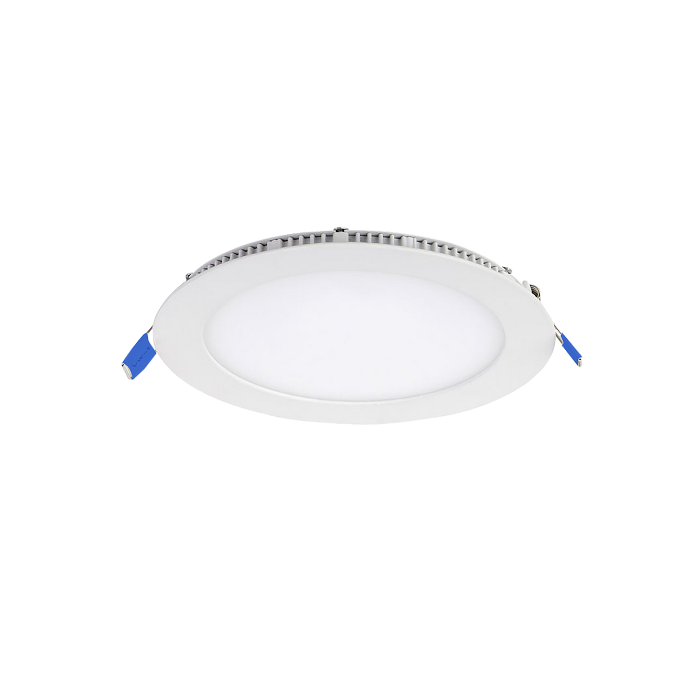

NET LED NET-53-05-92 Ashley Slim Downlight 4000K 8″ 18W Emergency/Self Test
NETLED NET-53-05-92 Emer Dwn/Lgt 18W 8in
- 3H Emergency function
- Ø210mm cut out size
- Slim, low profile design
- Stainless steel retaining clips
- Single colour temperature 4000K
- 10mm depth
Estimated delivery 1-2 Working days
SKU
NET-53-05-92
£45.48 £54.58
Product Downloads
Product Categories
The Ashley Range of recessed downlights have a notably slim, low profile design (10mm) which make them the perfect solution for those shallow ceiling voids where space is limited.
Their stainless steel retaining clips hold the fitting in place allowing for quick and easy installation.
Many options are available including 4″, 6″, 8″ and Emergency.
Key Features
- 3H Emergency function
- Ø210mm cut out size
- Slim, low profile design
- Stainless steel retaining clips
- Single colour temperature 4000K
- 10mm depth
| Input Voltage Ac | 220-240V |
| Power Factor | >0.5 |
| Luminaire Efficacy | 97lm/W |
| LED Manufacturer | MTC |
| LED Type | SMD 2835 |
| No. of LEDs | 110 |
| Total Circuit Power | 18W |
| Electrical Class | 2 |
| Colour Rendering | >80 CRI |
| Lamp Viewing Angle | 120° |
| Dimmable | No |
| Flicker Free | Yes |
| Operating Temp. | 0°C to +35°C |
| Lifespan LM80 | 35,000 Hours |
| UGR Rating | 27 |
| Housing Material | Aluminium |
| Weight | 0.42Kg |
| Battery Pack | LiFePO4 3.2V 4.5Ah |
| Driver Output Voltage | 22-42V |
| Housing Colour | White |
| Manufacturer | Kingsway Lighting |
| Hours Maintained | 3H |
| Luminous Flux Factor | 13.63% |
| Self Test | No |
| Emergency Kit | 3 Year Warranty |
| Emergency Operation | >3H |
| Emergency Pack | Streamer |
| SKU | NET-53-05-92 |
|---|---|
| Manufacturer Part Code | NET-53-05-92 |
| Warranty | 3 Years |
| Product Range | Ashley |
| Product Finish | White Aluminium |
| Material | Aluminium |
| Colour | White |
| Mounting Position | Ceiling |
| Ingress Protection | IP20 |
| Depth (mm) | 10.00 mm |
| Overall Diameter (mm) | 225.00 mm |
| Cut out diameter (mm) | 210.00 mm |
| Voltage | 220-240V |
| Wattage | 18W |
| Colour Temperature | 4000K |
| Colour Rendering Index | >80 |
| Light Output | 1,750.00 lm |
| Luminous Efficiency | 97.00 lm/W |
| Beam Angle | 120 Degrees |
| Lifetime (hrs) | 35000Hrs |
| LED Driver Included? | Yes |
| Lamp Type | LED Fixed |
| Lamp(s) Included? | Yes |
| Dimmable | No |
| Fire Rated | No |
| Emergency | Yes |
| Emergency Duration | 3 Hours |
| PIR Included | No |
| Cover Included | No |
| Operating temperature | 0|35 Degrees C |
| Corrosion Resistant | No |
| Ballast/Starter Included | No |
| Vandal Resistant | No |
| Adjustability | Fixed |
| Is on Sale | No |
| Brand | Kingsway | |
| Luminaires | Description | Product | Downlight | |
| Luminaires | Description | Product Type | Ashley Slim LED Emergency | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Downlight | |
| Luminaires | Dimensions | Cut-Out Diameter | 175 mm | |
| Luminaires | Dimensions | Depth (EF008810) | 10 mm | |
| Luminaires | Dimensions | Overall Diameter | 190 mm | |
| Luminaires | Features | Adjustability | Fixed | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | N | |
| Luminaires | Features | Dimmable | N | |
| Luminaires | Features | Emergency Duration | 3 Hours | |
| Luminaires | Features | Ingress Protection (EF005474) | IP20 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | Y | |
| Luminaires | Features | Vandal Resistant | N | |
| Luminaires | Features | Wattage | 15 W | |
| Luminaires | General | Unit Weight | 0.40 kg | |
| Luminaires | General | Warranty | 3 Years | |
| Luminaires | Material & Finish | Housing Colour | White | |
| Luminaires | Material & Finish | Housing Material | Aluminium | |
| Luminaires | Technical Data | Light Output | 1350 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 90 Lm/W | |
| Luminaires | Technical Data | Voltage | 220-240 V |
