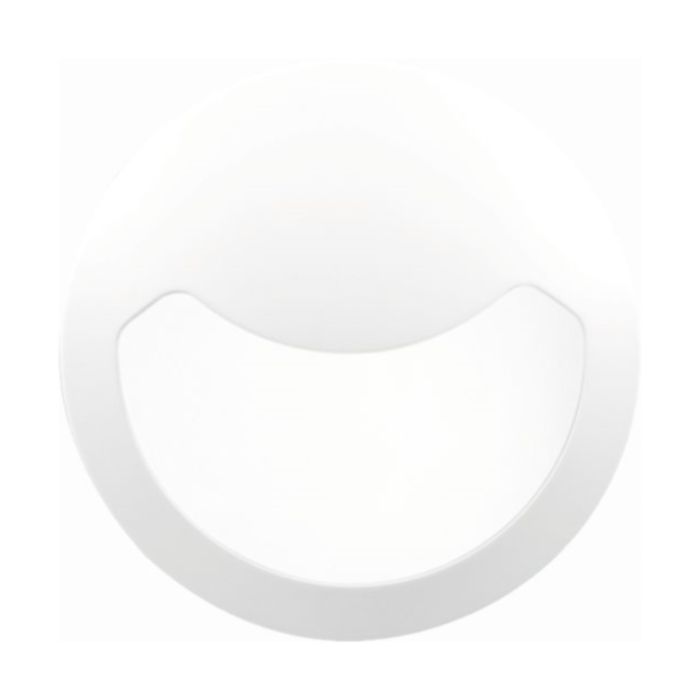

Ovia OV9505WH9 INCEPTOR EVO 10W LED Utility Eyelid Bulkhead - White

Our Utility range offers fast, easy installation with modern design, including pre-installed microwave options for automated control whilst saving energy. It covers retrofit and new installations, providing versatile features such as DALI, switch dim, and analogue dimming. Emergency options ensure compliance with BS 5266-1, offering self-test and DALI for automated monitoring, reducing maintenance costs.

Cool white LED output
IP65 rated
Prewired Flowâ„¢ Connector
White finish

Stock available 2-3 Working days

SKU

OVIA-OV9505WH9

£36.35 £43.62

Product Downloads

Product Categories

More Information
SKU	OVIA-OV9505WH9
Manufacturer Part Code	OV9505WH9
Warranty	5 Years
Product Range	Inceptor Evo
Product Finish	White
Material	Polycarbonate
Colour	Pure White RAL 9010
Mounting Position	Surface
Ingress Protection	IP65
Impact Protection	IK08
Depth (mm)	93.00 mm
Overall Diameter (mm)	308.00 mm
Voltage	220-240V
Wattage	10W
Colour Temperature	4200K
Colour Rendering Index	68.4
Light Output	543.00 lm
Luminous Efficiency	54.00 lm/W
Beam Angle	120 Degrees
LED Driver Included?	Yes
Emergency	No
Lamp Type	LED Fixed
Lamp(s) Included?	Yes
Number of Lamps	1
c/w Photocell?	No
PIR Included	No
c/w Microwave	No
Dimmable	No
Fire Rated	No
Face Shape	Circular
Cover Type	Diffuser
Cover Colour	Opal
Cover Included	Yes
Adjustability	Fixed
Self-Contained	No
Vandal Resistant	No
Corrosion Resistant	Yes
Ballast/Starter Included	No
Cover material	Polycarbonate
Is on Sale	No

Brand	Inceptor Evo
Luminaires \| Description \| Product	Bulkhead
Luminaires \| Description \| Product Type	Utility LED 4200K 3hr IP65
Luminaires \| Description \| Product	Luminaire
Luminaires \| Description \| Type	Bulkhead
Luminaires \| Dimensions \| Cut-Out Diameter	286 mm
Luminaires \| Dimensions \| Depth (EF008810)	93 mm
Luminaires \| Dimensions \| Overall Diameter	308 mm
Luminaires \| Dimensions \| Recess Depth	80 mm
Luminaires \| Features \| Adjustability	Fixed
Luminaires \| Features \| Ballast/Starter Included	N
Luminaires \| Features \| Corrosion Resistant	Y
Luminaires \| Features \| Cover Included	Y
Luminaires \| Features \| Cover Type	Diffuser
Luminaires \| Features \| Dimmable	Y
Luminaires \| Features \| Emergency Type	Maintained
Luminaires \| Features \| Ingress Protection (EF005474)	IP65
Luminaires \| Features \| Lamp(s) Included?	Y
Luminaires \| Features \| Microwave Sensor Included	Y
Luminaires \| Features \| PIR Included	N
Luminaires \| Features \| Self-Contained	Y
Luminaires \| Features \| Vandal Resistant	N
Luminaires \| Features \| Wattage	10 W
Luminaires \| General \| CE Approved	N
Luminaires \| General \| Standards	BS EN 60598-1; BS EN 60598-2-22; BS EN IEC 60598-2-1; BS EN 61347-1; BS EN 61347-2-13; BS EN 61347-2-7; BS EN 55015; BS EN 61000-3-2; BS EN 61000-3-3
Luminaires \| General \| Unit Weight	1.83 kg
Luminaires \| General \| Warranty	5 Years
Luminaires \| Material & Finish \| Cover Colour	Opal
Luminaires \| Material & Finish \| Cover Material	Polycarbonate
Luminaires \| Material & Finish \| Housing Colour	Pure White RAL 9010
Luminaires \| Material & Finish \| Housing Material	Polycarbonate
Luminaires \| Technical Data \| Light Output	1560 Lm
Luminaires \| Technical Data \| Luminous Efficiency	89 Lm/W
Luminaires \| Technical Data \| Voltage	220-240 V
