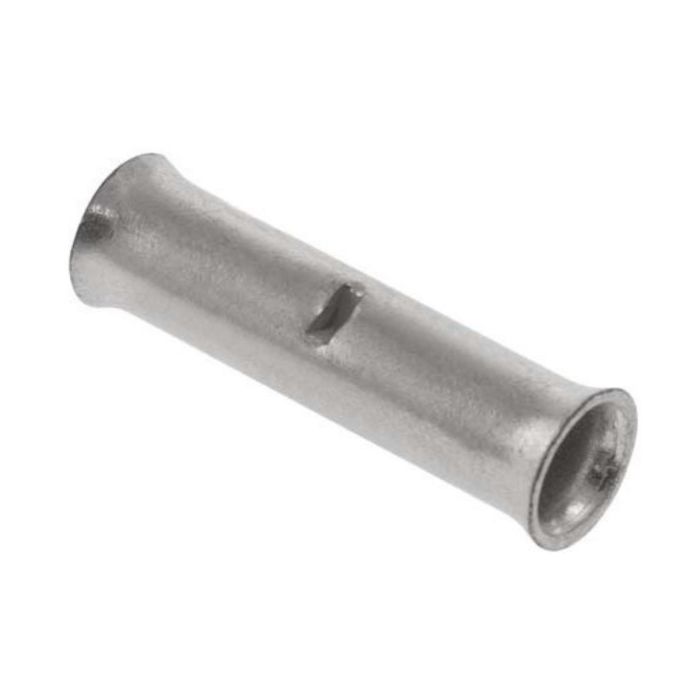

Unicrimp QB16 16mm Copper Tube Butt Splice Terminal Pack=10
Q-Crimp uninsulated copper tube terminals and copper tube butt splices are available in a full range of sizes to fit cables from 1.8mm≤ to 240mm≤. Each terminal is manufactured with bell-mouthed entry to assist in simple cable insertion and an inspection hole to ensure the correct cable placement and therefore maximise the crimp performance and tensile strength of every terminal.
- 16mm≤ Cable Size
- Flared Entry
- Crimp or Solder
- Working temp of 180∞C
Stock available Next working day
SKU
UNIC-QB16
£2.25 £2.70
Product Categories
Q-Crimp uninsulated copper tube terminals and copper tube butt splices are available in a full range of sizes to fit cables from 1.8mm≤ to 240mm≤. Each terminal is manufactured with bell-mouthed entry to assist in simple cable insertion and an inspection hole to ensure the correct cable placement and therefore maximise the crimp performance and tensile strength of every terminal.
| SKU | UNIC-QB16 |
|---|---|
| Manufacturer Part Code | QB16 |
| Is on Sale | No |
| Brand | Q-Crimp | |
| Cable Terminations | Description | Product | Splice | |
| Cable Terminations | Description | Product Type | Butt Copper Tube | |
| Cable Terminations | Description | Qualifier | All Copper Tube Butt Splices are double annealed electro tinned copper and have bell mouth entry for ease of cable insertion. Standard working temperature of 180°C. Copper Tube Butt Splices are for use on multi-stranded cables from 1.5mm² to 240mm². | |
| Cable Terminations | Dimensions | Diameter (EF000551) | 6.8 mm | |
| Cable Terminations | Dimensions | Length (EF004265) | 20 mm | |
| Cable Terminations | Features | Cable Size Range | 16 mm2 | |
| Cable Terminations | Features | Insulated | No | |
| Cable Terminations | General | Standards | ANSI/UL 486A-486B CAN/CSA-C22.2 No 65-13 ANSI/UL 486C CSA-C22.2 No. 188-13 |
