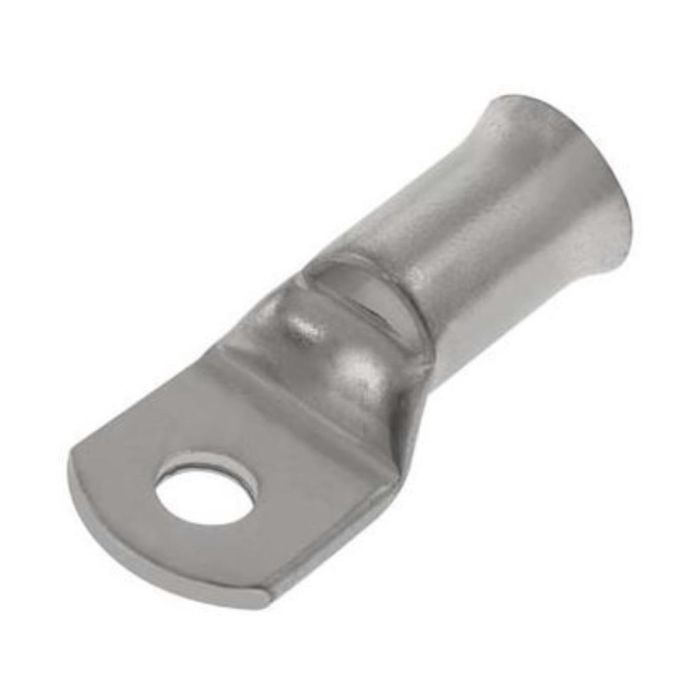

Unicrimp QCT015-4 4mm Copper Tube Lug (for 1.5mm2 Cable) Pack=25
Q-Crimp uninsulated copper tube terminals and copper tube butt splices are available in a full range of sizes to fit cables from 1.8mm≤ to 240mm≤. Each terminal is manufactured with bell-mouthed entry to assist in simple cable insertion and an inspection hole to ensure the correct cable placement and therefore maximise the crimp performance and tensile strength of every terminal.
- 1.5mm≤ Conductor Size
- Flared Entry
- Crimp or Solder
- Inspection Window
Out of stock Please call sales TBC
SKU
UNIC-QCT015-4
£2.70 £3.24
Product Categories
Related Products
Unicrimp QCT015-3 3mm Copper Tube Lug (for 1.5mm2 Cable) Pack=25SKU: UNIC-QCT015-3£2.70 £3.24
Out of stock Please call sales TBC
Unicrimp QCT015-5 5mm Copper Tube Lug (for 1.5mm2 Cable) Pack=25SKU: UNIC-QCT015-5£2.70 £3.24
Out of stock Please call sales TBC
Q-Crimp uninsulated copper tube terminals and copper tube butt splices are available in a full range of sizes to fit cables from 1.8mm≤ to 240mm≤. Each terminal is manufactured with bell-mouthed entry to assist in simple cable insertion and an inspection hole to ensure the correct cable placement and therefore maximise the crimp performance and tensile strength of every terminal.
| SKU | UNIC-QCT015-4 |
|---|---|
| Manufacturer Part Code | QCT015-4 |
| Product Range | Q-Crimp |
| Product Finish | Tinned |
| Terminal material | Copper |
| Insulated | No |
| Width (mm) | 8.00 mm |
| Length (mm) | 16.00 mm |
| Cable Size Range | 1.5 mm2 |
| Hole/Stud Size | 4 mm |
| Qualifier | All copper tube lug terminals are double annealed electro tinned copper and have bell mouth entry for ease of cable insertion. Standard working temperature of 180°C. Copper Tube Terminals are for use on multi-stranded cables from 1.5mm² to 240mm². |
| Standards | ANSI/UL 486A-486B CAN/CSA-C22.2 No. 65 ANSI/UL 486C CSA-C22.2 No. 188 Tensile performance requirements to IEC 61238-1-1: 2018 |
| Working temperature | 180 Degrees C |
| Product Type1 | Copper Tube for 1.5mm2 Cable |
| Dimensions1 | 4mm |
| Is on Sale | No |
| Brand | Q-Crimp | |
| Cable Terminations | Description | Product | Lug | |
| Cable Terminations | Description | Product Type | Copper Tube for 1.5mm2 Cable | |
| Cable Terminations | Description | Qualifier | All copper tube lug terminals are double annealed electro tinned copper and have bell mouth entry for ease of cable insertion. Standard working temperature of 180°C. Copper Tube Terminals are for use on multi-stranded cables from 1.5mm² to 240mm². | |
| Cable Terminations | Dimensions | Length (EF004265) | 16 mm | |
| Cable Terminations | Features | Cable Size Range | 1.5 mm2 | |
| Cable Terminations | Features | Hole/Stud Size | 4 mm | |
| Cable Terminations | Features | Insulated | No |
