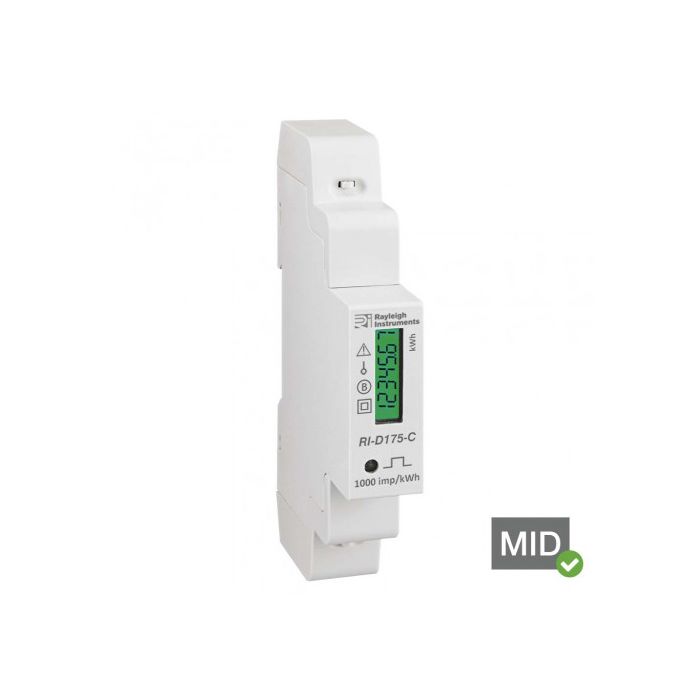

Rayleigh RI-D175-C Single Phase Energy Meter MID Approved 45A
Rayleigh Instruments RI-D175 Single Phase Energy Meter - MID Certified
- 45A direct connected
- Single module width DIN rail mounted
- Import active energy measurement
- Dual tariff
- Modbus + Pulse, Mbus + Pulse or Pulse only versions
- MID B+D Certified
- LED pulse indication
Estimated delivery 3-5 Working Days
SKU
RAYL-05200500
£34.39 £41.27
Product Categories
The RI-D175 Series forms part of the Rayleigh Instruments family of MID Certified energy meters, designed for the accurate measurement of energy consumption in residential, commercial, industrial, and utility applications. The direct connection of the unit to a 45A ac circuit means the meter does not require additional current transformers.This meter is housed in a single module width case suitable for DIN rail mounting, with a high definition backlit LCD display allowing easy reading of the recorded values.Its MID status means the RI-D175 has been tested for build quality and accuracy and is certified for billing purposes.Displayed ParametersImport Active Energy (kWh)
Voltage (V)
Current (A)
Active power (W)
Power factor (Unity)
Frequency (Hz)
| SKU | RAYL-05200500 |
|---|---|
| Manufacturer Part Code | 5200500 |
| Is on Sale | No |
