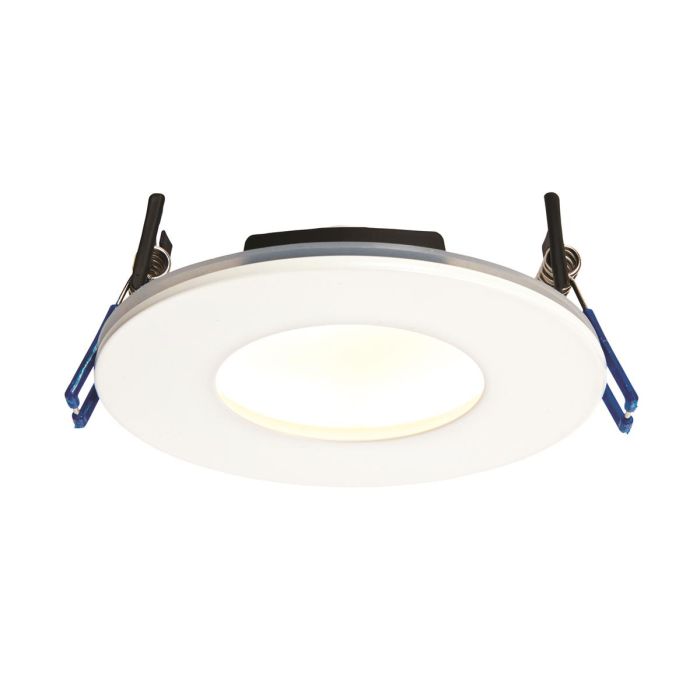

Saxby 69880 OrbitalPLUS 9W LED Fire Rated Downlight 3000K IP65 White 97mm Cut-out
The OrbitalPlus family is a range of slimline recessed downlights which are fire rated and IP65 rated. It’s anti glare dome projects up to 460 lumens of warm or cool white light. This unique and patented design can be covered with insulation and fits into shallow ceiling voids. Supplied with a dimmable driver, it is available with warm white or cool white LEDs and in three finishes, satin nickel, chrome and matt white.
- Dimmable
- Matt white
- Constructed from die cast aluminium alloy & steel
- Complete with LED driver
- 9W LED module (SMD 2835) Warm White (Included)
- K: 3000 Lm: 460 Lm/W: 51
- IP65. Suitable for bathroom zone 2 Suitable for bathroom zone 1 if used in conjunction with a 30MA RCD
- Fire rated to 30, 60 & 90 minutes
- Proj: 2mm Dia: 110mm H: 44mm
- Class 2
- Cut hole Dia: 97mm
Out of stock Please call sales TBC
SKU
SAXB-69880
Product Downloads
Product Categories
The OrbitalPlus family is a range of slimline recessed downlights which are fire rated and IP65 rated. It’s anti glare dome projects up to 460 lumens of warm or cool white light. This unique and patented design can be covered with insulation and fits into shallow ceiling voids. Supplied with a dimmable driver, it is available with warm white or cool white LEDs and in three finishes, satin nickel, chrome and matt white.
| SKU | SAXB-69880 |
|---|---|
| Manufacturer Part Code | 69880 |
| Warranty | 5 Years |
| Product Range | OrbitalPLUS |
| Product Finish | Matt White |
| Material | Die Cast Aluminium |
| Colour | Aluminium |
| Bezel/Trim Colour | Matt White |
| Mounting Position | Ceiling |
| Ingress Protection | IP65 |
| Number of Lamps | 1 |
| Height (mm) | 2.00 mm |
| Overall Diameter (mm) | 110.00 mm |
| Cut out diameter (mm) | 97.00 mm |
| Voltage | 220-240V |
| Wattage | 9W |
| Colour Temperature | 3000K |
| Colour Rendering Index | 80 |
| Light Output | 460.00 lm |
| Luminous Efficiency | 51.00 lm/W |
| Beam Angle | 120 Degrees |
| Lifetime (hrs) | 30000Hrs |
| Energy Rating | A+ |
| LED Driver Included? | Yes |
| Lamp Type | LED Fixed |
| Lamp(s) Included? | Yes |
| Dimmable | Yes |
| Fire Rated | Yes |
| Emergency | No |
| Face Shape | Circular |
| PIR Included | No |
| Cover Type | Clear Cover |
| Cover Colour | Clear |
| Cover Included | Yes |
| Corrosion Resistant | No |
| Ballast/Starter Included | No |
| Vandal Resistant | No |
| Adjustability | Fixed |
| Is on Sale | No |
| Brand | Sleek |
| Description | Product Type | Sleek IP20 |
| Description | Product | Link Lead |
