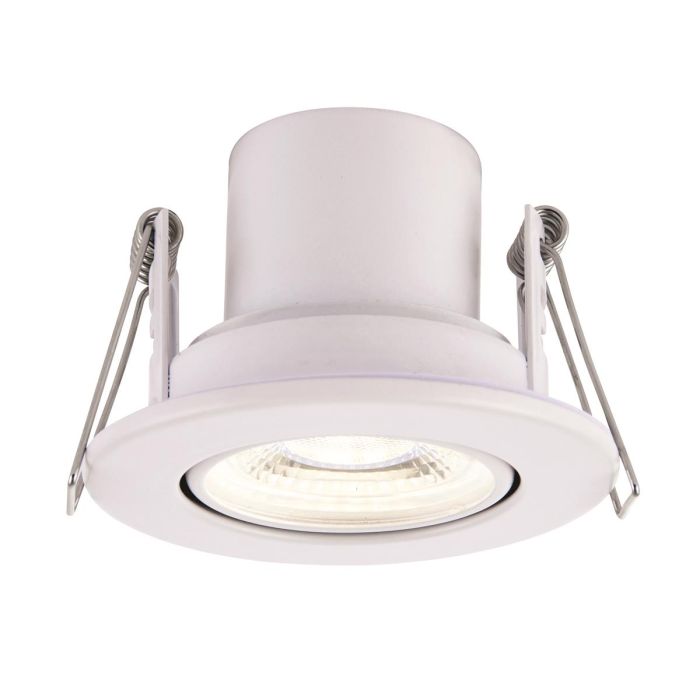

Saxby 78521 ShieldECO 8.5W LED Tilt Fire Rated Downlight 4000K 70mm Cut-out White
Ideal for domestic and commercial use, the ShieldECO 800 tilt has all the features required of an everyday downlight. Fire rated and dimmable. Tool-less and quick to install due to the 4 way push fit screwless terminal block. The 8.5W LED module produces 820 lumens of cool white light. Slimline in design with white finish. Other options are available in the range.
- Fully adjustable
- Dimmable
- 20 degree tilt
- Matt white & clear acrylic
- Constructed from steel & acrylic
- Complete with integrated control gear
- 8.5W LED module (SMD 2835) Cool White (Included) K: 4000 Lm: 820 Lm/W: 96
- Fire rated to 30, 60 & 90 minutes
- Proj: 3-15mm Dia: 85mm H: 60mm
- Class 2
- Cut hole Dia: 70mm
- Samsung LED
Estimated delivery 1-2 Working days
SKU
SAXB-78521
Product Downloads
Product Categories
Ideal for domestic and commercial use, the ShieldECO 800 tilt has all the features required of an everyday downlight. Fire rated and dimmable. Tool-less and quick to install due to the 4 way push fit screwless terminal block. The 8.5W LED module produces 820 lumens of cool white light. Slimline in design with white finish. Other options are available in the range.
| SKU | SAXB-78521 |
|---|---|
| Manufacturer Part Code | 78521 |
| Warranty | 5 Years |
| Product Range | ShieldECO |
| Product Finish | White Clear |
| Material | Steel |
| Colour | Matt White |
| Bezel/Trim Colour | Matt White |
| Mounting Position | Ceiling |
| Ingress Protection | IP20 |
| Number of Lamps | 1 |
| Depth (mm) | 56.40 mm |
| Overall Diameter (mm) | 85.00 mm |
| Cut out diameter (mm) | 70.00 mm |
| Voltage | 220-240V |
| Wattage | 8.5W |
| Colour Temperature | 4000K |
| Colour Rendering Index | 80 |
| Light Output | 820.00 lm |
| Luminous Efficiency | 96.00 lm/W |
| Beam Angle | 60 Degrees |
| Lifetime (hrs) | 30000Hrs |
| Energy Rating | A+ |
| LED Driver Included? | Yes |
| Lamp Type | LED Fixed |
| Lamp(s) Included? | Yes |
| Dimmable | Yes |
| Fire Rated | Yes |
| Emergency | No |
| Face Shape | Circular |
| PIR Included | No |
| Cover Type | Lens |
| Cover Colour | Clear |
| Cover Included | Yes |
| Corrosion Resistant | No |
| Ballast/Starter Included | No |
| Vandal Resistant | No |
| Cover material | Acrylic |
| Adjustability | Adjustable |
| Is on Sale | No |
| Brand | ShieldECO | |
| Luminaires | Description | Product | Downlight | |
| Luminaires | Description | Product Type | ShieldECO LED 3000K 800 Tilt | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Downlight | |
| Luminaires | Dimensions | Cut-Out Diameter | 70 mm | |
| Luminaires | Dimensions | Depth (EF008810) | 56.4 mm | |
| Luminaires | Dimensions | Overall Diameter | 85 mm | |
| Luminaires | Dimensions | Recess Depth | 90 mm | |
| Luminaires | Features | Adjustability | Adjustable | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | Y | |
| Luminaires | Features | Cover Type | Lens | |
| Luminaires | Features | Dimmable | Y | |
| Luminaires | Features | Ingress Protection (EF005474) | IP20 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | N | |
| Luminaires | Features | Vandal Resistant | N | |
| Luminaires | Features | Wattage | 8.5 W | |
| Luminaires | General | CE Approved | Y | |
| Luminaires | General | Energy Efficiency Class | A+ | |
| Luminaires | General | Unit Weight | 0.248 kg | |
| Luminaires | General | Warranty | 5 Years | |
| Luminaires | Material & Finish | Bezel/Trim Colour | Matt White | |
| Luminaires | Material & Finish | Cover Colour | Clear | |
| Luminaires | Material & Finish | Cover Material | Acrylic | |
| Luminaires | Material & Finish | Housing Colour | Matt White | |
| Luminaires | Material & Finish | Housing Material | Steel | |
| Luminaires | Technical Data | Light Output | 750 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 88 Lm/W | |
| Luminaires | Technical Data | Voltage | 220-240 V |
