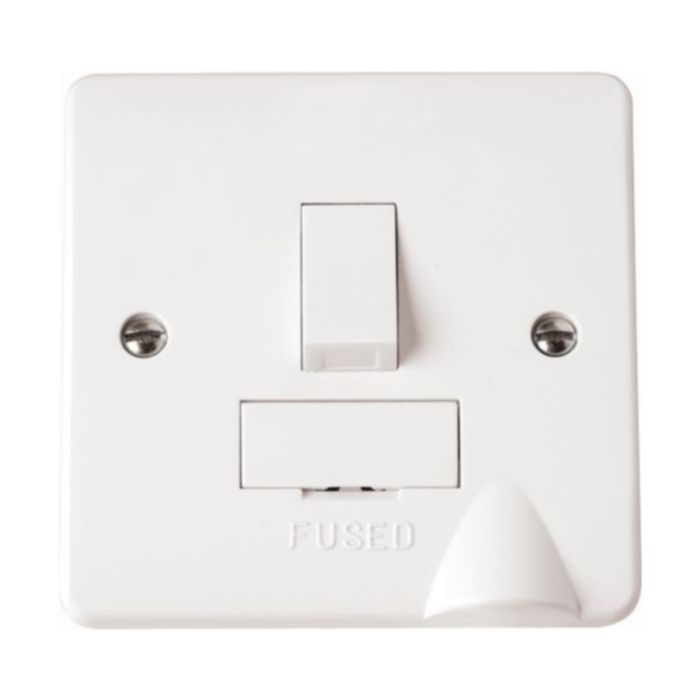

Click Mode CMA051 13A DP Switched FCU With Optional Flex Outlet
Click CMA051 Mode Connection Unit DP Switched Fused c/w FO 13A White from Click Scolmore is perfect for electrical applications. Its sleek Mode design, 2 terminal sizes and 13A Rating construction make it both reliable and easy to install.
- All screw terminals accessible from the top
- Double pole switching
- Bottom flex outlet option available
- Moulded smooth profile polar white plate
- Antiviral & Antibacterial Certified
Click CMA051 Mode Connection Unit DP Switched Fused c/w FO 13A White is the perfect solution for any electrical application. With a sleek and modern design, this unit is sure to complement any decor. The unit comes with 2 terminal sizes, 2 or 2 x 4mm. The DP Switched Fused c/w FO Connection Unit ensures that this unit is safe and reliable for use in any environment. Easy to install, making it perfect for professional electricians. The Click Scolmore product range is world-renowned for its quality, reliability and durability, so you can be sure that this unit will stand up to the test of time.
| SKU | SCOL-CMA051 |
|---|---|
| Manufacturer Part Code | CMA051 |
| Warranty | 20 Years |
| Product Range | Mode |
| Current Rating | 13A |
| Voltage | 250V |
| Face colour | Polar White |
| Material | Urea |
| Mounting Method | Surface |
| Depth (mm) | 9.50 mm |
| Width (mm) | 86.00 mm |
| Height (mm) | 86.00 mm |
| Length (mm) | 86.00 mm |
| Back Box Depth (mm) | 25 |
| Gangs | 1 |
| Switched | Switched |
| Pole Configuration | 2P |
| Ingress Protection | IP20 |
| Fixing Centres | 60.3 mm |
| Legend | Fused |
| Qualifier | Fused Connection Units |
| CE Approved | No |
| Standards | BS 1363-4 BS 1362 |
| Lockable | No |
| Is on Sale | No |
| Brand | Mode | |
| Wiring Accessories | Description | Gangs | 1 Gang | |
| Wiring Accessories | Description | Product | Connection Unit | |
| Wiring Accessories | Description | Product Type | Fused c/w FO | |
| Wiring Accessories | Description | Product | Connection Unit | |
| Wiring Accessories | Description | Qualifier | FCU Plate | |
| Wiring Accessories | Description | Switched/Unswitched | Unswitched | |
| Wiring Accessories | Dimensions | Depth (EF008810) | 9.5 mm | |
| Wiring Accessories | Dimensions | Fixing Centres | 60.3 mm | |
| Wiring Accessories | Dimensions | Length (EF004265) | 86 mm | |
| Wiring Accessories | Dimensions | Mounting Box Minimum Depth | 25 mm | |
| Wiring Accessories | Dimensions | Width (EF008808) | 86 mm | |
| Wiring Accessories | Features | FM/DAB | N | |
| Wiring Accessories | Features | Flex Outlet | Y | |
| Wiring Accessories | Features | Fuse Fitted | Y | |
| Wiring Accessories | Features | Includes 13A Switch Socket? | N | |
| Wiring Accessories | Features | Includes RCD? | N | |
| Wiring Accessories | Features | Ingress Protection (EF005474) | IP20 | |
| Wiring Accessories | Features | Legend | Fused | |
| Wiring Accessories | Features | Lockable? | N | |
| Wiring Accessories | Features | RJ11 | N | |
| Wiring Accessories | Features | RJ45 Cat 5E | N | |
| Wiring Accessories | Features | RJ45 Cat 6 | N | |
| Wiring Accessories | Features | Satellite | N | |
| Wiring Accessories | Features | Screwless? | N | |
| Wiring Accessories | Features | TV Socket | N | |
| Wiring Accessories | Features | Telephone Master | N | |
| Wiring Accessories | Features | Telephone Secondary | N | |
| Wiring Accessories | Features | USB | N | |
| Wiring Accessories | General | CE Approved | N | |
| Wiring Accessories | General | Warranty | 20 Years | |
| Wiring Accessories | Material & Finish | Face Colour | Polar White | |
| Wiring Accessories | Technical Data | Current Rating (EF000227) | 13 A | |
| Wiring Accessories | Technical Data | Voltage | 250 V |
