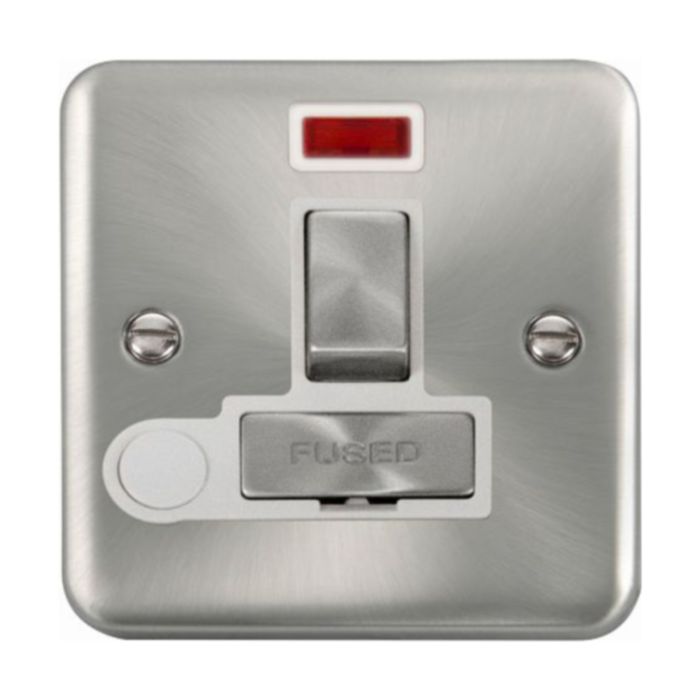

Click Deco Plus DPSC552WH 13A DP Switched FCU With Neon & Optional Flex Outlet Satin Chrome
Scolmore Deco Plus Fused Connection Unit comes with an optional flex outlet and neon. Deco Plus Fused Connection Unit provides large twin earth terminals as standard, which greatly facilitates wiring and installation, manufactured according to the BS 1363 standards.
- All screw terminals accessible from the top
- Double pole switching
- Front flex outlet option available
- Smooth curve decorative plate design
- Satin chrome plate with white insert & gasket
Stock available 2-3 Working days
SKU
SCOL-DPSC552WH
£7.14 £8.57
Product Downloads
Product Categories
13A Ingot DP Switched Fused Connection Unit With Neon - Black
| SKU | SCOL-DPSC552WH |
|---|---|
| Manufacturer Part Code | DPSC552WH |
| Warranty | 10 Years |
| Product Range | Deco Plus |
| Current Rating | 13A |
| Voltage | 250V |
| Face colour | Satin Chrome |
| Rocker colour | Satin Chrome |
| Insert colour | White |
| Material | Stainless Steel |
| Depth (mm) | 8.00 mm |
| Width (mm) | 88.00 mm |
| Height (mm) | 88.00 mm |
| Length (mm) | 88.00 mm |
| Back Box Depth (mm) | 25 |
| Switched | Switched |
| Pole Configuration | 2P |
| Ingress Protection | IP20 |
| Fixing Centres | 60.3 mm |
| Legend | Fused |
| Qualifier | Fused Connection Units |
| CE Approved | No |
| Standards | BS 1363-4 BS 1362 |
| Lockable | No |
| Is on Sale | No |
| Brand | Deco Plus | |
| Wiring Accessories | Description | Product | Connection Unit | |
| Wiring Accessories | Description | Product Type | Ingot Switched c/w Flex Outlet | |
| Wiring Accessories | Description | Product | Connection Unit | |
| Wiring Accessories | Description | Qualifier | FCU Plate | |
| Wiring Accessories | Dimensions | Depth (EF008810) | 8 mm | |
| Wiring Accessories | Dimensions | Fixing Centres | 60.3 mm | |
| Wiring Accessories | Dimensions | Mounting Box Minimum Depth | 25 mm | |
| Wiring Accessories | Dimensions | Width (EF008808) | 88 mm | |
| Wiring Accessories | Features | FM/DAB | N | |
| Wiring Accessories | Features | Flex Outlet | Y | |
| Wiring Accessories | Features | Fuse Fitted | Y | |
| Wiring Accessories | Features | Includes 13A Switch Socket? | N | |
| Wiring Accessories | Features | Includes RCD? | N | |
| Wiring Accessories | Features | Ingress Protection (EF005474) | IP20 | |
| Wiring Accessories | Features | Legend | Fused | |
| Wiring Accessories | Features | Lockable? | N | |
| Wiring Accessories | Features | Pole Configuration | Double Pole (2P) | |
| Wiring Accessories | Features | RJ11 | N | |
| Wiring Accessories | Features | RJ45 Cat 5E | N | |
| Wiring Accessories | Features | RJ45 Cat 6 | N | |
| Wiring Accessories | Features | Satellite | N | |
| Wiring Accessories | Features | Screwless? | N | |
| Wiring Accessories | Features | TV Socket | N | |
| Wiring Accessories | Features | Telephone Master | N | |
| Wiring Accessories | Features | Telephone Secondary | N | |
| Wiring Accessories | Features | USB | N | |
| Wiring Accessories | General | CE Approved | N | |
| Wiring Accessories | General | Warranty | 10 Years | |
| Wiring Accessories | Material & Finish | Face Colour | Satin Chrome | |
| Wiring Accessories | Material & Finish | Indicator Colour | Red | |
| Wiring Accessories | Material & Finish | Rocker Colour | Satin Chrome | |
| Wiring Accessories | Technical Data | Current Rating (EF000227) | 13 A | |
| Wiring Accessories | Technical Data | Voltage | 250 V |
