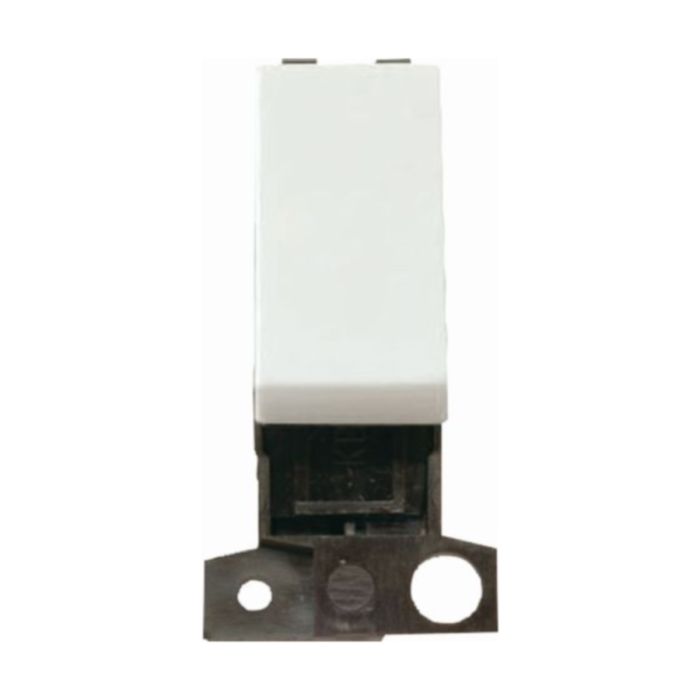

Click MiniGrid MD001WH 10AX 1 Way Switch Module
Scolmore MiniGrid Switch Module with Click white finish. This MiniGrid module is easily and quickly exchanged or mounted onto unfurnished plates by means of a simple single screw fixing.
- 1 way switching
- Single width module
- Moulded Click white finish
- Antiviral & Antibacterial Certified
Stock available 2-3 Working days
SKU
SCOL-MD001WH
£0.92 £1.10
Product Downloads
Product Categories
10AX 1 Way Switch Module - Click White
| SKU | SCOL-MD001WH |
|---|---|
| Manufacturer Part Code | MD001WH |
| Warranty | 10 Years |
| Product Range | Minigrid |
| Current Rating | 10A |
| Voltage | 250V |
| Face colour | White |
| Material | Nylon |
| Mounting Method | Grid |
| Depth (mm) | 20.00 mm |
| Width (mm) | 25.00 mm |
| Height (mm) | 53.00 mm |
| Length (mm) | 32.00 mm |
| Back Box Depth (mm) | 16 |
| Switched | Switched |
| Number of ways | 1 |
| Ingress Protection | IP20 |
| Qualifier | Switch Modules |
| CE Approved | No |
| Standards | BS EN 60669-1 |
| Lockable | No |
| Is on Sale | No |
| Brand | Minigrid | |
| Wiring Accessories | Description | Product | Switch | |
| Wiring Accessories | Description | Product Type | 1 Way Module | |
| Wiring Accessories | Description | Product | Switch Module | |
| Wiring Accessories | Description | Qualifier | Switch Modules MG | |
| Wiring Accessories | Description | Switched/Unswitched | Switched | |
| Wiring Accessories | Dimensions | Depth (EF008810) | 16 mm | |
| Wiring Accessories | Dimensions | Height (EF008809) | 53 mm | |
| Wiring Accessories | Dimensions | Length (EF004265) | 32 mm | |
| Wiring Accessories | Dimensions | Mounting Box Minimum Depth | 16 mm | |
| Wiring Accessories | Dimensions | Width (EF008808) | 25 mm | |
| Wiring Accessories | Features | FM/DAB | N | |
| Wiring Accessories | Features | Flex Outlet | N | |
| Wiring Accessories | Features | Fuse Fitted | N | |
| Wiring Accessories | Features | Includes 13A Switch Socket? | N | |
| Wiring Accessories | Features | Includes RCD? | N | |
| Wiring Accessories | Features | Ingress Protection (EF005474) | IP20 | |
| Wiring Accessories | Features | Lockable? | N | |
| Wiring Accessories | Features | RJ11 | N | |
| Wiring Accessories | Features | RJ45 Cat 5E | N | |
| Wiring Accessories | Features | RJ45 Cat 6 | N | |
| Wiring Accessories | Features | Satellite | N | |
| Wiring Accessories | Features | Screwless? | N | |
| Wiring Accessories | Features | TV Socket | N | |
| Wiring Accessories | Features | Telephone Master | N | |
| Wiring Accessories | Features | Telephone Secondary | N | |
| Wiring Accessories | Features | USB | N | |
| Wiring Accessories | General | CE Approved | N | |
| Wiring Accessories | General | Warranty | 10 Years | |
| Wiring Accessories | Material & Finish | Body Material | Nylon | |
| Wiring Accessories | Material & Finish | Face Colour | White | |
| Wiring Accessories | Technical Data | Current Rating (EF000227) | 10 A | |
| Wiring Accessories | Technical Data | Voltage | 250 V |
