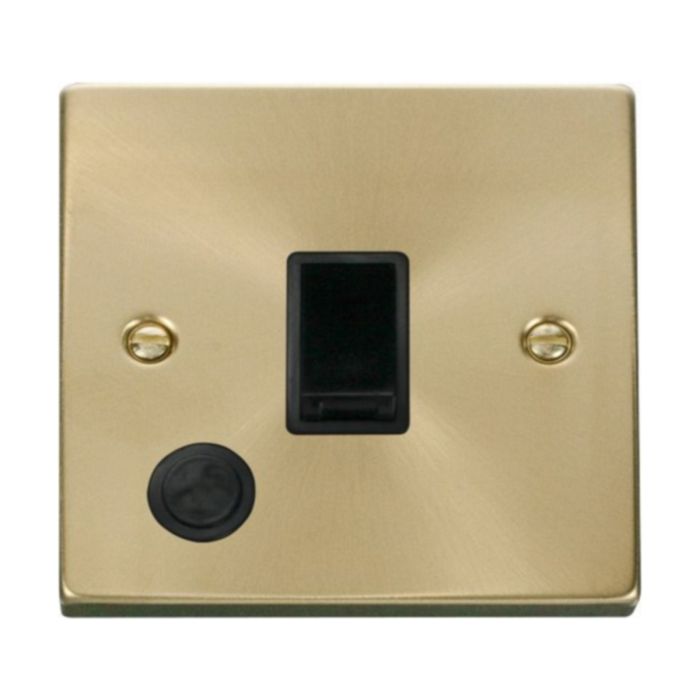

Click Deco VPSB022BK 20A DP Plate Switch With Optional Flex Outlet Satin Brass
- Double pole switching
- Front flex outlet option available
- Victorian square edge plate design
- Satin brass plate with black insert & gasket
Click Deco 20A Connection Unit Switched Flex Outlet Satin Brass VPSB022BK
The Deco Range of decorative metal wiring accessories .
Brand Overview
Click Scolmore Deco® is comprehensive range of decorative metal wiring accessories by Click Scolmore. Deco® brand is synonymous with high specification, high quality, long life and true value for money. Each Deco® product is supplied individually packaged in its own uniquely printed box complete with fitting instructions for easy install of all the deco range. Deco® switches feature the same modular switch design as the white moulded ranges. All of the switch modules featured in our dedicated modules brochure and therefore be used in any combination on Deco® accessories. Deco® plates are manufactured from stainless steel, georgian style (GCBR) plates are manufactured from cast brass. All Deco® 13A sockets and fused connection units are tested and approved to BS1363 offering assured quality and safety
| SKU | SCOL-VPSB022BK |
|---|---|
| Manufacturer Part Code | VPSB022BK |
| Warranty | 10 Years |
| Product Range | Deco |
| Current Rating | 20A |
| Voltage | 250V |
| Face colour | Satin Brass |
| Insert colour | Black |
| Material | Stainless Steel |
| Mounting Method | Flush |
| Depth (mm) | 8.00 mm |
| Width (mm) | 88.00 mm |
| Height (mm) | 88.00 mm |
| Length (mm) | 88.00 mm |
| Back Box Depth (mm) | 25 |
| Gangs | 1 |
| Switched | Switched |
| Pole Configuration | 2P |
| Ingress Protection | IP20 |
| Fixing Centres | 60.3 mm |
| Qualifier | 20A DP Switches |
| CE Approved | No |
| Standards | BS EN 60669-1 |
| Lockable | No |
| Is on Sale | No |
| Brand | Deco | |
| Wiring Accessories | Description | Gangs | 1 Gang | |
| Wiring Accessories | Description | Product | Connection Unit | |
| Wiring Accessories | Description | Product Type | Switched Flex Outlet | |
| Wiring Accessories | Description | Product | Switch | |
| Wiring Accessories | Description | Qualifier | 20A Switches | |
| Wiring Accessories | Description | Switched/Unswitched | Switched | |
| Wiring Accessories | Dimensions | Depth (EF008810) | 8 mm | |
| Wiring Accessories | Dimensions | Fixing Centres | 60.3 mm | |
| Wiring Accessories | Dimensions | Length (EF004265) | 88 mm | |
| Wiring Accessories | Dimensions | Mounting Box Minimum Depth | 25 mm | |
| Wiring Accessories | Dimensions | Width (EF008808) | 88 mm | |
| Wiring Accessories | Features | FM/DAB | N | |
| Wiring Accessories | Features | Flex Outlet | Y | |
| Wiring Accessories | Features | Fuse Fitted | N | |
| Wiring Accessories | Features | Includes 13A Switch Socket? | N | |
| Wiring Accessories | Features | Includes RCD? | N | |
| Wiring Accessories | Features | Ingress Protection (EF005474) | IP20 | |
| Wiring Accessories | Features | Lockable? | N | |
| Wiring Accessories | Features | Mounting (EF000003) | Flush | |
| Wiring Accessories | Features | Pole Configuration | Double Pole (2P) | |
| Wiring Accessories | Features | RJ11 | N | |
| Wiring Accessories | Features | RJ45 Cat 5E | N | |
| Wiring Accessories | Features | RJ45 Cat 6 | N | |
| Wiring Accessories | Features | Satellite | N | |
| Wiring Accessories | Features | Screwless? | N | |
| Wiring Accessories | Features | TV Socket | N | |
| Wiring Accessories | Features | Telephone Master | N | |
| Wiring Accessories | Features | Telephone Secondary | N | |
| Wiring Accessories | Features | USB | N | |
| Wiring Accessories | General | CE Approved | N | |
| Wiring Accessories | General | Warranty | 10 Years | |
| Wiring Accessories | Material & Finish | Face Colour | Satin Brass | |
| Wiring Accessories | Technical Data | Current Rating (EF000227) | 20 A | |
| Wiring Accessories | Technical Data | Voltage | 250 V |
