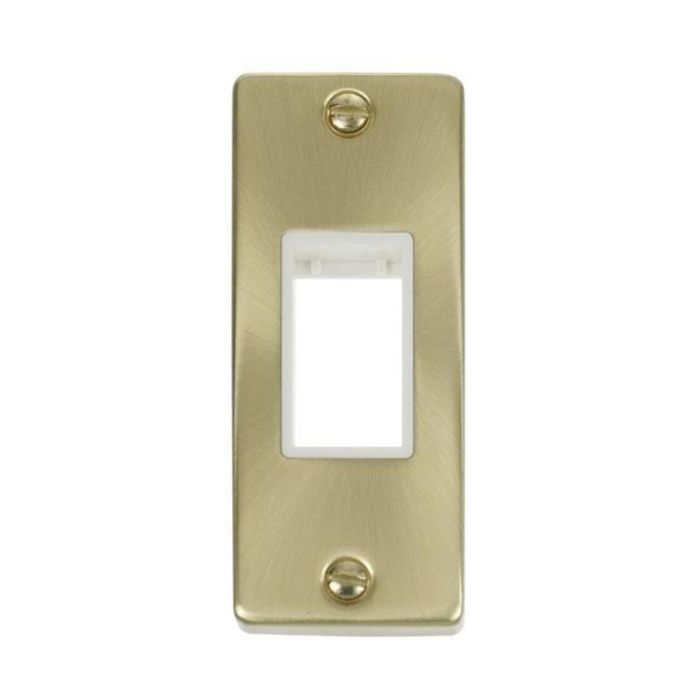

Click Deco VPSB471WH 1 Gang MiniGrid Unfurnished Architrave Plate - 1 Aperture Satin Brass
- Integrated yoke (no yoke required)
- Utilises MiniGrid� modules (Except 3 position switch modules)
- Victorian square edge plate design
- Satin brass plate with white insert & gasket
Click Deco Frontplate 1 Gang Single Aperture Architrave Satin Brass VPSB471WH
The Deco Range of decorative metal wiring accessories .
Brand Overview
Click Scolmore Deco® is comprehensive range of decorative metal wiring accessories by Click Scolmore. Deco® brand is synonymous with high specification, high quality, long life and true value for money. Each Deco® product is supplied individually packaged in its own uniquely printed box complete with fitting instructions for easy install of all the deco range. Deco® switches feature the same modular switch design as the white moulded ranges. All of the switch modules featured in our dedicated modules brochure and therefore be used in any combination on Deco® accessories. Deco® plates are manufactured from stainless steel, georgian style (GCBR) plates are manufactured from cast brass. All Deco® 13A sockets and fused connection units are tested and approved to BS1363 offering assured quality and safety
| SKU | SCOL-VPSB471WH |
|---|---|
| Manufacturer Part Code | VPSB471WH |
| Warranty | 10 Years |
| Product Range | Deco |
| Face colour | Satin Brass |
| Insert colour | White |
| Material | Stainless Steel |
| Mounting Method | Flush |
| Depth (mm) | 8.00 mm |
| Width (mm) | 35.00 mm |
| Height (mm) | 89.00 mm |
| Back Box Depth (mm) | 16 |
| Gangs | 1 |
| Switched | Unswitched |
| Ingress Protection | IP20 |
| Fixing Centres | 74 mm |
| Qualifier | MiniGrid Plates |
| CE Approved | No |
| Standards | BS 5733 |
| Lockable | No |
| Is on Sale | No |
| Brand | Deco | |
| Wiring Accessories | Description | Gangs | 1 Gang | |
| Wiring Accessories | Description | Product | Frontplate | |
| Wiring Accessories | Description | Product Type | 1 Gang Single Aperture Architrave | |
| Wiring Accessories | Description | Product | Faceplate | |
| Wiring Accessories | Description | Qualifier | MiniGrid Plates | |
| Wiring Accessories | Description | Switched/Unswitched | Unswitched | |
| Wiring Accessories | Dimensions | Depth (EF008810) | 8 mm | |
| Wiring Accessories | Dimensions | Fixing Centres | 74 mm | |
| Wiring Accessories | Dimensions | Mounting Box Minimum Depth | 16 mm | |
| Wiring Accessories | Dimensions | Width (EF008808) | 35 mm | |
| Wiring Accessories | Features | FM/DAB | N | |
| Wiring Accessories | Features | Flex Outlet | N | |
| Wiring Accessories | Features | Fuse Fitted | N | |
| Wiring Accessories | Features | Includes 13A Switch Socket? | N | |
| Wiring Accessories | Features | Includes RCD? | N | |
| Wiring Accessories | Features | Ingress Protection (EF005474) | IP20 | |
| Wiring Accessories | Features | Lockable? | N | |
| Wiring Accessories | Features | Mounting (EF000003) | Flush | |
| Wiring Accessories | Features | RJ11 | N | |
| Wiring Accessories | Features | RJ45 Cat 5E | N | |
| Wiring Accessories | Features | RJ45 Cat 6 | N | |
| Wiring Accessories | Features | Satellite | N | |
| Wiring Accessories | Features | Screwless? | N | |
| Wiring Accessories | Features | TV Socket | N | |
| Wiring Accessories | Features | Telephone Master | N | |
| Wiring Accessories | Features | Telephone Secondary | N | |
| Wiring Accessories | Features | USB | N | |
| Wiring Accessories | General | CE Approved | N | |
| Wiring Accessories | General | Warranty | 10 Years | |
| Wiring Accessories | Material & Finish | Face Colour | Satin Brass |
