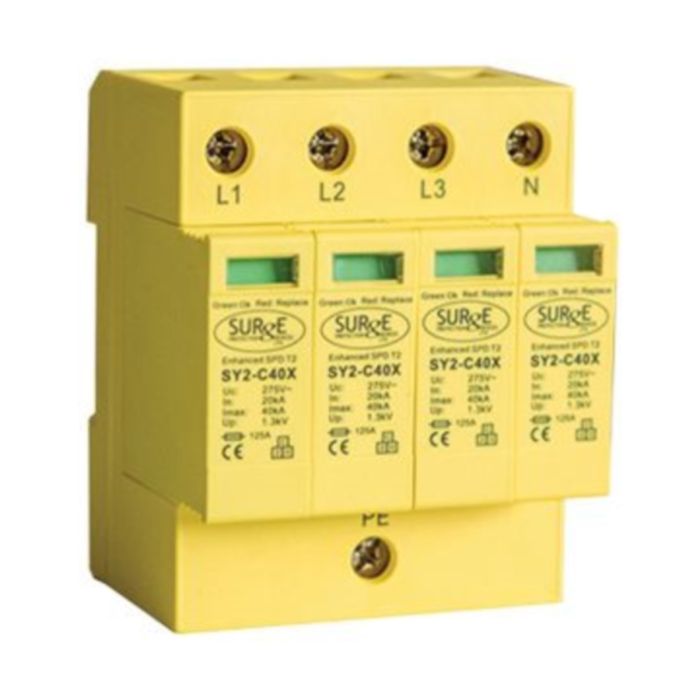

SPD SY2C40X 3 Phase Type 2+3 Pluggable Surge Arrester 10kA 275V
Type 2+3 enhanced pluggable surge arrester.
- Type 2+3 enhanced pluggable surge arrester.
- Conforms to BSEN62305, EN61643-11 and BS7671 1st amendment wiring regs.
- Din rail mountable.
- Connect in parallel meaning no current limitations.
- Visual indication as standard.
- Changeover contacts for remote indication to signal alarm, BMS, buzzer as standard.
- Each pole individually replaceable.
- Use 32A to 63A backup MCB.
- Cable size 6mm2 – 16mm2.
- Manufactured in Europe by market leading company.
- Competitively priced against other brands.
- Operates in <25ns.
Estimated delivery 2-3 Working days
SKU
SPD-SY2C40X
£132.35 £158.82
Product Downloads
Product Categories
Related Products
Type 2+3 enhanced pluggable surge arrester.
| SKU | SPD-SY2C40X |
|---|---|
| Manufacturer Part Code | SY2C40X |
| Material | Thermoplastic |
| Colour | Yellow |
| Pole Configuration | 4P |
| Number of modules | 4 |
| Max discharge current | 40 kA |
| Ingress Protection | IP12 |
| Depth (mm) | 66.00 mm |
| Height (mm) | 90.00 mm |
| Width (mm) | 72.00 mm |
| Standards | BS EN 61643-11 BS EN 62305 BS 7671 |
| Is on Sale | No |
| Surge Protection | Description | Product | Surge Arrester | |
| Surge Protection | Description | Product Type | 3 Phase Type 2+3 Pluggable | |
| Surge Protection | Description | Product | Surge Arrester | |
| Surge Protection | Dimensions | Depth (EF008810) | 66 mm | |
| Surge Protection | Dimensions | Maximum Cable Size | 4 mm2 | |
| Surge Protection | Dimensions | Minimum Cable Size | 1.5 mm2 | |
| Surge Protection | Dimensions | Width (EF008808) | 72 mm | |
| Surge Protection | Features | Ingress Protection (EF005474) | IP12 | |
| Surge Protection | Features | Mounting Type | DIN Rail | |
| Surge Protection | Features | Number of Modules | 4 | |
| Surge Protection | Features | Number of Poles | 4P | |
| Surge Protection | Features | Plug-In Module | Y | |
| Surge Protection | Features | Status Indicator | Y | |
| Surge Protection | Features | Surge Protector Type | Type 2 + Type 3 | |
| Surge Protection | Features | Voltage Type | AC/DC | |
| Surge Protection | General | CE Approved | Y | |
| Surge Protection | General | Standards | BS EN 61643-11 BS EN 62305 BS 7671 | |
| Surge Protection | Technical Data | Maximum Discharge Current | 40 kA | |
| Surge Protection | Technical Data | Nominal Discharge Current | 20 kA | |
| Surge Protection | Technical Data | Nominal Voltage | 275 V |
