Three Phase, MID 100A, Direct Connected, Digital kWh Meter with Pulsed Output

Three Phase, MID 100A, Direct Connected, Digital kWh Meter with Pulsed Output

  • 100A Direct Connected
  • Three Phase
  • 400V +/- 20% Measured Voltage
  • 1000imp/kWh Pulsed output
  • LCD Display 6+1= 999999.9
  • MID B+D certified
Three Phase, MID 100A, Direct Connected, Digital kWh Meter with Pulsed Output

Estimated Delivery

Next working day
Excl. VAT: £99.00 Incl. VAT: £118.80

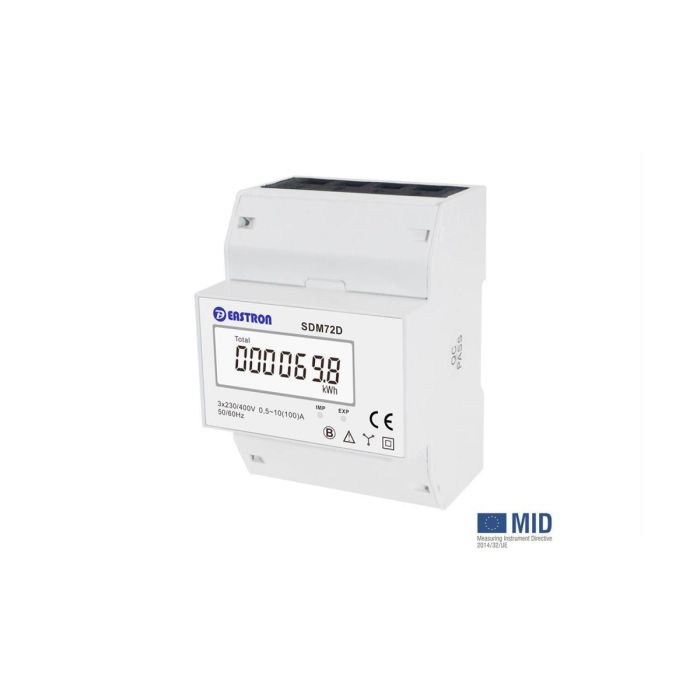

Smart Process SDM72D-MID 100Amp 4 Module Three Phase kWh Power Meter with Pulsed Output, and Import/Export Data (MID Approved).

The SDM72D Digital Power Meter works directly connected to a maximum load 100A AC circuit negating the need for current transformers. It monitors and displays Total Active Energy (kWh) of a three phase four wire (3p4w) system.

This meter has been MID B&D Certified by SGS UK, proving both it’s accuracy and quality. This certification allows this model to be used for any sub-billing applications.

The SDM72D measures and displays Total Active Energy of a three phase circuit. The unit also has a built in pulsed output for remote monitoring.

Manufacturer Mastertrade
