Timeguard LEDPROSLB Night Eye PIR Dedicated for LEDPRO Floods Black

Timeguard LEDPROSLB Night Eye PIR Dedicated for LEDPRO Floods Black

TIMEG-LEDPROSLB
  • Dedicated 140W LED PIR for use with Timeguard LEDPRO floodlights.
  • Maximum Switchable Load: LED lamp –140W; Halogen lamp – 1000W; CFL – 200W; Fluorescent tube w/o PF correction – 500W.
  • Operating Temperature -20°C to +40°C.
  • Fits ALL Timeguard LEDPRO floodlights.
  • Simply replaces the terminal cover and plugs in to the LEDPRO floodlight – no extra cabling necessary.
  • Installer friendly captive terminal cover screws 2x cable entries suitable for PG11 gland(glands not supplied).
  • 12 metre 180° detection.
  •  Tilt and rotate adjustable head for accurate reliable detection.
  • 3 seconds – 18 minutes timed duration (adjustable).
  • Photocell sensor (Adjustable) and manual override function.
  • Complete with masking kit.
  • IP55 weatherproof rating.
  • UK and European registered design.
  • Registered Community Design Number: 003316249-0002.
  • UK Registered Design Number: 5004077.

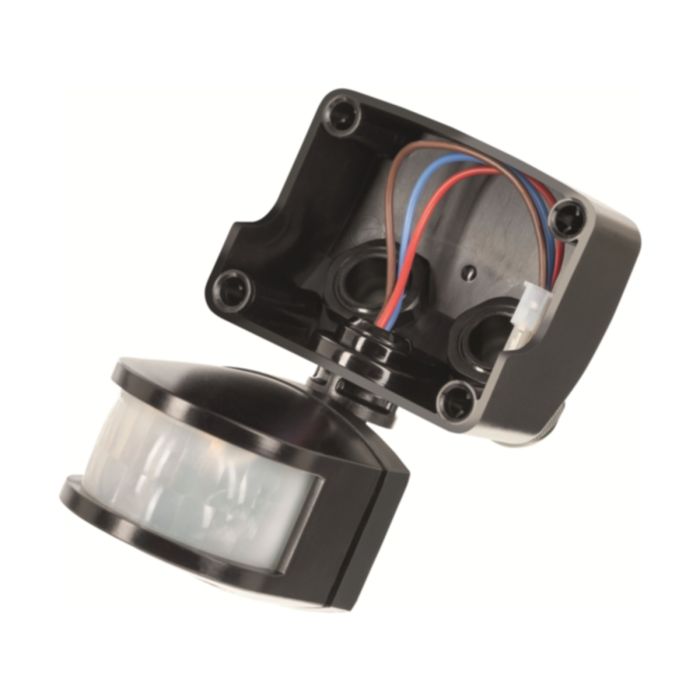

The Timeguard NightEye Pro PIR Attachment Black is a high-quality add-on designed to fit onto Timeguards LEDPRO Floodlights. This product is perfect for enhancing outdoor security by detecting movement and automatically turning the floodlights on.

SELL PACK QTY: 1

Stock available

Next working day
Excl. VAT: £11.96 Incl. VAT: £14.35
The Plug & Play IP55 PIR attachment (models LEDPROSLB/LEDPROSLWH) simply replaces the terminal cover and plugs into the LEDPRO Floodlight offering a 140W LED PIR with a 180° 12m detection range fitting all variants/wattages in the range. Features include tilt and rotate adjustable head, timed on adjustable control and manual override. A truly professional range offering mix and match options to cover all type of installations.
  • Dedicated LED PIR for use with Timeguard LEDPRO floodlights
  • Maximum switchable load: 140W LED, 1000W Halogen, 200W CFL
  • IP55 rated
  • Adjustable time from 3 seconds to 18 minutes
  • Detection range: 12m maximum
  • Angle of detection: 180°
  • Electronic permenant on facility
  • Adjustable light level control
  • Operating voltage: 230V AC
  • Dimensions (H x W x D): 91 x 78 x 73mm
PDF Icon Catalogue Page PDF Icon Installation Instructions
View on Trimble Luckins
BrandNight Eye
Luminaires | Description | Product PIR
Luminaires | Description | Product TypeDedicated Pro
Luminaires | Description | ProductPIR
Luminaires | Description | Qualifierfor LEDPRO Floodlights 12 metre 180 degree detection 3s-18m adjustable time
Luminaires | Description | TypeFloodlight
Luminaires | Dimensions | Depth108 mm
Luminaires | Dimensions | Width78 mm
Luminaires | Features | AdjustabilityAdjustable
Luminaires | Features | Ballast/Starter IncludedN
Luminaires | Features | Corrosion ResistantN
Luminaires | Features | Cover IncludedN
Luminaires | Features | Ingress ProtectionIP55
Luminaires | Features | LED Driver Included?N
Luminaires | Features | Lamp(s) Included?N
Luminaires | Features | Microwave Sensor IncludedN
Luminaires | Features | PIR IncludedY
Luminaires | Features | Self-ContainedN
Luminaires | Features | Vandal ResistantN
Luminaires | Features | Wattage140 W
Luminaires | General | Warranty3 Years
Luminaires | Material & Finish | Housing ColourBlack
Luminaires | Material & Finish | Housing MaterialPlastic
Luminaires | Technical Data | Voltage230 V
SKU TIMEG-LEDPROSLB
SKU LEDPROSLB
Product Range Security Lighting
Manufacturer Timeguard
Sensor Type PIR
with PIR Yes
Colour Black
IP Rating 55
