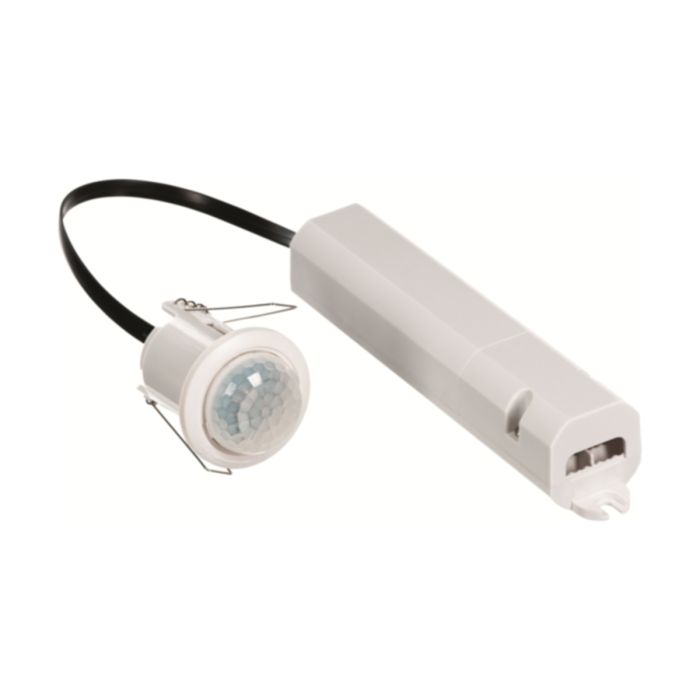

Timeguard PDFMMINIL 360° Flush Mount Linkable Mini PIR Sensor
Mini design (47mm diameter) for corridor and multi-zone use with Twist & Lock design for easy access. Linkable pre-wired RJ11 plug-in slave units allow quick installation with up to 5 slaves to one master unit.
- Designed for corridor and multi-zone use.
- Mini unobtrusive design (47mm diameter).
- Detection: 360°.
- 3 metre presence detection.
- 8 metre motion detection.
- Twist & Lock design for easy access.
- Pre-wired RJ11 plug-in slave units for quick installation.
- Linkable. Up to 5 slaves can be added to 1 master.
- Load: halogen max. 1000W. LED max. 250W.
- LUX adjustment: 5 – 1000 LUX.
- Time adjustment: 30 seconds to 30 minutes (master only).
- Termination box for ease of wiring.
- Masking kit included.
- LED indication.
- IP40 weatherproof rating.
Estimated delivery 2-3 Working days
SKU
TIMEG-PDFMMINIL
£33.43 £40.12
Product Downloads
Product Categories
| SKU | TIMEG-PDFMMINIL |
|---|---|
| Manufacturer Part Code | PDFMMINIL |
| Is on Sale | No |
| Brand | Night Eye | |
| Standalone/Built In Lighting Controls | Description | Product | Presence Detector | |
| Standalone/Built In Lighting Controls | Description | Product Type | Mini PIR Linkable Flush | |
| Standalone/Built In Lighting Controls | Dimensions | Width (EF008808) | 47|175 mm | |
| Standalone/Built In Lighting Controls | Features | Detection Angle (EF004101) | 360 Degrees | |
| Standalone/Built In Lighting Controls | Features | Detection Distance | 8 Metres | |
| Standalone/Built In Lighting Controls | Features | Dimmable | N | |
| Standalone/Built In Lighting Controls | Features | Ingress Protection (EF005474) | IP40 | |
| Standalone/Built In Lighting Controls | Features | Maximum Load (W) | 250W LED/CFL/Fluorescent 2300W Halogen W | |
| Standalone/Built In Lighting Controls | Features | Mounting (EF000003) | Flush | |
| Standalone/Built In Lighting Controls | Features | Number of Channels | 1 | |
| Standalone/Built In Lighting Controls | Features | Supply Voltage | 230 V | |
| Standalone/Built In Lighting Controls | Features | Time Lag Range | 30 Sec 2m 5m 10m 15m 30m. User Adjustable | |
| Standalone/Built In Lighting Controls | Features | c/w Cable | N | |
| Standalone/Built In Lighting Controls | Features | c/w Mounting Bracket | N | |
| Standalone/Built In Lighting Controls | Features | c/w PIR | Y | |
| Standalone/Built In Lighting Controls | Features | c/w Photocell | N | |
| Standalone/Built In Lighting Controls | General | CE Approved | Y | |
| Standalone/Built In Lighting Controls | General | Unit Weight | 0.14 kg | |
| Standalone/Built In Lighting Controls | General | Warranty | 3 Years |
