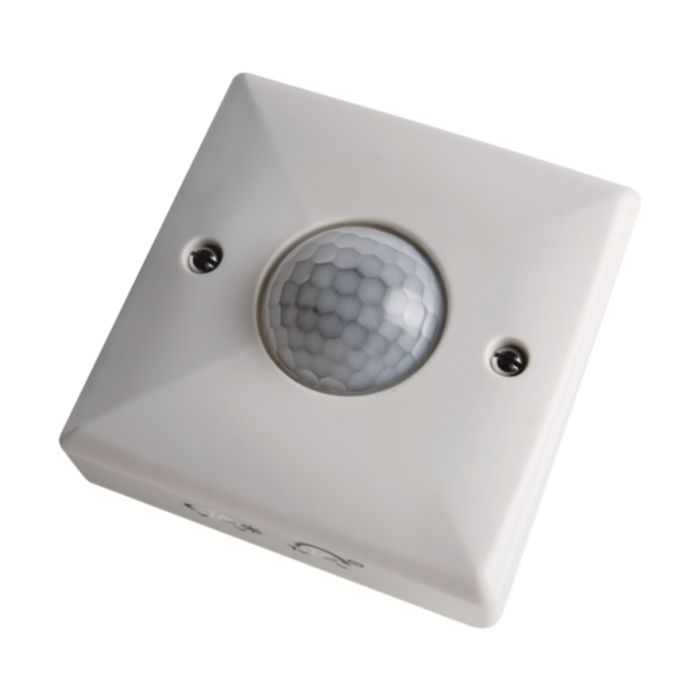

Timeguard PDWM1500 120° Wall Mount PIR Presence Detector
Timeguard take PIR Presence Detection to the next level for optimum coverage and with up to 1500W loading and 10m detection range this powerful unit is the ideal choice for all energy saving installations.
- Switches lights ON when presence is detected and to light level (LUX) settings.
- Ideal for energy saving installations in the workplace, corridors, offices, toilets etc.
- Up to 1500W loading (6A) for incandescent, halogen, fluorescent and inductive lighting or 250W (1A) fan.
- Units can be wired in parallel (not exceeding total load).
- Enhanced 120° detection zone for optimum coverage.
- Up to 10m detection range for motion and 5m for presence detection at 1.8m mounting height.
- User-friendly adjustment for: * Light level – 5 to 1000 LUX * Time ON – 1 to 30 minutes.
- IP55 environmental rating (internal use only).
- For surface mounting on a standard BS surface mount or flush mount box (min 16mm depth).
- 3 wire connection.
- Up to 420W LED (Max) lighting.
Estimated delivery 2-3 Working days
SKU
TIMEG-PDWM1500
£33.43 £40.12
Product Categories
Timeguard take PIR Presence Detection to the next level for optimum coverage and with up to 1500W loading and 10m detection range this powerful unit is the ideal choice for all energy saving installations.
- Enhanced 120 deg detection zone for optimum coverage
- Switches lights ON when pressure is detected & to light level (LUX) settings
- Up to 10m detection range for motion & 5m for presence detection at 1.8m mounting height
- Up to 1500W loading for incandescent, halogen, fluorescent & inductive lighting or 250W fan
- Units can be wired in parallel
- Can also be mounted on a standard BS surface or a flush mount box
- IP55 rated
| SKU | TIMEG-PDWM1500 |
|---|---|
| Manufacturer Part Code | PDWM1500 |
| Is on Sale | No |
| Brand | Night Eye | |
| Standalone/Built In Lighting Controls | Description | Product | Presence Detector | |
| Standalone/Built In Lighting Controls | Description | Product Type | Wall Mount PIR | |
| Standalone/Built In Lighting Controls | Dimensions | Width (EF008808) | 86 mm | |
| Standalone/Built In Lighting Controls | Features | Detection Angle (EF004101) | 120 Degrees | |
| Standalone/Built In Lighting Controls | Features | Detection Distance | 10 Metres | |
| Standalone/Built In Lighting Controls | Features | Dimmable | N | |
| Standalone/Built In Lighting Controls | Features | Ingress Protection (EF005474) | IP55 | |
| Standalone/Built In Lighting Controls | Features | Maximum Load (W) | 420W LED 1500W Halogen or Fluorescent 250W Fan W | |
| Standalone/Built In Lighting Controls | Features | Mounting (EF000003) | Wall | |
| Standalone/Built In Lighting Controls | Features | Number of Channels | 1 | |
| Standalone/Built In Lighting Controls | Features | Supply Voltage | 230 V | |
| Standalone/Built In Lighting Controls | Features | Time Lag Range | 1 Minute to 30 Minutes. User Adjustable | |
| Standalone/Built In Lighting Controls | Features | c/w Cable | N | |
| Standalone/Built In Lighting Controls | Features | c/w Mounting Bracket | N | |
| Standalone/Built In Lighting Controls | Features | c/w PIR | Y | |
| Standalone/Built In Lighting Controls | Features | c/w Photocell | N | |
| Standalone/Built In Lighting Controls | General | Unit Weight | 0.102 kg | |
| Standalone/Built In Lighting Controls | General | Warranty | 3 Years |
