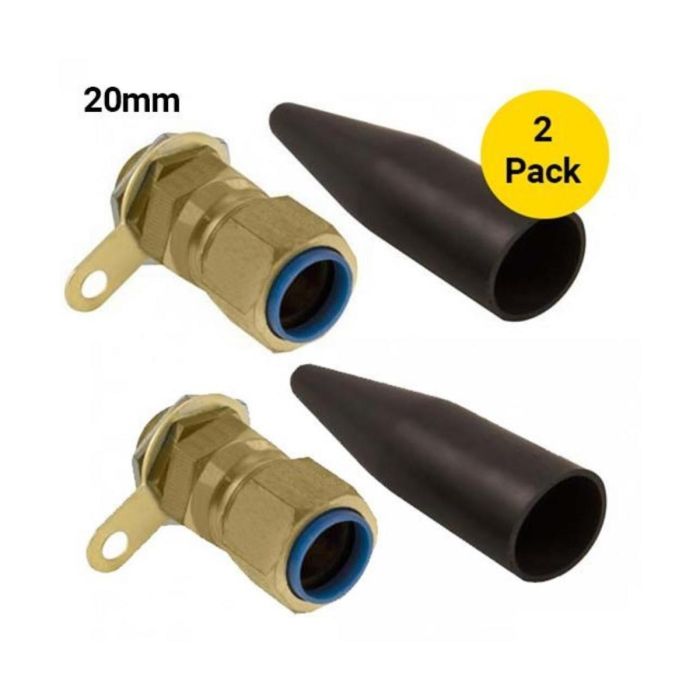

Unicrimp QCW20 20mm Brass CW Cable Gland Pack=2
Explore our wide range of Brass and Nylon Cable Glands. We offer A variety of BW, CW & AE1W Brass Cable Glands manufactured to the latest approvals and BS 6121. Our Nylon Cable Glands, made from polyamide 6, are manufactured to the latest UL approvals.
- IP66 Rated
- 20mm Gland Size
- Cast brass to BS2874
- Approved to BS6121 pt1
Explore our wide range of Brass and Nylon Cable Glands. We offer A variety of BW, CW & AE1W Brass Cable Glands manufactured to the latest approvals and BS 6121. Our Nylon Cable Glands, made from polyamide 6, are manufactured to the latest UL approvals.
| SKU | UNIC-QCW20 |
|---|---|
| Manufacturer Part Code | QCW20 |
| Product Range | Q-Crimp |
| Product Finish | Brass |
| Ingress Protection | IP65 |
| Cable type | Armoured |
| Gland material | Brass |
| Gland size | 20 mm |
| Length (mm) | 10.00 mm |
| Overall Diameter (mm) | 13.90 mm |
| Shroud material | PVC |
| Qualifier | CW |
| c/w Earth Tag? | Yes |
| c/w Locknut? | Yes |
| c/w Shroud? | Yes |
| Temperature Range | -20|80 Degrees C |
| Standards | BS2874 BS6121 pt1 |
| Product Type1 | CW c/w Locknut Shroud & Earthtag |
| Dimensions1 | 20mm |
| Is on Sale | No |
| Brand | Q-Crimp | |
| Cable Glands | Description | Pack Quantity | 2 | |
| Cable Glands | Description | Product | Cable Gland | |
| Cable Glands | Description | Product Type | CW c/w Locknut Shroud & Earthtag | |
| Cable Glands | Description | Qualifier | CW | |
| Cable Glands | Dimensions | Diameter | 13.9 mm | |
| Cable Glands | Dimensions | Gland Size | 20 mm | |
| Cable Glands | Dimensions | Length (EF004265) | 10 mm | |
| Cable Glands | Features | Cable Type | Armoured | |
| Cable Glands | Features | Includes Earth Tag? | Y | |
| Cable Glands | Features | Ingress Protection (EF005474) | IP66 | |
| Cable Glands | General | Standards | BS2874 BS6121 pt1 | |
| Cable Glands | Technical Data | Temperature Range | -20|80 Degrees C |
