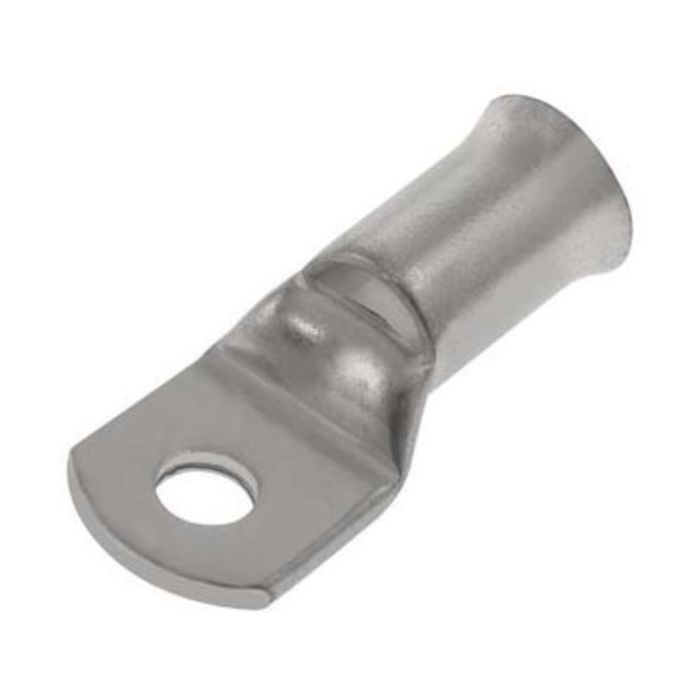

Unicrimp QCT10-10 10mm Copper Tube Lug (for 10mm2 Cable) Pack=10
Q-Crimp uninsulated copper tube terminals and copper tube butt splices are available in a full range of sizes to fit cables from 1.8mm≤ to 240mm≤. Each terminal is manufactured with bell-mouthed entry to assist in simple cable insertion and an inspection hole to ensure the correct cable placement and therefore maximise the crimp performance and tensile strength of every terminal.
- 10mm≤ Conductor Size
- Flared Entry
- Crimp or Solder
- Inspection Window
Stock available Next working day
SKU
UNIC-QCT10-10
£2.61 £3.13
Product Categories
Related Products
Unicrimp QCT10-6 6mm Copper Tube Lug (for 10mm2 Cable) Pack=10SKU: UNIC-QCT10-6£1.96 £2.35
Stock available Next working day
Unicrimp QCT10-8 8mm Copper Tube Lug (for 10mm2 Cable) Pack=10SKU: UNIC-QCT10-8£2.36 £2.83
Stock available Next working day
Unicrimp QCT10-12 12mm Copper Tube Lug (for 10mm2 Cable) Pack=10SKU: UNIC-QCT10-12£2.99 £3.59
Estimated delivery 2-3 Working days
| SKU | UNIC-QCT10-10 |
|---|---|
| Manufacturer Part Code | QCT10-10 |
| Product Range | Q-Crimp |
| Product Finish | Tinned |
| Terminal material | Copper |
| Insulated | No |
| Width (mm) | 19.00 mm |
| Length (mm) | 35.00 mm |
| Overall Diameter (mm) | 4.50 mm |
| Cable Size Range | 10 mm2 |
| Hole/Stud Size | 10 mm |
| Qualifier | All copper tube lug terminals are double annealed electro tinned copper and have bell mouth entry for ease of cable insertion. Standard working temperature of 180°C. Copper Tube Terminals are for use on multi-stranded cables from 1.5mm² to 240mm². |
| Standards | ANSI/UL 486A-486B CAN/CSA-C22.2 No. 65 ANSI/UL 486C CSA-C22.2 No. 188 Tensile performance requirements to IEC 61238-1-1: 2018 |
| Working temperature | 180 Degrees C |
| Product Type1 | Copper Tube |
| Dimensions1 | 10mm |
| Is on Sale | No |
| Brand | Q-Crimp | |
| Cable Terminations | Description | Product | Lug | |
| Cable Terminations | Description | Product Type | Copper Tube | |
| Cable Terminations | Description | Qualifier | All copper tube lug terminals are double annealed electro tinned copper and have bell mouth entry for ease of cable insertion. Standard working temperature of 180°C. Copper Tube Terminals are for use on multi-stranded cables from 1.5mm² to 240mm². | |
| Cable Terminations | Dimensions | Diameter (EF000551) | 4.5 mm | |
| Cable Terminations | Dimensions | Length (EF004265) | 35 mm | |
| Cable Terminations | Features | Cable Size Range | 10 mm2 | |
| Cable Terminations | Features | Hole/Stud Size | 10 mm | |
| Cable Terminations | Features | Insulated | No | |
| Cable Terminations | General | Standards | ANSI/UL 486A-486B CAN/CSA-C22.2 No. 65 ANSI/UL 486C CSA-C22.2 No.188 IEC 612381-1:2008 |
