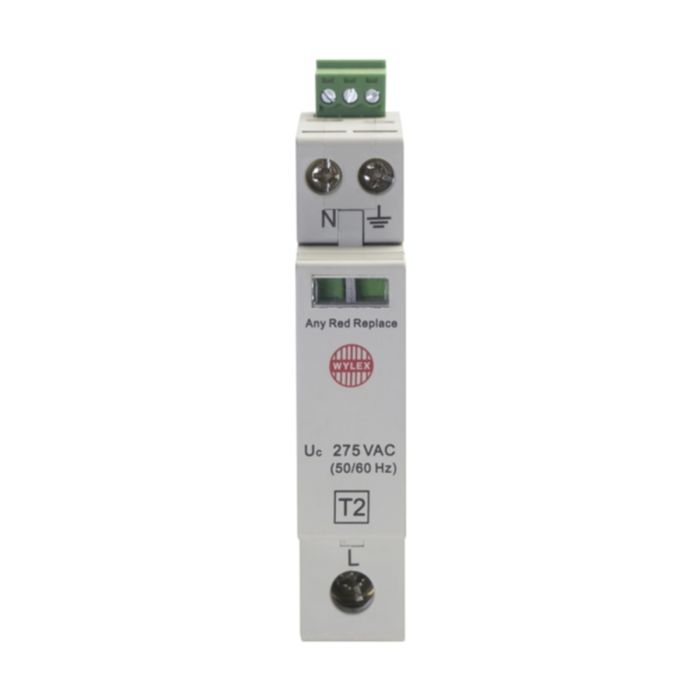

Wylex Surge Protector Device 1 Module Type 2 Single Phase 3 Wire Systems
Wylex NMT2SPD3W/1 SPD 1 Mod Type 2 1Ph
Stock available Next working day
SKU
WYLEX-NMT2SPD3W/1
£35.00 £42.00
Product Downloads
Product Categories
| SKU | WYLEX-NMT2SPD3W/1 |
|---|---|
| Manufacturer Part Code | NMT2SPD3W/1 |
| Is on Sale | No |
| Surge Protection | Description | Product | Surge Protector | |
| Surge Protection | Description | Product Type | Device 1 Module Type 2 | |
| Surge Protection | Description | Product | Surge Protection Device | |
| Surge Protection | Dimensions | Depth (EF008810) | 70 mm | |
| Surge Protection | Dimensions | Maximum Cable Size | 25 mm2 | |
| Surge Protection | Dimensions | Width (EF008808) | 18 mm | |
| Surge Protection | Features | Alarm Output | N | |
| Surge Protection | Features | Ingress Protection (EF005474) | IP20 | |
| Surge Protection | Features | Mounting Type | DIN Rail | |
| Surge Protection | Features | Number of Modules | 1 | |
| Surge Protection | Features | Number of Poles | 2P | |
| Surge Protection | Features | Plug-In Module | N | |
| Surge Protection | Features | Status Indicator | Y | |
| Surge Protection | Features | Surge Protector Type | Type 2 | |
| Surge Protection | Features | Voltage Type | AC | |
| Surge Protection | General | CE Approved | Y | |
| Surge Protection | General | Standards | IEC EN 61643-11 | |
| Surge Protection | Technical Data | Maximum Discharge Current | 40 kA | |
| Surge Protection | Technical Data | Nominal Discharge Current | 20 kA | |
| Surge Protection | Technical Data | Nominal Voltage | 275 V | |
| Surge Protection | Technical Data | Rated Short Circuit Withstand Current | 25 kA |
