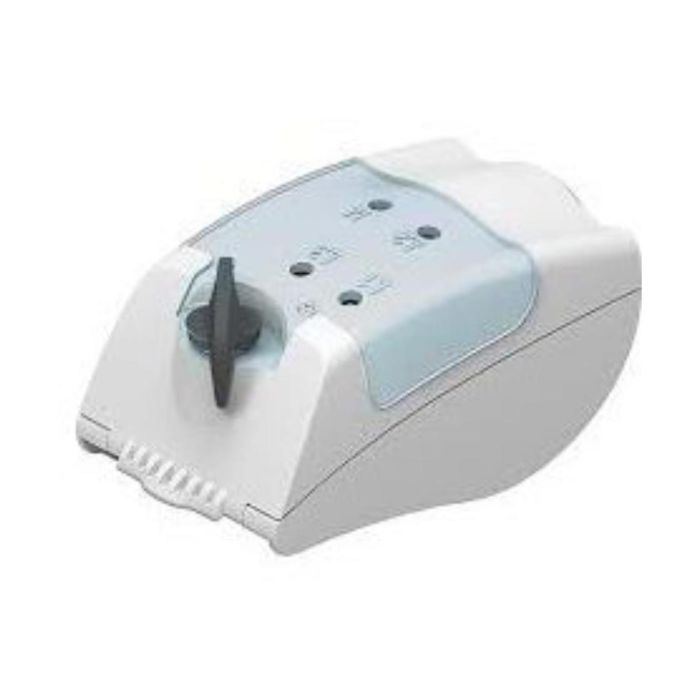

The Zucchini 75005100 LB Plus Busbar 16A Phase Selection 5x20 Fused Tap-Off Plug is engineered for efficient power distribution in industrial and commercial settings. This durable busbar trunking solution offers reliable phase selection and features fused tap-off plugs, ensuring safe and organized electrical management.
16 A phase selection tap-offs
For use with Type A and Type B busbar, all ratings
The Zucchini 75005100 LB Plus Busbar 16A Phase Selection 5x20 Fused Tap-Off Plug is engineered for efficient power distribution in industrial and commercial settings. This durable busbar trunking solution offers reliable phase selection and features fused tap-off plugs, ensuring safe and organized electrical management.
Number of conductors (without earthing)
2
Number of poles
3
Rated current AC 50 Hz
16 A
Rated voltage AC 50 Hz
0-400 V
Phase selection
Yes
With locking
Yes
Branch off type
Cable
Number of CEE socket outlets (IEC 60309)
0
Number of other socket outlets
0
Type of socket outlets
Other
Protection
None
Colour
Grey
Degree of protection (IP)
IP55
Length
11.5 mm
Width
6.2 mm
Height
6 mm
More Information
SKU
ZUCC-75005100
Manufacturer Part Code
75005100
Material
Plastic
Depth (mm)
60.00 mm
Length (mm)
115.00 mm
Width (mm)
62.00 mm
Angle
Straight
Is on Sale
No
Busbar | Description | Product
Plug
Busbar | Description | Product Type
Tap-Off+1x(5x20) Phase Selection
Busbar | Description | Qualifier
c/w 5x20 Fuse
Busbar | Dimensions | Angle
Straight
Busbar | Dimensions | Depth (EF008810)
60 mm
Busbar | Dimensions | Length (EF004265)
115 mm
Busbar | Features | Conductor Material
Copper
Busbar | Features | Fused
Y
Busbar | Features | Hand
Universal
Busbar | Features | Use
Type A and Type B Busbar
Busbar | General | Unit Weight
0.13 kg
Busbar | Technical Data | Current Rating (EF000227)
16 A
Busbar | Technical Data | Rated Operational Frequency
50|60 Hz
