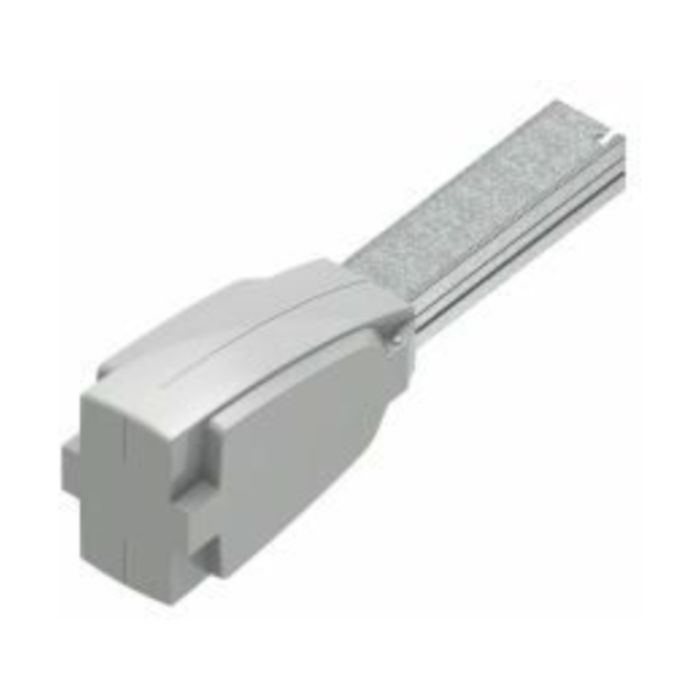

Zucchini 75201003 LB Plus Busbar 25/40A 2/4 Conductor Right Hand End Feed Unit with End Cover
The Zucchini 75201003 LB Plus Busbar is a reliable right-hand end feed unit designed for 25/40A applications. With a robust construction for 2/4 conductors, it ensures efficient power distribution in commercial and industrial settings. Its included end cover provides added protection, making it an ideal choice for safe and organized electrical installations.
- Right hand feed units (reduced dimensions)
- Allow electrical powering of the LB PLUS busbar
- With terminals for the connection of stranded or solid copper wire cables
- Delivered with corresponding cable glands
- Supplied complete with corresponding end cover
- Cable terminal capacity: 6 mm² to 25 mm²
- Max. cable Ø: 32 mm
The Zucchini 75201003 LB Plus Busbar is a robust and efficient power distribution solution designed for industrial and commercial applications. With a current rating of 25/40A and the capability to accommodate 2 or 4 conductors, this right-hand end feed unit ensures reliable and organized electrical connections. Its durable construction is built to withstand the rigors of demanding environments, making it an ideal choice for various setups.
| SKU | ZUCC-75201003 |
|---|---|
| Manufacturer Part Code | 75201003 |
| Colour | Grey |
| Depth (mm) | 85.00 mm |
| Length (mm) | 227.00 mm |
| Width (mm) | 82.00 mm |
| Angle | Straight |
| Is on Sale | No |
| Busbar | Description | Product | Feed Unit | |
| Busbar | Description | Product Type | End RH Fast Fit 2/4 Conductor | |
| Busbar | Description | Qualifier | c/w Cover | |
| Busbar | Dimensions | Angle | Straight | |
| Busbar | Dimensions | Length (EF004265) | 227 mm | |
| Busbar | Features | Conductor Material | Copper | |
| Busbar | Features | Fused | N | |
| Busbar | Features | Hand | Right Hand | |
| Busbar | Features | Ingress Protection (EF005474) | IP55 | |
| Busbar | Features | Number of Sockets | 0 | |
| Busbar | Features | Number of Ways | 1 | |
| Busbar | Features | Rated Operational Voltage | 400 V | |
| Busbar | Features | Use | 2/4 conductor | |
| Busbar | General | Unit Weight | 0.8 kg | |
| Busbar | Technical Data | Current Rating (EF000227) | 25|40 A | |
| Busbar | Technical Data | Rated Operational Frequency | 50|60 Hz |
