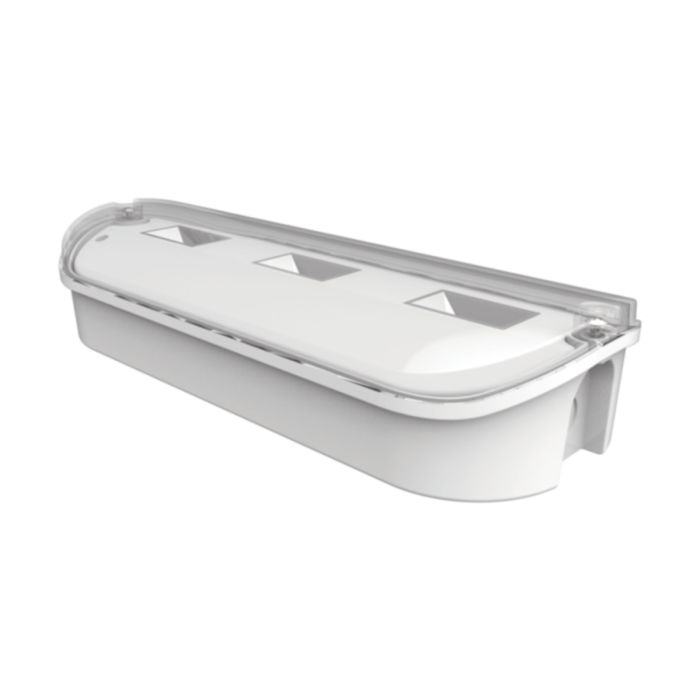

Ansell AOSLED/3M/CS Osprey LED Emergency Exit Surface Bulkhead 3hrM/NM 22W
Modern slim profile LED polycarbonate bulkhead. Compact high polished reflector design to provide required light level from high mounting heights. High performance LED�s and optical performance allows increased spacing ratios. Cold store option incorporates an intelligent integral heat management system to operate in cold store applications down to -30degreesC. Self-test as standard. Aesthetically designed for modern appearance. 20mm side and rear cable entries.
- Compact high polished reflector design to provide required light level from high mounting heights
- High performance LEDs and optical performance allows increased spacing ratios
- Cold store option incorporates an intelligent integral heat management system to operate in cold store applications down to -30°C
- Self-test as standard
- Aesthetically designed for modern appearance
- 20mm side and rear cable entries
Stock available 1-2 Working days
SKU
ANS-AOSLED/3M/CS
£50.14 £60.17
Product Downloads
Product Categories
Related Products
ESP EMTS DUCERI Switch Emergency Lighting Test LED IndicatorsSKU: ESP-EMTS£19.55 £23.46
Stock available 2-3 Working days
ESP EMTSLCD DUCERI Switch Emergency Lighting Test LCD DisplaySKU: ESP-EMTSLCD£31.15 £37.38
Stock available 2-3 Working days
Modern slim profile IP65 LED polycarbonate bulkhead
| SKU | ANS-AOSLED/3M/CS |
|---|---|
| Manufacturer Part Code | AOSLED/3M/CS |
| Warranty | 3 Years |
| Product Range | Osprey |
| Product Finish | Polycarbonate |
| Material | Polycarbonate |
| Colour | White |
| Ingress Protection | IP65 |
| Height (mm) | 69.00 mm |
| Width (mm) | 135.00 mm |
| Length (mm) | 330.00 mm |
| Voltage | 220-240V |
| Wattage | 22W |
| Colour Temperature | 6500K |
| Light Output | 254,559.00 lm |
| LED Driver Included? | Yes |
| Emergency | Yes |
| Emergency Type | Maintained/Non-Maintained |
| Lamp Type | LED Fixed |
| Cover Type | Reflector |
| Cover Included | Yes |
| Is on Sale | No |
| Brand | Osprey | |
| Luminaires | Description | Lamp Type | LED Fixed | |
| Luminaires | Description | Product | Bulkhead | |
| Luminaires | Description | Product Type | High Rack LED Emergency IP65 | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Bulkhead | |
| Luminaires | Dimensions | Width (EF000008) | 135 mm | |
| Luminaires | Features | Cover Included | Y | |
| Luminaires | Features | Cover Type | Reflector | |
| Luminaires | Features | Emergency Type | Maintained/Non-Maintained | |
| Luminaires | Features | Emergency | Y | |
| Luminaires | Features | Ingress Protection (EF005474) | IP65 | |
| Luminaires | Features | Wattage | 22 W | |
| Luminaires | General | CE Approved | Y | |
| Luminaires | General | Warranty | 3 Years | |
| Luminaires | Material & Finish | Housing Colour | White | |
| Luminaires | Material & Finish | Housing Material | Polycarbonate | |
| Luminaires | Technical Data | Colour Temperature | 6500 K | |
| Luminaires | Technical Data | Light Output | 254/559 Lm | |
| Luminaires | Technical Data | Voltage | 220/240 V |
