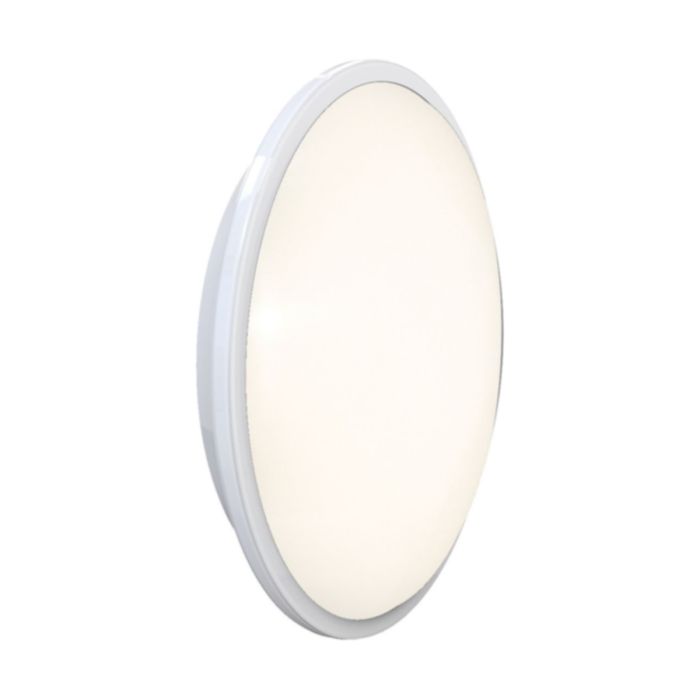

Ansell AECLED/W/CCT Eclipse MultiLED CCT LED Bulkhead White 3000K/4000K/6000K
- One product with integral driver dip-switch
- Internal CCT selector switch allows the installer to choose the CCT between 3000K and 4000K
- Corridor function options available for effective reduction in energy consumption
- Spun aluminium base with dished opal Visiluxe diffuser
- BESA box fixing versatile mounting options
Stock available 1-2 Working days
SKU
ANS-AECLED/W/CCT
£67.21 £80.65
Product Downloads
Product Categories
LED wall/ceiling luminaire with adjustable power and light output option suitable for education and commercial applications and ancillary areas
| SKU | ANS-AECLED/W/CCT |
|---|---|
| Manufacturer Part Code | AECLED/W/CCT |
| Warranty | 5 Years |
| Product Range | Eclipse |
| Product Finish | White |
| Material | Aluminium |
| Colour | White |
| Mounting Position | Ceiling/Wall |
| Ingress Protection | IP20 |
| Height (mm) | 108.00 mm |
| Overall Diameter (mm) | 431.00 mm |
| Voltage | 230V |
| Wattage | 25W, 11W |
| Colour Temperature | 3000K, 6500K |
| Colour Rendering Index | 80 |
| Light Output | 100,000,000,000,000.00 lm |
| Luminous Efficiency | 100,000,000,000,000.00 lm/W |
| LED Driver Included? | Yes |
| Emergency | No |
| Lamp Type | LED Fixed |
| Lamp(s) Included? | Yes |
| Number of Lamps | 1 |
| c/w Photocell? | No |
| PIR Included | No |
| c/w Microwave | No |
| Dimmable | No |
| Fire Rated | No |
| Face Shape | Circular |
| Cover Type | Diffuser |
| Cover Colour | Visiluxe |
| Cover Included | Yes |
| Adjustability | Fixed |
| Self-Contained | No |
| Vandal Resistant | No |
| Corrosion Resistant | No |
| Ballast/Starter Included | No |
| Is on Sale | No |
| Brand | Eclipse | |
| Luminaires | Description | Face Shape | Circular | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Product Type | Eclipse MultiLED CCT | |
| Luminaires | Description | Product | Luminaire | |
| Luminaires | Description | Type | Bulkhead | |
| Luminaires | Dimensions | Overall Diameter | 431 mm | |
| Luminaires | Features | Adjustability | Fixed | |
| Luminaires | Features | Ballast/Starter Included | N | |
| Luminaires | Features | Corrosion Resistant | N | |
| Luminaires | Features | Cover Included | Y | |
| Luminaires | Features | Cover Type | Diffuser | |
| Luminaires | Features | Dimmable | N | |
| Luminaires | Features | Emergency | N | |
| Luminaires | Features | Ingress Protection (EF005474) | IP20 | |
| Luminaires | Features | Lamp(s) Included? | Y | |
| Luminaires | Features | Microwave Sensor Included | N | |
| Luminaires | Features | Number of Lamps | 1 | |
| Luminaires | Features | PIR Included | N | |
| Luminaires | Features | Self-Contained | N | |
| Luminaires | Features | Vandal Resistant | N | |
| Luminaires | Features | Wattage | 11|25 W | |
| Luminaires | General | CE Approved | Y | |
| Luminaires | General | Warranty | 5 Years | |
| Luminaires | Material & Finish | Cover Colour | Visiluxe | |
| Luminaires | Material & Finish | Housing Colour | White | |
| Luminaires | Material & Finish | Housing Material | Aluminium | |
| Luminaires | Technical Data | Light Output | 1165/1454/2700/1193/1493/2846/1202/1491/2762 Lm | |
| Luminaires | Technical Data | Luminous Efficiency | 106/104/108/108/107/114/109/107/110 Lm/W | |
| Luminaires | Technical Data | Voltage | 230 V |
