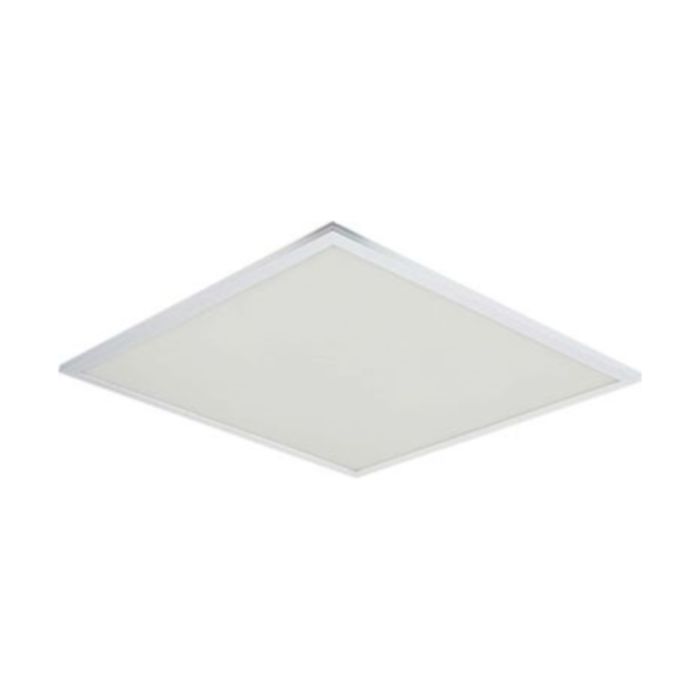

Ansell AERMLED3/60/CW Endurance 3 UGR<19 LED Panel TPa 600x600 4000K 30W

• AERMLED3/60/CW Ugr 19 Low Glare Panel
• High performance maintenance free LED panel
• TPa as standard
• UGR19
• 30W panel outperforms 3x14W T5
• Cool white and warm white options
• White anodised aluminium frame for visual compatibility with ceiling grid
• Low glare and even light distribution for multiple applications
• Panel Pod Self-Test emergency option
• Panel Pod sensor option
• Surface mounting frame option
• Supplied c/w Philips LED driver
• LED lifespan L70 60,000 hours

4000K Neutral White

Kelvins Colour Chart

APPLICATIONS

• - General commercial use Ideal For Large Open Plan Offices

CONSTRUCTION

• - Side-lit design with LEDs housed in frame
• - Two TP(b) rated, UV stable PS diffuser options:
• - Opal - Micro-prismatic for UGR<19 compliant lighting schemes
• - Comes complete with connection block for loop in / loop out, for ease of installation

TECHNICAL DETAILS

• - CRI >80
• - CCT 4000K

OPTIONS

• EMERGENCY Plug-in emergency conversion pack, so any fitting can be converted to emergency later if required. Emergency conversion packs to be ordered separately, as listed below.

SURFACE MOUNTING

• A surface mounting kit is available

SUSPENDED INSTALLATION

• A wire suspension kit is available
